12823174 WEG AC Motors
Part#:12823174
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

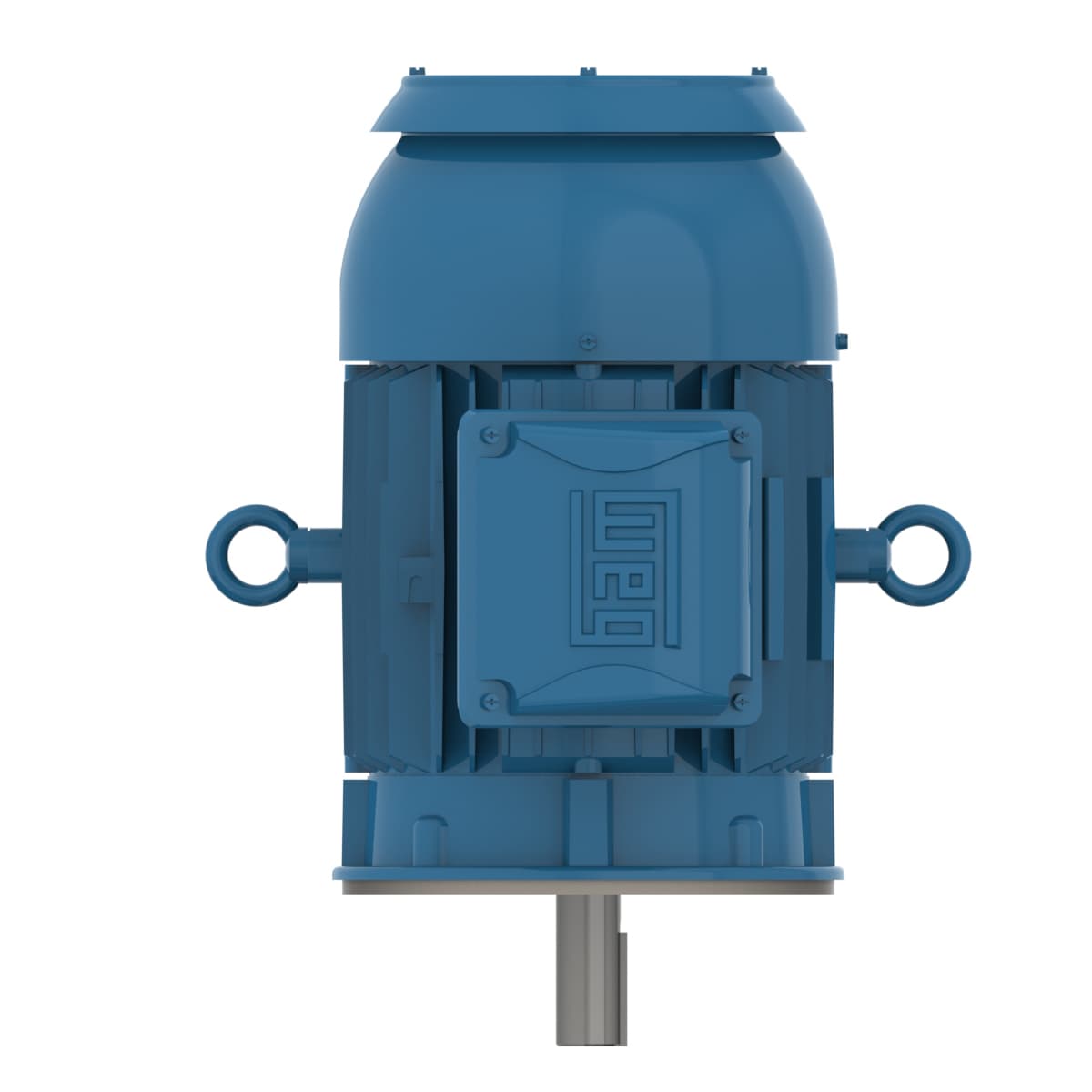

W22 High Efficiency 5 HP 4P 184TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 12823174 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 230/460 V
- Breakdown torque 260 %
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Slip 2.78 %
- Rated torque 15.0 ft.lb
- Insulation Class F
- Standard NEMA MG-1
- Output 5 HP (3.7 kW)
- Design B
- Noise level² 56.0 dB(A)
- Terminal box¹ Left position
- Rated current 13.6/6.80 A
- Locked rotor time 23s (cold) 13s (hot)
- Starting Method Direct On Line
- Enclosure IC411 - TEFC
- Number of Poles 4
- Service factor 1.25
- Mounting W-6
- Frame 184TC
- Moment of inertia (J) 0.3683 sq.ft.lb
- Approx. weight³ 99.1 lb
- L. R. Amperes 95.2/47.6 A
- LRC 7.0x(Code J)
- Altitude 1000 m.a.s.l.
- Output rating 5 HP
- Frequency 60 Hz
- Locked rotor torque 190 %
- Degree of Protection IP55
- Voltage 230/460//380 V
- Rated speed 1750 rpm
- Temperature rise 80 K
- Synchronous speed 1800 rpm
- Flange C
- No load current 7.50/3.75 A
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12823174 Specs
