13218083 WEG AC Motors
Part#:13218083
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

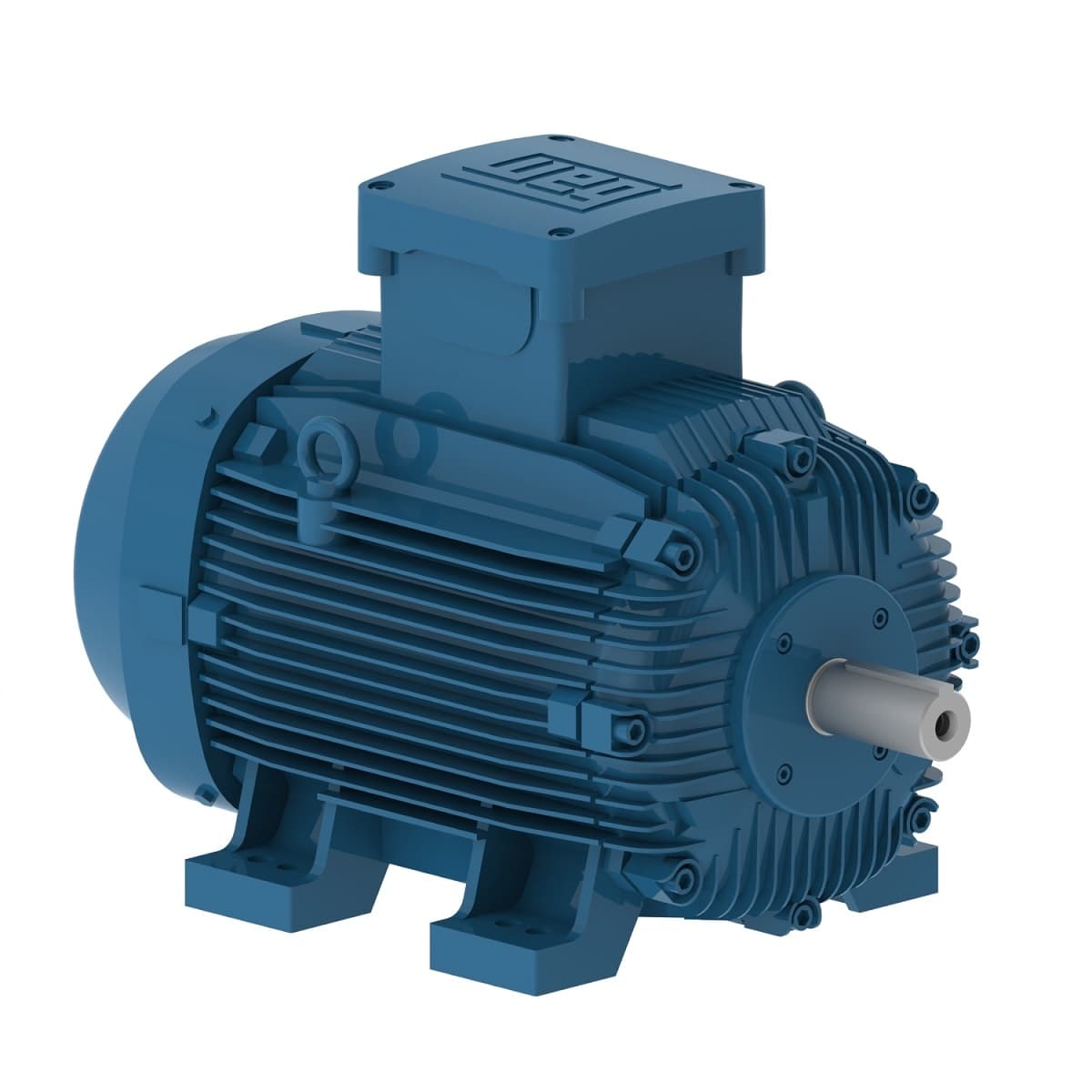

W21 Explosion Proof IE2 45 kW 2P 225S/M 3Ph 380-415/660//440-460 V 50 Hz IC411 - TEFC - B3T
Check out the 13218083 WEG price in the box on the right side or send a quick quote.
Product Details
- L. R. Amperes 682/392 A
- Rated torque 107 ft.lb
- Degree of Protection IP55
- Frequency 50 Hz
- Locked rotor time 32s (cold) 18s (hot)
- Starting Method Direct On Line
- Flange Without
- Rated current 80.2/46.2 A
- No load current 17.0/9.79 A
- Ambient temperature -20°C to +40°C
- Voltage 380-415/660//440-460 V
- Number of poles 2
- Number of Poles 2
- Breakdown torque 270 %
- Temperature rise 80 K
- Standard IEC 60034-1
- Slip 1.17 %
- Design N
- Duty Cycle S1
- Noise level² 82.0 dB(A)
- Terminal box¹ Top
- Rated voltage 380/660 V
- Moment of inertia (J) 9.81 sq.ft.lb
- Insulation Class F
- Approx. weight³ 1004 lb
- Output rating 45 kW
- Frame 225S/M
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 3000 rpm
- LRC 8.5
- Mounting B3T
- Output 45 kW (60 HP)
- Rotation¹ Both (CW and CCW)
- Rated speed 2965 rpm
- Enclosure IC411 - TEFC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 13218083 Specs
