16166521 WEG AC Motors
Part#:16166521
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

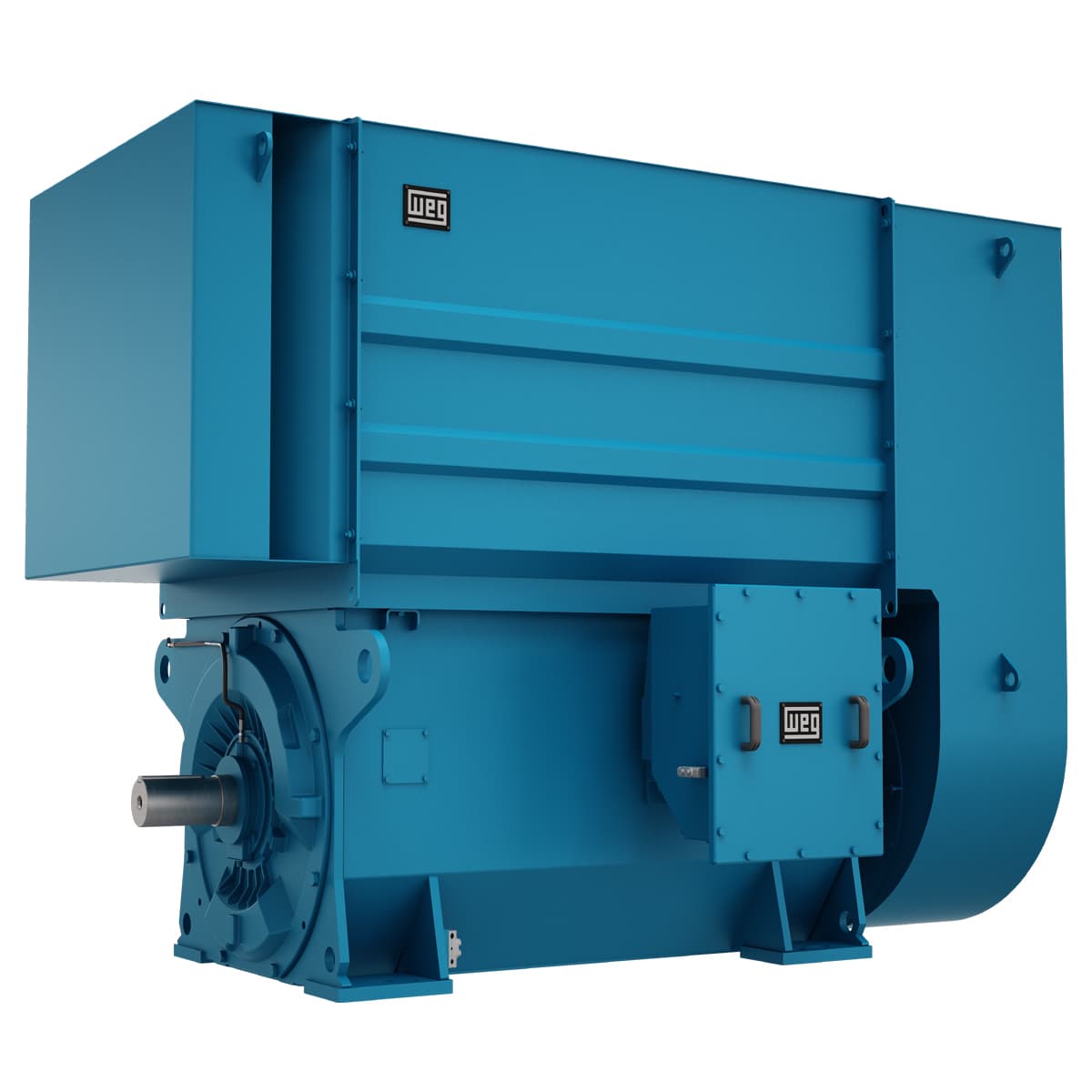

W60 Standard Efficiency 1000 HP 2P 5810/11 3Ph 460 V 60 Hz - Foot-mounted
Check out the 16166521 WEG price in the box on the right side or send a quick quote.
Product Details
- Slip 1.03 %
- Locked rotor torque 80 %
- Approx. weight³ 5689 lb
- Terminal box¹ Left position
- Rated voltage 460 V
- Breakdown torque 240 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Number of Poles 2
- LRC 7.0x(Code H)
- Insulation Class F
- Standard NEMA MG-1
- Flange Without
- Rated current 1137 A
- Moment of inertia (J) 80.7 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Frequency 60 Hz
- Service factor 1.00
- Degree of Protection IP24
- Output rating 1000 HP
- Rated torque 1470 ft.lb
- Rotation¹ CW
- Frame 5810/11
- No load current 225 A
- Mounting F-1
- Voltage 460 V
- Output 1000 HP (750 kW)
- Temperature rise 80 K
- Noise level² 85.0 dB(A)
- Rated speed 3563 rpm
- Duty Cycle Cont.(S1)
- Number of poles 2
- L. R. Amperes 7959 A
- Locked rotor time 19s (cold) 11s (hot)
- Starting Method Direct On Line
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
