20018ET3G504-W22 WEG AC Motors
Part#:20018ET3G504-W22
Manufacturer:WEG
Alt. Part#:7894171278589
Product Lifecycle:Active
Get a quick Quote!

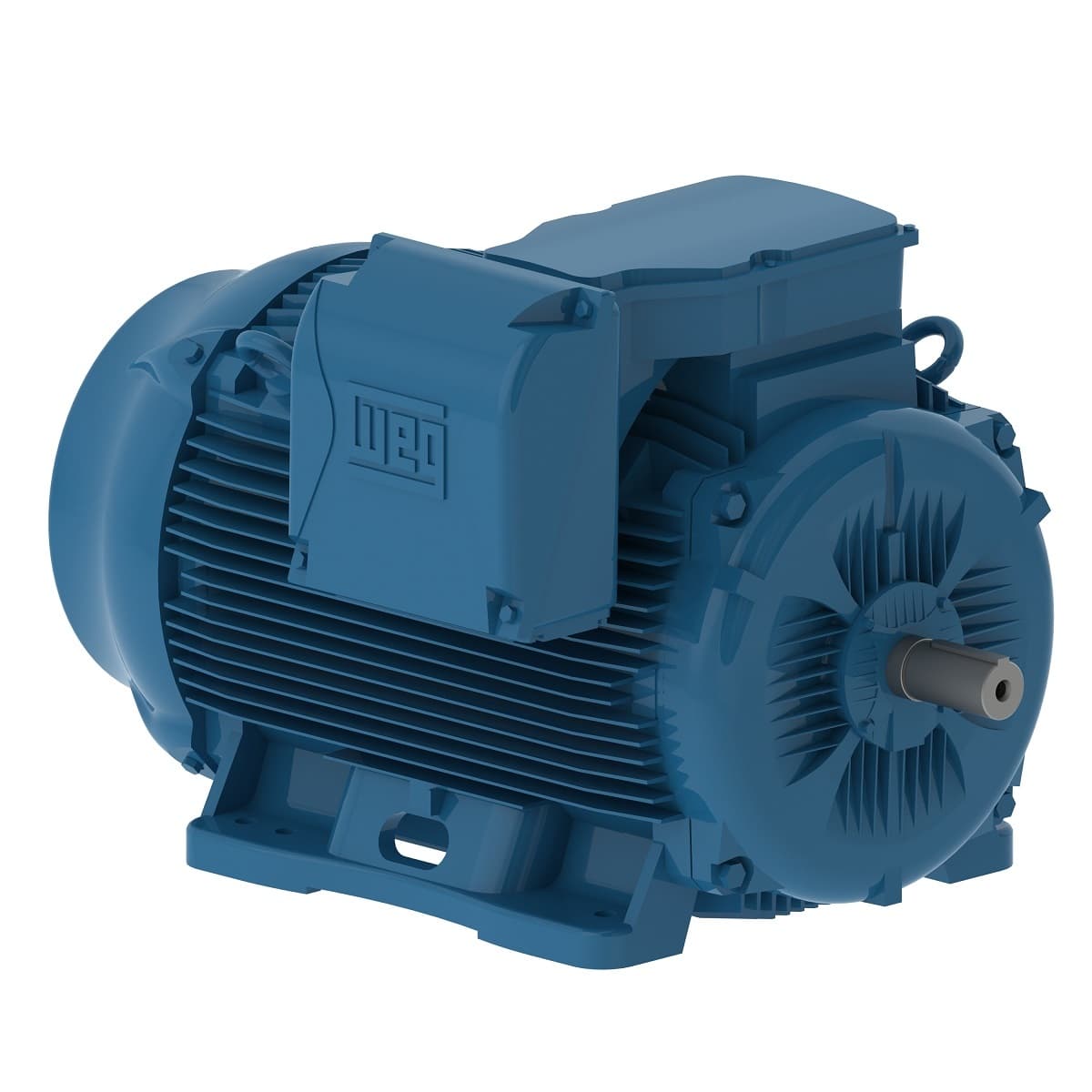

W22 NEMA Premium Efficiency 200 HP 4P 504/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 20018ET3G504-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating200 HP
- Rated Speed1788 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Output 200 HP (150 kW)
- Service factor 1.15
- Output rating 200 HP
- L. R. Amperes 1436 A
- Locked rotor time 39s (cold) 22s (hot)
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Number of Poles 4
- Rated torque 587 ft.lb
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- LRC 6.3x(Code G)
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Slip 0.67 %
- Locked rotor torque 229 %
- Temperature rise 80 K
- Number of poles 4
- Rated current 228 A
- Design B
- Enclosure IC411 - TEFC
- Rated speed 1788 rpm
- Breakdown torque 229 %
- Mounting F-1
- Flange Without
- Rated voltage 460 V
- No load current 65.0 A
- Altitude 1000 m.a.s.l.
- Approx. weight³ 2444 lb
- Frame 504/5T
- Insulation Class F
- Starting Method Direct On Line
- Voltage 460 V
- Frequency 60 Hz
- Moment of inertia (J) 76.2 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Noise level² 75.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 20018ET3G504-W22 Specs
