20036OT3G444TS-RFVFD WEG AC Motors
Part#:20036OT3G444TS-RFVFD
Manufacturer:WEG
Alt. Part#:7909836061977
Product Lifecycle:Active
Get a quick Quote!

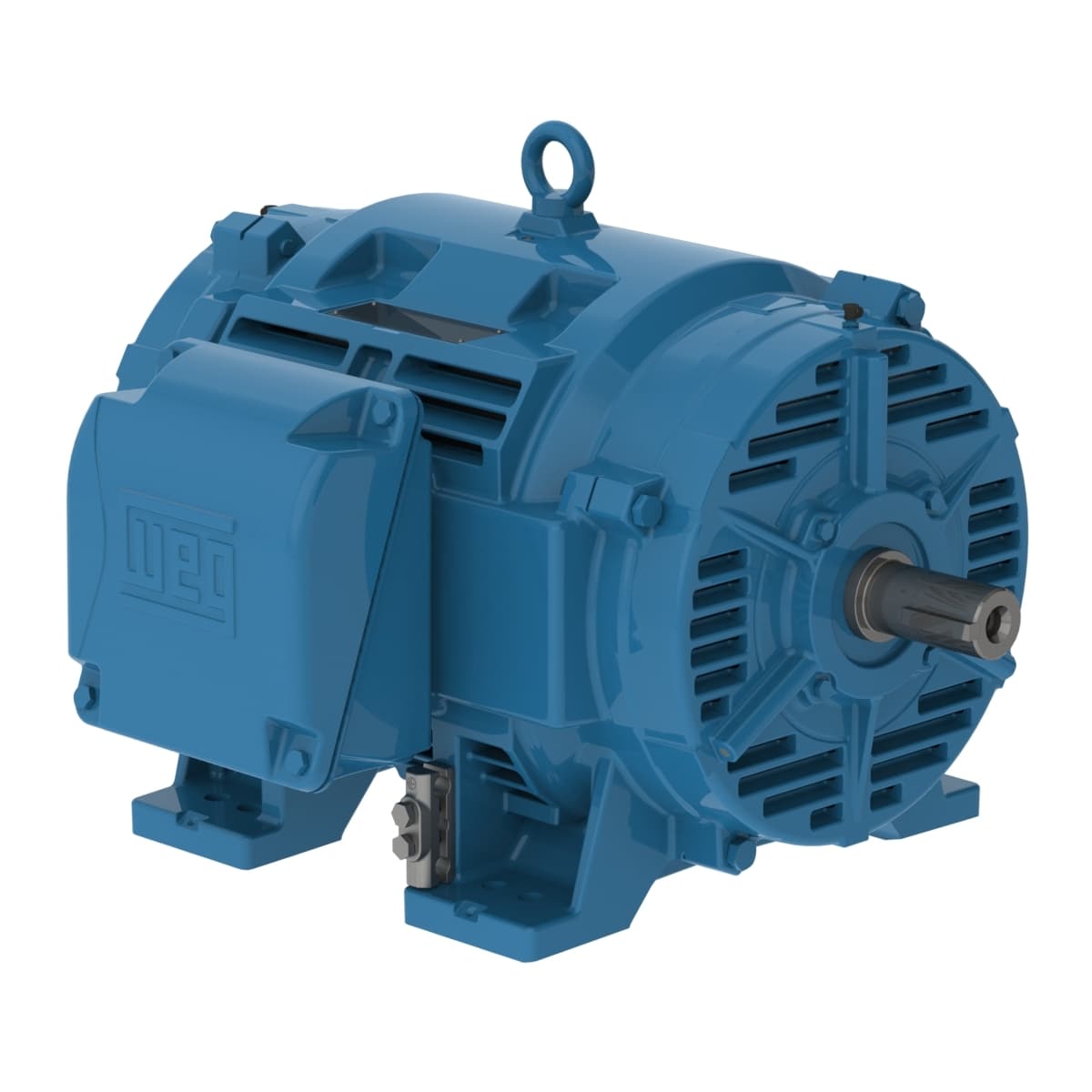

W40 NEMA Premium Efficiency 200 HP 2P 444/5TS 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 20036OT3G444TS-RFVFD WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating200 HP
- Rated Speed2970 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Frequency 50 Hz
- Locked rotor torque 200 %
- Enclosure IC01 - ODP
- Slip 1.00 %
- Moment of inertia (J) 28.5 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- LRC 7.5x(Code H)
- Insulation Class F
- Mounting F-1
- Number of Poles 2
- Rated torque 354 ft.lb
- Starting Method VFD
- Number of poles 2
- No load current 76.0 A
- Temperature rise 105 K
- Approx. weight³ 1535 lb
- L. R. Amperes 2093 A
- Frame 444/5TS
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated voltage 380 V
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Rated current 279 A
- Locked rotor time 52s (cold) 29s (hot)
- Noise level² 85.0 dB(A)
- Rated speed 2970 rpm
- Design A
- Degree of Protection IP23
- Output rating 200 HP
- Output 200 HP (150 kW)
- Breakdown torque 250 %
- Altitude 1000 m.a.s.l.
- Flange Without
- Voltage 460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 20036OT3G444TS-RFVFD Specs
1-year warranty
