25018ET3G447TSC-W22 WEG AC Motors
Part#:25018ET3G447TSC-W22
Manufacturer:WEG
Alt. Part#:7909018881935
Product Lifecycle:Active
Get a quick Quote!

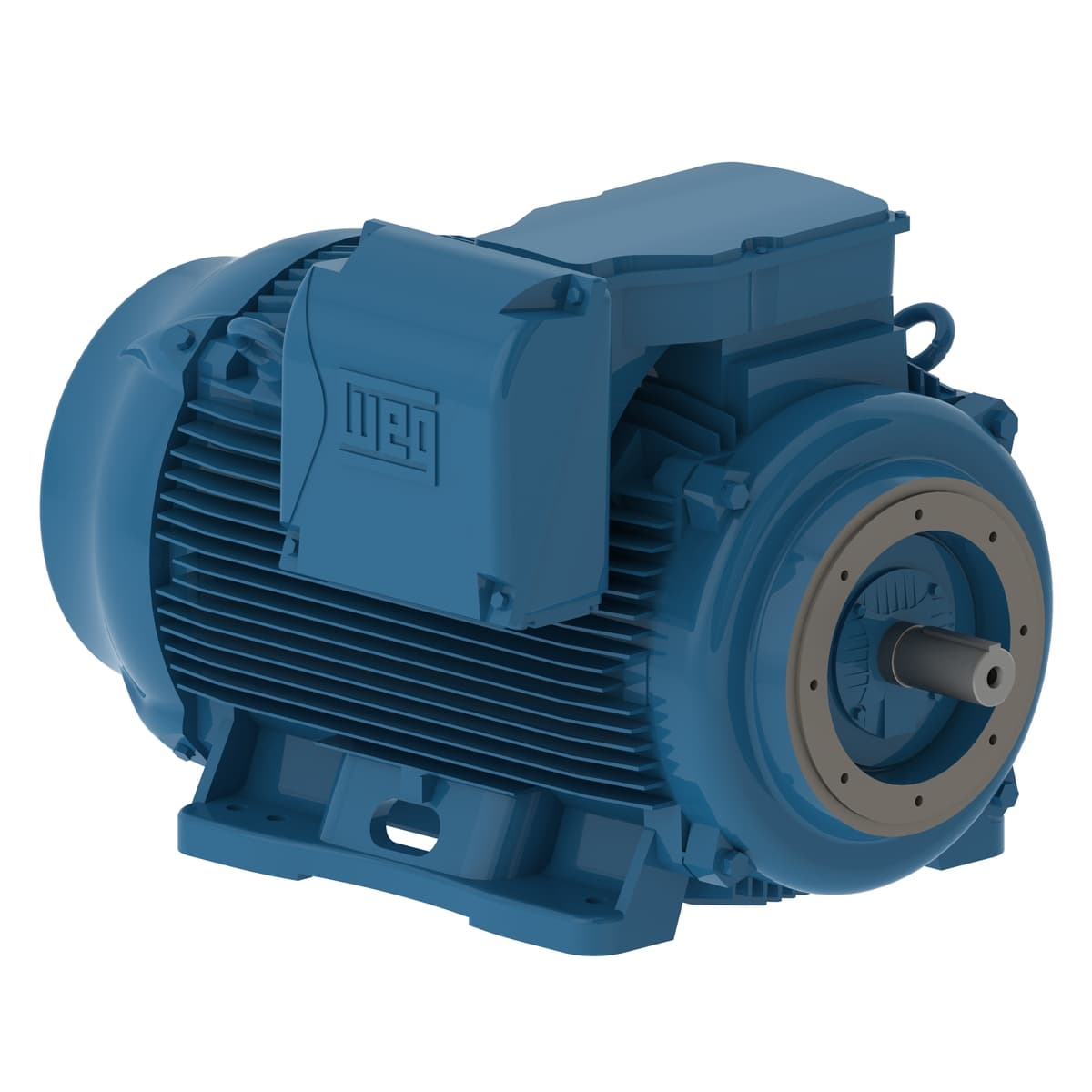

W22 NEMA Premium Efficiency 250 HP 4P 445/7TSC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 25018ET3G447TSC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeC
- Rated voltage 460 V
- Service factor 1.15
- Number of Poles 4
- Rated torque 738 ft.lb
- Starting Method Direct On Line
- Mounting F-1
- Terminal box¹ Left position
- Frequency 60 Hz
- Design B
- Noise level² 73.0 dB(A)
- Output rating 250 HP
- Locked rotor torque 229 %
- Temperature rise 80 K
- Synchronous speed 1800 rpm
- Rated speed 1780 rpm
- LRC 6.5x(Code G)
- Duty Cycle Cont.(S1)
- Voltage 460 V
- Frame 445/7TSC
- Breakdown torque 240 %
- Ambient temperature -20°C to +40°C
- Number of poles 4
- L. R. Amperes 1827 A
- Locked rotor time 27s (cold) 15s (hot)
- Approx. weight³ 2562 lb
- Slip 1.11 %
- No load current 90.0 A
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Rated current 281 A
- Insulation Class F
- Enclosure IC411 - TEFC
- Output 250 HP (185 kW)
- Moment of inertia (J) 89.6 sq.ft.lb
- Degree of Protection IP55
- Rotation¹ Both (CW and CCW)
- Flange C
