25036OT3H445TS-W40 WEG AC Motors
Part#:25036OT3H445TS-W40
Manufacturer:WEG
Alt. Part#:7909323907009
Product Lifecycle:Active
Get a quick Quote!

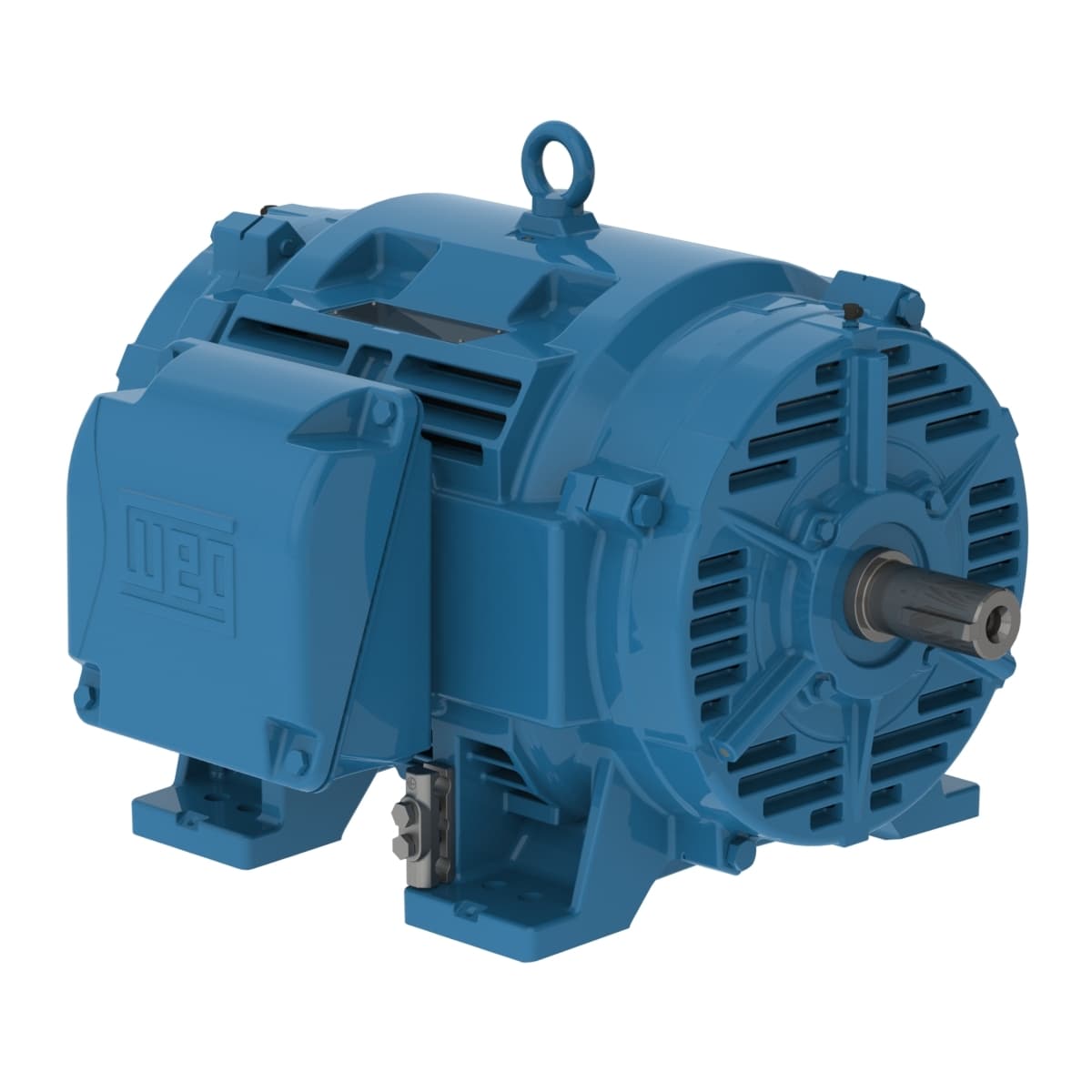

W40 NEMA Premium Efficiency 250 HP 2P 444/5TS 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 25036OT3H445TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed3570 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Rated speed 3570 rpm
- Frequency 60 Hz
- Locked rotor torque 150 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 1376 lb
- Rated current 222 A
- Rated torque 368 ft.lb
- Service factor 1.15
- Enclosure IC01 - ODP
- Synchronous speed 3600 rpm
- Frame 444/5TS
- Ambient temperature -20°C to +40°C
- Noise level² 85.0 dB(A)
- Terminal box¹ Left position
- LRC 6.7x(Code G)
- Starting Method Direct On Line
- Output rating 250 HP
- Number of Poles 2
- Moment of inertia (J) 26.9 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Flange Without
- Locked rotor time 28s (cold) 16s (hot)
- Temperature rise 80 K
- Voltage 575 V
- Rated voltage 575 V
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Output 250 HP (185 kW)
- Breakdown torque 229 %
- Mounting F-1
- Number of poles 2
- L. R. Amperes 1490 A
- Design B
- Degree of Protection IP23
- Slip 0.83 %
- No load current 57.6 A
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 25036OT3H445TS-W40 Specs
