30012ET3G586/7-W22 WEG AC Motors
Part#:30012ET3G586/7-W22
Manufacturer:WEG
Alt. Part#:7891327429086
Product Lifecycle:Active
Get a quick Quote!

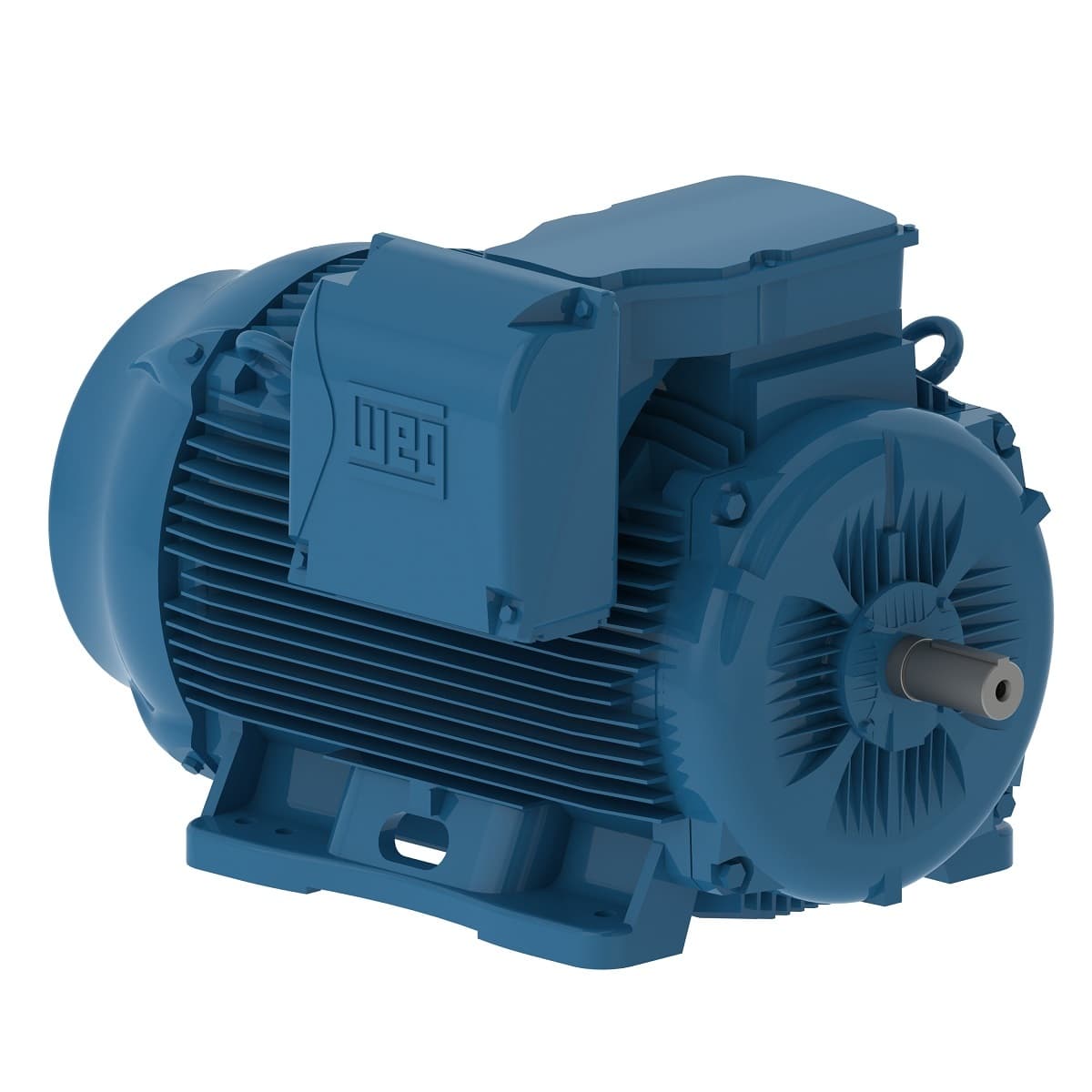

W22 NEMA Premium Efficiency 300 HP 6P 586/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 30012ET3G586/7-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed1193 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- Output 300 HP (220 kW)
- Breakdown torque 250 %
- Enclosure IC411 - TEFC
- Synchronous speed 1200 rpm
- Slip 0.58 %
- Rated current 374 A
- LRC 6.0x(Code G)
- Service factor 1.15
- Locked rotor time 54s (cold) 30s (hot)
- Approx. weight³ 3625 lb
- Altitude 1000 m.a.s.l.
- Frequency 60 Hz
- Moment of inertia (J) 277 sq.ft.lb
- Terminal box¹ Left position
- Standard NEMA MG-1
- Rated torque 1320 ft.lb
- Noise level² 77.0 dB(A)
- Rated speed 1193 rpm
- Insulation Class F
- Temperature rise 80 K
- Frame 586/7T
- Mounting F-1
- Number of Poles 6
- Design B
- Duty Cycle Cont.(S1)
- Voltage 460 V
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Locked rotor torque 210 %
- Output rating 300 HP
- Rated voltage 460 V
- Degree of Protection IP55
- Rotation¹ Both (CW and CCW)
- Number of poles 6
- No load current 181 A
- L. R. Amperes 2244 A
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 30012ET3G586/7-W22 Specs
