30012OT3G447/9T-W40 WEG AC Motors
Part#:30012OT3G447/9T-W40
Manufacturer:WEG
Alt. Part#:7909322548647
Product Lifecycle:Active
Get a quick Quote!

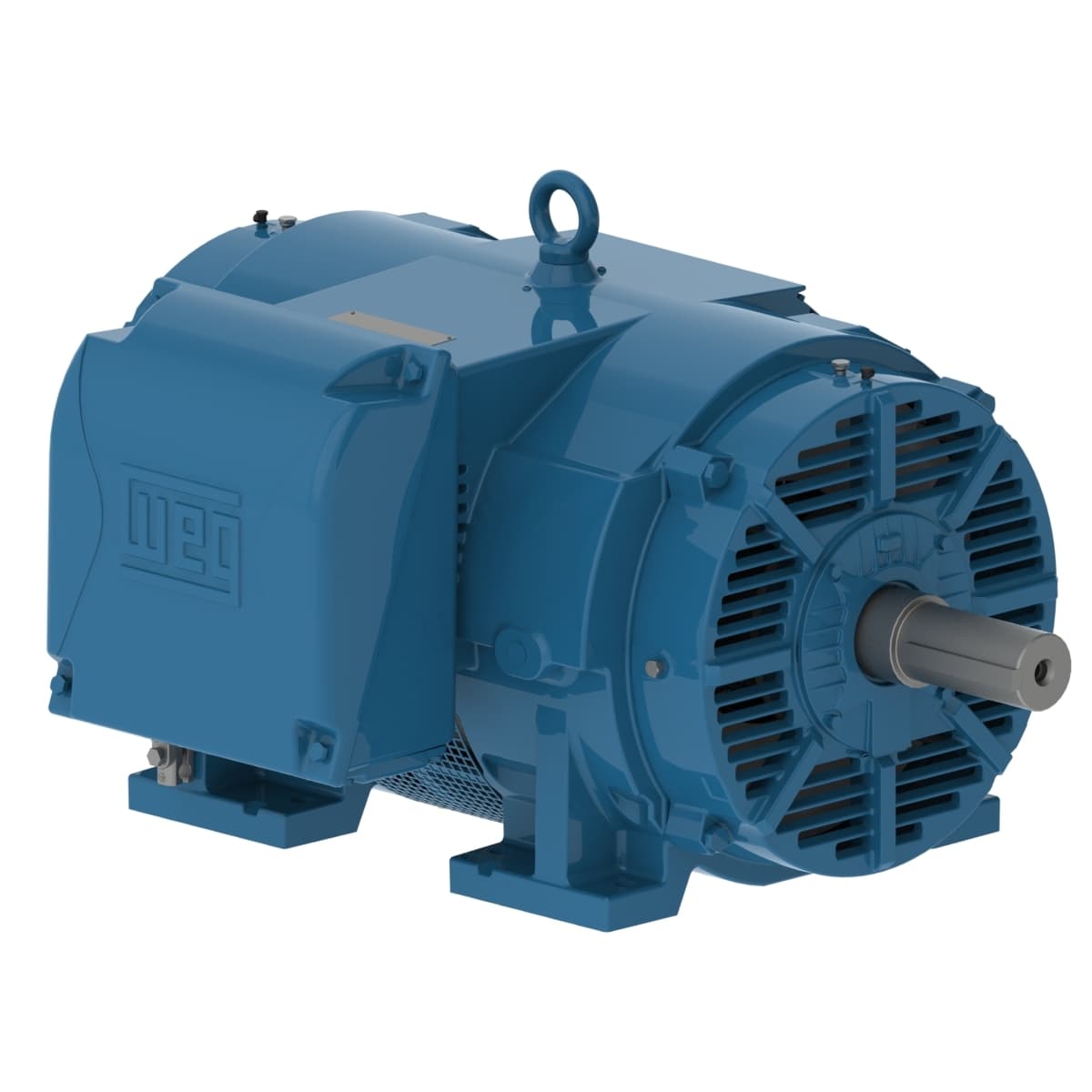

W40 NEMA Premium Efficiency 300 HP 6P 447/9T 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 30012OT3G447/9T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed1190 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- No load current 174 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 2370 lb
- Frame 447/9T
- Rated speed 1190 rpm
- Moment of inertia (J) 131 sq.ft.lb
- Noise level² 79.0 dB(A)
- Rated voltage 460 V
- Breakdown torque 280 %
- Altitude 1000 m.a.s.l.
- Output rating 300 HP
- L. R. Amperes 2446 A
- Design A
- Enclosure IC01 - ODP
- Synchronous speed 1200 rpm
- Rated current 365 A
- Locked rotor time 32s (cold) 18s (hot)
- Standard NEMA MG-1
- Flange Without
- Output 300 HP (220 kW)
- Temperature rise 105 K
- Mounting F-1
- Number of Poles 6
- Locked rotor torque 240 %
- Starting Method Direct On Line
- Number of poles 6
- LRC 6.7x(Code H)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Frequency 60 Hz
- Rated torque 1320 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 460 V
- Slip 0.83 %
- Service factor 1.00
- Degree of Protection IP23
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 30012OT3G447/9T-W40 Specs
