35036OP3HFP447/9TSW4 WEG AC Motors
Part#:35036OP3HFP447/9TSW4
Manufacturer:WEG
Alt. Part#:7909492022534
Product Lifecycle:Active
Get a quick Quote!

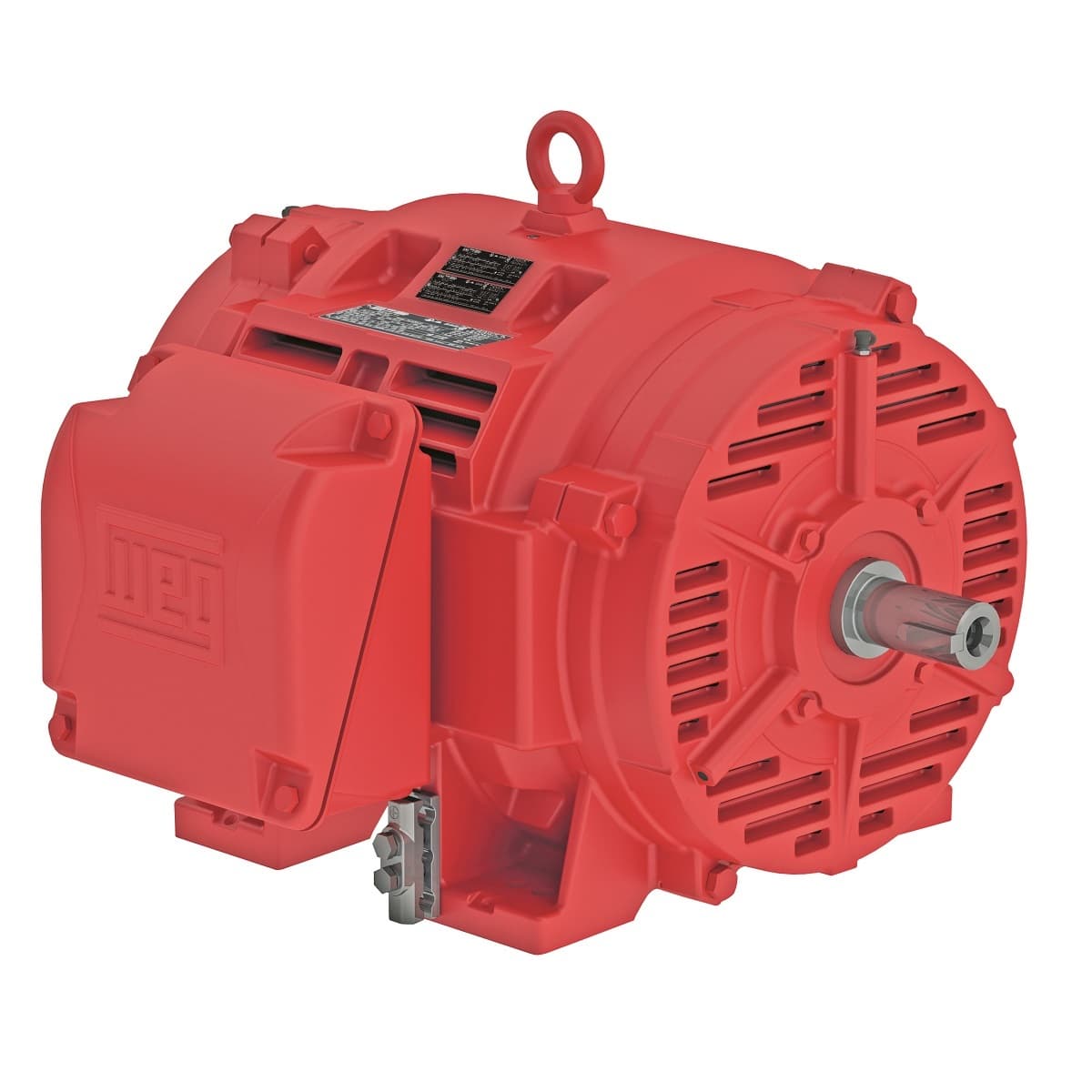

W40 High Efficiency 350 HP 2P 447/9TS 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 35036OP3HFP447/9TSW4 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating350 HP
- Rated Speed3565 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Number of Poles 2
- Locked rotor time 25s (cold) 14s (hot)
- Approx. weight³ 1874 lb
- Terminal box¹ Left position
- Rated speed 3565 rpm
- Breakdown torque 250 %
- Degree of Protection IP23
- Standard NEMA MG-1
- Slip 0.97 %
- Design B
- Starting Method Direct On Line
- Number of poles 2
- Output rating 350 HP
- L. R. Amperes 2007 A
- Rated torque 516 ft.lb
- Locked rotor torque 170 %
- Altitude 1000 m.a.s.l.
- Rated voltage 575 V
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- No load current 70.4 A
- Mounting F-1
- Output 350 HP (260 kW)
- Temperature rise 80 K
- Voltage 575 V
- Flange Without
- Rated current 309 A
- Service factor 1.15
- Enclosure IC01 - ODP
- Frame 447/9TS
- Moment of inertia (J) 35.7 sq.ft.lb
- Insulation Class F
- Noise level² 85.0 dB(A)
- LRC 6.5x(Code G)
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 35036OP3HFP447/9TSW4 Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of WEG
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
WEG Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many WEG Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from WEG, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
