CL50XRXAOS4IPQ Banner Electronic Components

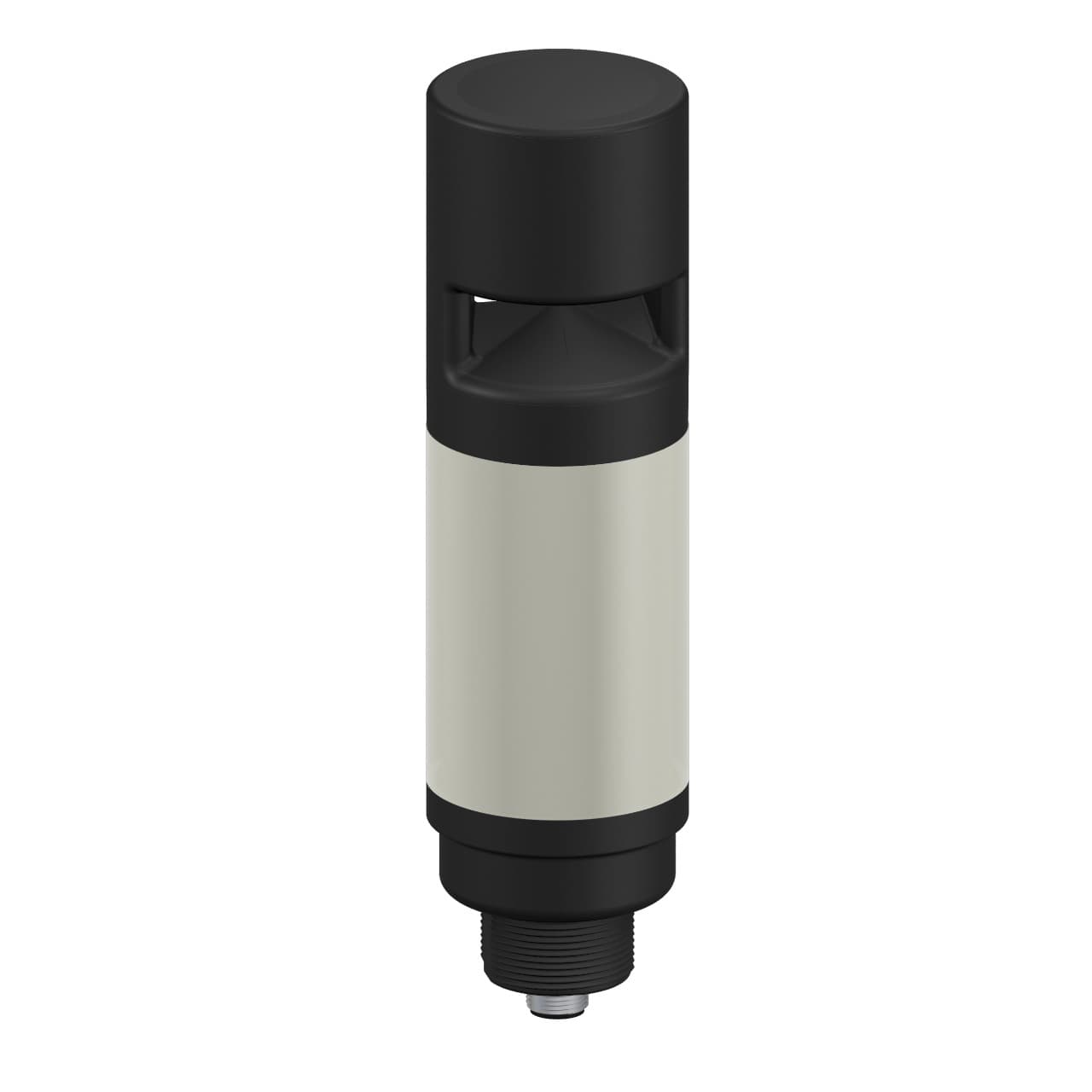

Banner CL50XRXAOS4IPQ Banner Engineering CL50XRXAOS4IPQ is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -20°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates 1 x digital input for color control and 1 x digital input for alarm input, both supporting 18-30Vdc PNP. The CL50XRXAOS4IPQ provides a sealed omni-directional audible column light with a staccato sound, whose intensity can be adjusted, and features 1-tier 1-color Red LED illumination. It comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity and operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The beacon has a diameter of 50mm / 2" and comes in a black housing.
Banner

Part#:CL50XRXAOS4IPQ

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering CL50XRXAOS4IPQ is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -20°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates 1 x digital input for color control and 1 x digital input for alarm input, both supporting 18-30Vdc PNP. The CL50XRXAOS4IPQ provides a sealed omni-directional audible column light with a staccato sound, whose intensity can be adjusted, and features 1-tier 1-color Red LED illumination. It comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity and operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The beacon has a diameter of 50mm / 2" and comes in a black housing.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CL50XRXAOS4IPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Power
    DC
  • Color Option 1
    Red
  • Max Audible Intensity (db at 1m)
    99
  • Environmental Rating
    IP67
  • Feature: Quick Disconnect
    Yes
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type
    M12 (Euro)
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 182.2
  • Product Size (mm)
    50
  • Audible Alarm Type
    Adjustable Staccato
  • Primary Housing Color
    Black
  • Wireless
    No
  • Power Source
    DC
  • Animation Option 1
    Solid On
  • Max Current - Audible Alarm (mA)
    45
  • Max Op. Temperature (°C)
    50
  • Primary Housing Material
    ABS/Polycarbonate
  • Supply Voltage
    18-30 V dc
  • Feature: Audible
    Yes
  • Modbus RTU
    No
  • Indication
    Yes
  • Connection
    Integral QD
  • Input Type
    PNP
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Pro-Editor Compatible (Discrete)
    No
  • Housing Style
    Base Mount - Tower
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    100
  • Min Op. Temperature (°C)
    -20
  • Mounting Thread
    M30 x 1.5
  • Color 1 - Wavelength/Color Temp/Coordinates
    625 nm
  • Max Input Response Time (ms)
    10
  • Feature: Hazardous Area
    No
  • Number of Input Pins/Conductors
    5
  • Primary Window Material
    Polycarbonate Diffused
  • Number of Colors / Segments
    1
  • Lumens Color 1
    38.0
  • Audible Operating Frequency (kHz)
    2.1
  • NEMA Type and UL Type Rating
    NEMA and UL 13
  • IO Link
    No
  • Feature: Chemical Resistant
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents CL50XRXAOS4IPQ Specs

CL50XRXAOS4IPQ CL50 Column Light -- Datasheet-1630953756775.pdf
CL50XRXAOS4IPQ CL50 QD SEALED OMNIDIRECTIONAL AUDIBLE-1630953756772.stp
CL50XRXAOS4IPQ CL50 QD SEALED OMNIDIRECTIONAL AUDIBLE-1630953756774.pdf
