CL50ZGB Banner Electronic Components
Part#:CL50ZGB
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

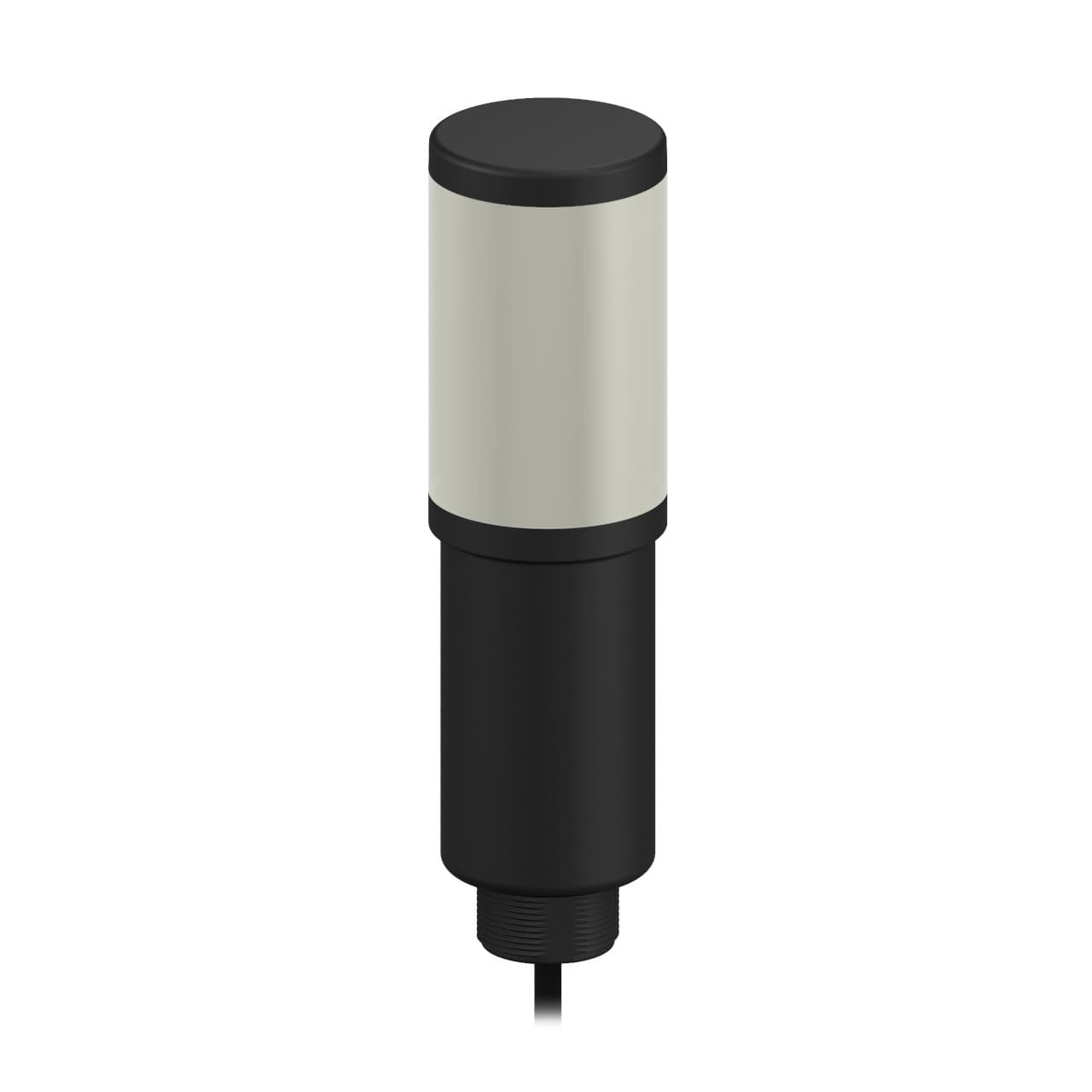

Column Light: 2-Color Indicator, Voltage: 100-240 V ac; Environ. Rating: IP67, Colors: Green Blue, 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50ZGB Banner price in the box on the right side or send a quick quote.
Product Details
- Wireless No
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 2
- Lumens Color 1 72.0
- Supply Voltage 100-240 V ac
- Primary Window Material Polycarbonate Diffused
- Housing Style Base Mount - Tower
- Cable Length (m) 0.15
- Product Size (mm) 50
- Color Option 2 Blue
- Max Input Response Time (ms) 500
- NEMA Type and UL Type Rating NEMA and UL 13
- Power Source AC
- Animation Option 1 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 475 nm
- Min Op. Temperature (°C) -40
- IO Link No
- Primary Housing Material ABS/Polycarbonate
- Color Option 1 Green
- Max Current Color (mA) 60
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Quick Disconnect No
- Mounting Thread M30 x 1.5
- Color Technology Standard LED
- Animation Option 2 Solid On
- Input Type AC
- Max Op. Temperature (°C) 50
- Power AC
- Lumens Color 2 28.0
- Environmental Rating IP67
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 183.2
- Multi-Color Device Single Color On
- Indication Yes
- Connection Cable
- Number of Input Pins/Conductors 4
- Feature: Hazardous Area No
- Primary Housing Color Black
- Feature: Audible No
