DX80N9Q45BL-RYGB Banner Proximity Sensors
Part#:DX80N9Q45BL-RYGB
Manufacturer:Banner
Alt. Part#:97803
Product Lifecycle:Active
Get a quick Quote!
Wireless Q45 Sensor; Button & Light 900 MHz 1 W; Red Yellow Green and Blue LEDs
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9Q45BL-RYGB Banner price in the box on the right side or send a quick quote.
Product Details
- Weight272.1552 g
- Country Of OriginUS
- Device Type Push Button
- Discrete Inputs Yes
- Input Details One Button
- Housing Style Integrated Battery
- Power Battery
- Input/Output Discrete
- Output Details Light
- Max Temp Operating Conditions 70
- Environmental Rating (IP) IP67
- Max Operating Temperature ( °C) 70
- Ships With Battery Yes
- Power Supply 2 AA Batteries
- Min Temp Operating Conditions -40
- Min Operating Temperature ( °C) -40
- Tree Topology No
- Wireless Yes
- Application: Indicator Light Yes
- 1-wire Serial Interface No
- Star Topology Yes
- RS-232 No
- Relative Humidity 90% at 50° C
- EtherNet/IP No
- Environmental Rating (NEMA) NEMA 6P
- Feature: Hazardous Area No
- Point-to-Multipoint Topology Yes
- Modbus/TCP No
- Point-to-Point Topology Yes
- PROFINET No
- Wireless Radio Frequency 900 MHz
- Modbus RTU No
- RS-485 No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N9Q45BL-RYGB Description

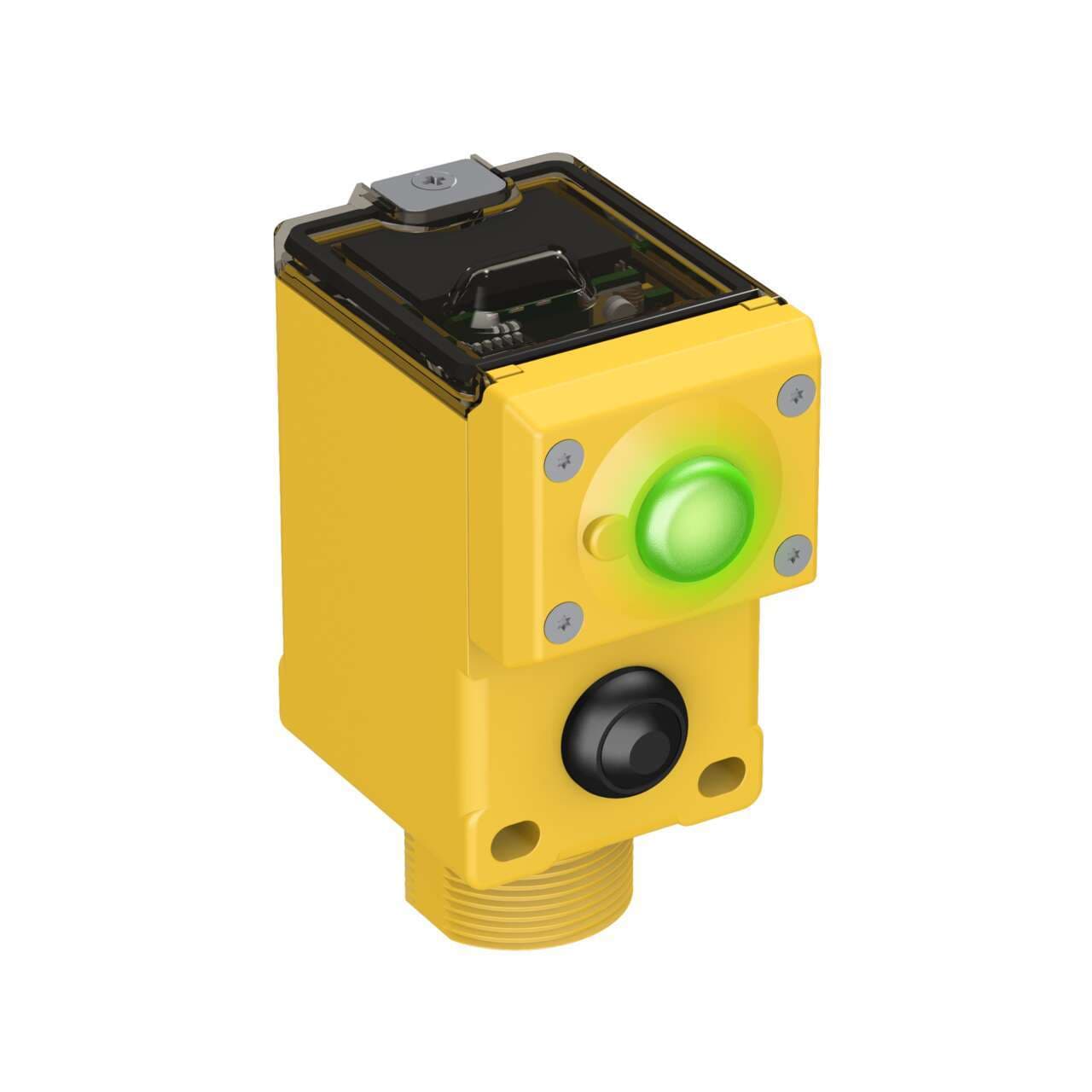

Banner Engineering DX80N9Q45BL-RYGB is a push-button device from the SureCross Q45 series, featuring a round flush button design with a 4-color LED utilizing Frequency Hopping Spread Spectrum (FHSS) technology. It is constructed with a moulded reinforced thermoplastic polyester housing, an o-ring sealed transparent cover, a moulded acrylic lens, and stainless steel hardware, ensuring durability. This device operates within an ambient air temperature range of -40 to +70°C and offers a high degree of protection rated at IP67 and NEMA 6P, suitable for challenging environments. It has dimensions of H97.2mm x W44.5mm x D68.9mm and comes in a yellow housing with a black button. The DX80N9Q45BL-RYGB features a visual position indicator with red/green LED for radio status and red/yellow/green/blue LEDs for discrete outputs. It operates on a 3.6Vdc internal battery and communicates over a 900MHz ISM band with a 1W power output, capable of a maximum transmission distance of 3.2km at nominal emission power. The device is mounted via a 1/2" NPT thread and is designed for push-button functions with light colors in red, yellow, green, and blue.
Related documents DX80N9Q45BL-RYGB Specs
