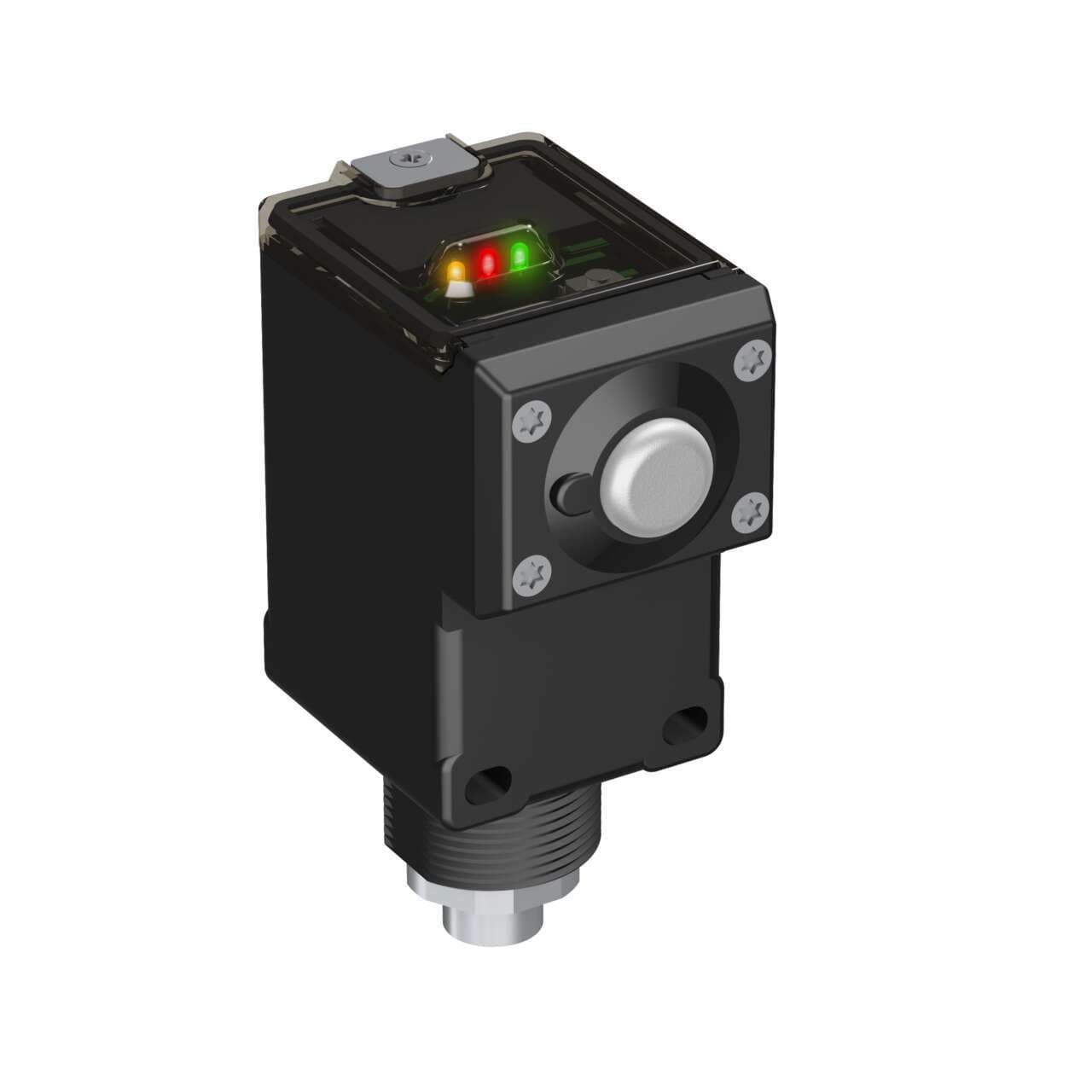

DX80N9Q45VT Banner Proximity Sensors

Banner DX80N9Q45VT Wireless Q45 Vibration and Temperature Node; With 1-Wire Serial Interface 900 MHz 1 W; Vibration and Temperature Sensor Sold Separately
Banner

Part#:DX80N9Q45VT

Manufacturer:Banner

Alt. Part#:97146

Product Lifecycle:Active

In-stock parts: 5

Nov 5, 2025

Wireless Q45 Vibration and Temperature Node; With 1-Wire Serial Interface 900 MHz 1 W; Vibration and Temperature Sensor Sold Separately

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80N9Q45VT Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight226.796 g
  • Country Of OriginUS
  • Environmental Rating (NEMA)
    NEMA 6P
  • Max Operating Temperature ( °C)
    70
  • Application: Temperature Input
    Yes
  • RS-232
    No
  • Input/Output
    Serial
  • Min Operating Temperature ( °C)
    -40
  • Application: Indicator Light
    Yes
  • Device Type
    Node
  • Star Topology
    Yes
  • Modbus/TCP
    No
  • Power
    Battery
  • Max Temp Operating Conditions
    70
  • Feature: Hazardous Area
    No
  • Wireless Radio Frequency
    900 MHz
  • Environmental Rating (IP)
    IP67
  • Point-to-Multipoint Topology
    Yes
  • EtherNet/IP
    No
  • Discrete Outputs
    Yes
  • Ships With Battery
    Yes
  • Tree Topology
    No
  • PROFINET
    No
  • Housing Style
    Integrated Battery
  • Min Temp Operating Conditions
    -40
  • Application: Vibration Sensor Input
    Yes
  • Power Supply
    2 AA Batteries
  • Point-to-Point Topology
    Yes
  • Wireless
    Yes
  • Output Details
    Light
  • Relative Humidity
    90% at 50° C
  • Modbus RTU
    No
  • 1-wire Serial Interface
    Yes
  • RS-485
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

DX80N9Q45VT Description

Banner Engineering DX80N9Q45VT is a sensor designed for temperature measurement with a mounting mode of M30 threaded mount. It features a polyester housing, polycarbonate cover, acrylic lens, and stainless steel hardware, ensuring a degree of protection rated at IP67 and NEMA 6. This rectangular-shaped sensor is part of the Q45VT series, specifically designed for vibration and temperature control. It includes 1 x digital output (DIP switch) and operates within a -40 to +70°C measurement range. The DX80N9Q45VT is pre-equipped with a 5-pin Euro-style QD M12 connector for connectivity and uses the Modbus communication protocol. Its functions include a 900MHz ISM band 1W wireless battery-powered node for vibration and temperature sensing, with a transmission frequency of 900MHz.

Related documents DX80N9Q45VT Specs

DX80N9Q45VT 190931.pdf

This item can ship within 24h!

1-year warranty

$430.92

Stock:

5

Select Qty:

$430.92

$430.92 each
