OS80K2MX1BRQ Banner Pilot Devices Accessories
Part#:OS80K2MX1BRQ
Manufacturer:Banner
Alt. Part#:807069
Product Lifecycle:Active
Get a quick Quote!

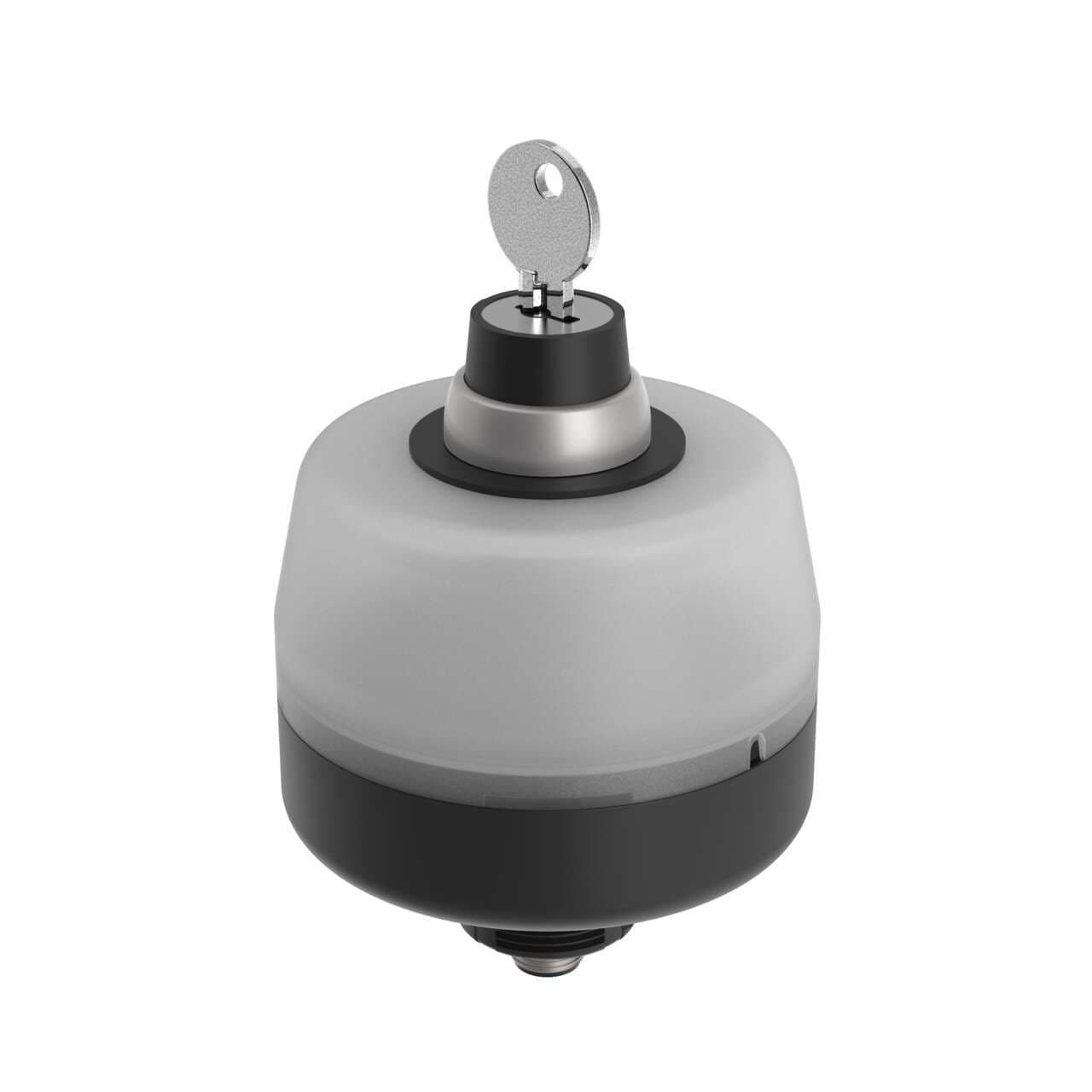

OS80 Operator Station: Key Switch; 2-Position; Momentary-Off; 2-Color; Voltage: 12-30 V dc; Housing: Polycarbonate; IP40; Output: PNP 1 NO; Colors: Blue Red; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pilot Devices Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the OS80K2MX1BRQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight340.194 g
- Country Of OriginUS
- Activation Function Key Operated Selector Switch
- Quick Disconnect Type M12 (Euro)
- I/O Block Compatible Yes
- Storage Temp (°C) -40 to 70
- IO Link No
- Primary Housing Material Polycarbonate
- Color Option 2 Red
- Max Output Response Time (ms) 50
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Supply Voltage 12-30 V dc
- Max Op. Temperature (°C) 55
- Secondary Material Polyamide
- Number of Colors / Segments 2
- Color 2 - Wavelength/Color Temp/Coordinates 620 nm
- Button Operation Momentary
- Wireless No
- Power DC
- Product Size (mm) 80
- Max Current Color (mA) 135
- Physical Dimensions (LxWxH or DxH mm) 80.0 x 106.6
- Multi-Color Device Single Color On
- Actuation Yes
- Color Technology Standard LED
- Operation Normally Open
- Min Op. Temperature (°C) -25
- Feature: Quick Disconnect Yes
- Housing Style Base Mount - Dome Window
- Color Option 1 Blue
- Number of Input Pins/Conductors 5
- Environmental Rating IP40
- Feature: Chemical Resistant No
- Power Source DC
- Connection Integral QD
- Input Type PNP
- Primary Housing Color Black
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 465 nm
- Output Type PNP
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
OS80K2MX1BRQ Description
Banner Engineering OS80K2MX1BRQ is a control station featuring a 2-positions key-operated selector switch operator station with OFF/momentary functionality. It offers surface or base mounting with an M30 thread and operates within an ambient air temperature range of -25°C to +55°C. The design includes an I.O. block compatible with 2-color B (Not activated) / R (Activated) LED illumination within an 80mm housing diameter. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity and has an IP40 degree of protection. It requires a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The material composition includes a polyamide (PA) operator and a polycarbonate (PC) base, with a black housing color. Its operating mode is momentary NO (Normally Open) touch output, featuring 1 x digital output (12-30Vdc; PNP), 1 NO auxiliary contact, and no NC (Normally Closed) auxiliary contacts. Additionally, it has 2 x digital inputs (12-30Vdc; PNP) for color control and a current consumption of 135mA.
