OS80PMLY1GYQ Banner Pilot Devices Accessories
Part#:OS80PMLY1GYQ
Manufacturer:Banner
Alt. Part#:804827
Product Lifecycle:Active
Get a quick Quote!

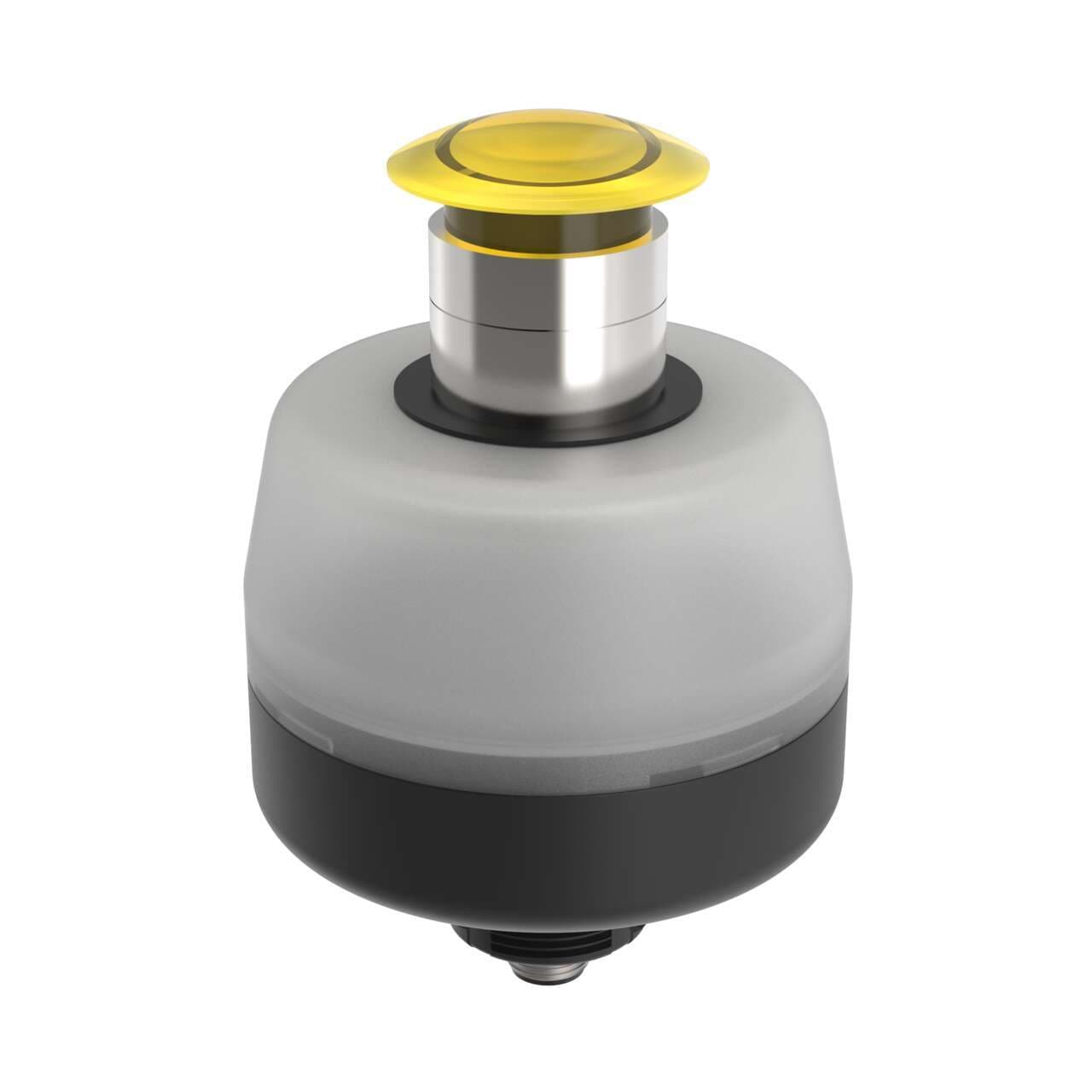

OS80 Operator Station: Push Button, Yellow; Latching (Pull-to-Release); 2-Color; Voltage: 12-30 V dc; Housing: Polycarbonate; IP40; Output: PNP 1 NO; Colors: Green Yellow; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pilot Devices Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the OS80PMLY1GYQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight340.194 g
- Country Of OriginMX
- Mounting Thread M30 x 1.5
- Color Option 2 Yellow
- Max Op. Temperature (°C) 55
- Feature: Hazardous Area No
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Max Output Response Time (ms) 50
- Secondary Material Polyamide
- Activation Function Push-Button
- Color Technology Standard LED
- Output Type PNP
- Primary Housing Color Black
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 2
- Number of Input Pins/Conductors 5
- Environmental Rating IP40
- Wireless No
- Power DC
- Animation Option 1 Solid On
- Input Type PNP
- Min Op. Temperature (°C) -25
- Feature: Quick Disconnect Yes
- Housing Style Base Mount - Dome Window
- Product Size (mm) 80
- Operation Normally Open
- Physical Dimensions (LxWxH or DxH mm) 80.0 x 115.6
- Multi-Color Device Single Color On
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- I/O Block Compatible Yes
- Feature: Audible No
- Modbus RTU No
- Storage Temp (°C) -40 to 70
- IO Link No
- Actuation Yes
- Max Current Color (mA) 135
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Supply Voltage 12-30 V dc
- Button Operation Latching
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
OS80PMLY1GYQ Description
Banner Engineering OS80PMLY1GYQ is a control station featuring an illuminated push-button operator station designed for surface or base mounting with an M30 thread. It operates within an ambient air temperature range of -25°C to +55°C and incorporates an I.O. block compatible 2-color G (Not activated) / Y (activated) LED illumination. The device has a 40mm mushroom head and an 80mm housing diameter, and it connects via a pre-equipped 5-pin M12 Euro-style QD connector. With an IP40 degree of protection and a supply voltage range of 12Vdc-30Vdc (24Vdc nominal), this control station is constructed from a polyamide (PA) button and a polycarbonate (PC) base, featuring a yellow button and black housing. It operates in a latched NO (Normally Open) touch output mode, includes 1 x digital output (12-30Vdc; PNP), 1 NO auxiliary contact, 0 NC auxiliary contacts, and 2 x digital inputs (12-30Vdc; PNP) for color control, with a current consumption of 135mA.
