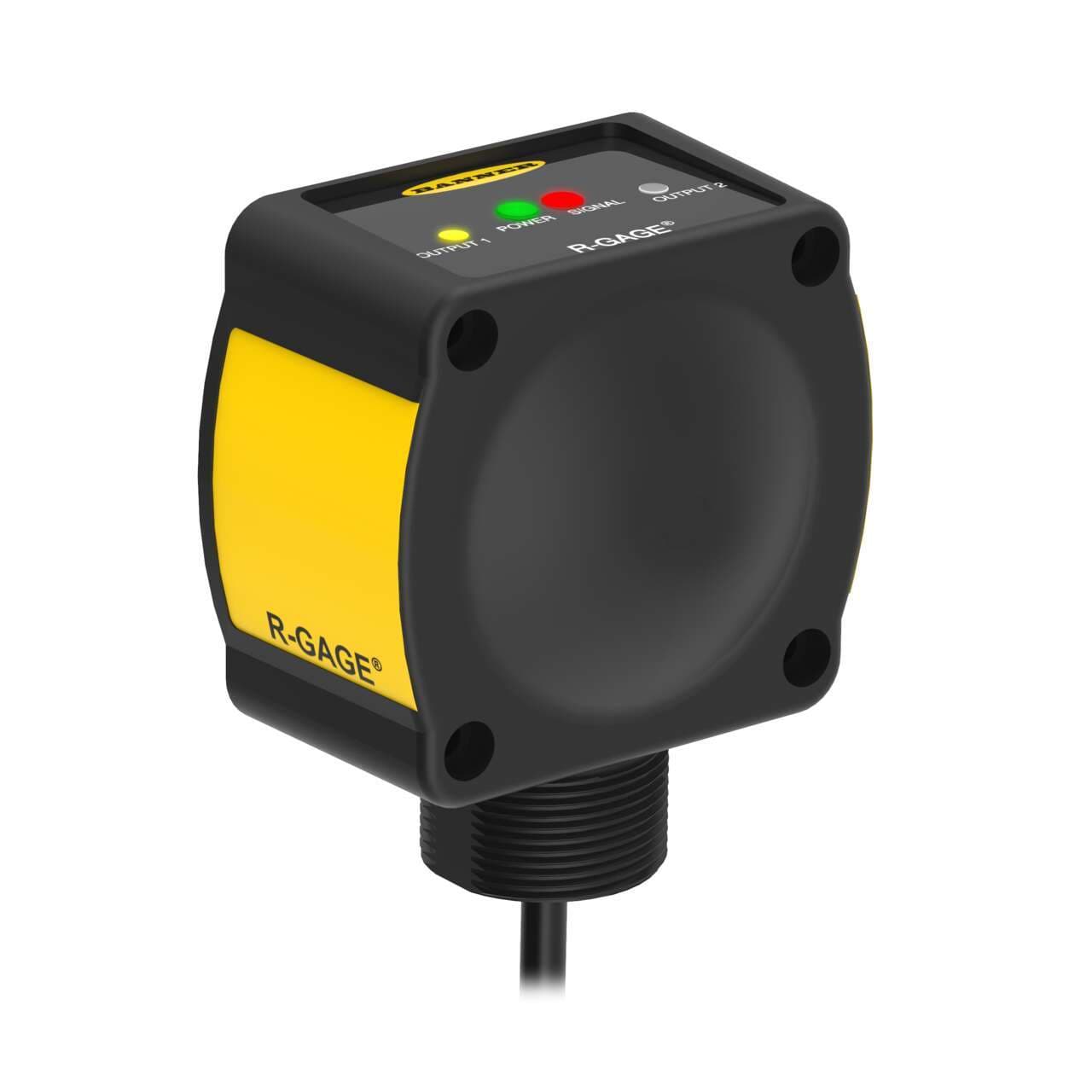

QT50R-US-AFH Banner Safety Light Curtains
Part#:QT50R-US-AFH
Manufacturer:Banner
Alt. Part#:25364
Product Lifecycle:Active
In-stock parts: 2
Nov 6, 2025
R-Gage Series Radar Sensor; Adjustable Field; Outputs: Bipolar: 1 NPN; 1 PNP; Supply Voltage: 12-30 V dc; Range: 3.5 - 24 m; 2 m Cable
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QT50R-US-AFH Banner price in the box on the right side or send a quick quote.
Product Details
- Weight453.592 g
- Country Of OriginUS
- Main function Sensor (Radar)
- Sub-range name QT50R-AFH
- Sensing distance 3.5...24m
- Shape Rectangular
- Degree of protection IP67
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Material ABS / polycarbonate housing
- Equivalent to QT50RUSAFH
- Primary brand Banner Engineering
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Compliant with standard(s) cULus CE
- Product series / family name R-GAGE series
- Design time-of-flight system
- Operating mode NO (Normally Open) NC (Normally Closed)
- Ambient air temperature for operation -40...+65 °C
- Order code / Manufacturer SKU 25364
- Functions Collision-avoidance adjustable-field radar sensor green LED (power ON) yellow LED (output state)
- Protection functions Reverse polarity Short-circuit
- PC Configurable No
- Quick Disconnect Type No QD
- Power Supply 12-30 V dc
- IO Link No
- Profibus No
- Minimum Sensing Distance (mm) 3500
- Max Sensing Distance (mm) 24000
- Max Measurement Range >20 m - <=50 m
- Device Type Sensor
- Operating Frequency 24 GHz
- Sensing Beam Radar
- Housing Style Rectangular
- Power DC
- Sensing Mode (Detailed) Time of Flight
- Cable Length (m) 2
- Indicator LED(s)
- Sensing Mode (General) Proximity
- Primary Housing Material ABS/Polycarbonate
- Connection Flying Leads
- Radar Beam Pattern (H x V °) 90 x 76
- Input/Output Discrete
- Max Discrete (Switched) Output (mA) 150
- Delay at Power-up (ms) 2000
- Number of Pins 5
- Adjustments Dip Switch
- IP Rating IP67
- Output Protection Protected against short circuit
- Discrete (Switched) Outputs Bipolar (NPN & PNP)
- Max Operating Temperature (°C) 65
- Minimum Response Time (ms) 30
- Min Operating Temperature (°C) -40
- Common Ethernet Protocol No
- Wireless No
- Feature: Timing (Hold/Delay) No
- SSI No
- Cert: Canada Yes
- RS-232 No
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Power/Current Consumption (exclusive of load) < 100 mA
- RS-422 No
- 1-wire Serial Interface No
- PROFINET No
- Feature: Chemical Resistant No
- RS-485 No
- Cert: US Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QT50R-US-AFH Description
Banner Engineering QT50R-US-AFH is a collision-avoidance adjustable-field radar sensor designed with a time-of-flight system and is approved for use in the US, Canada, and Brazil. It operates within an ambient air temperature range of -40 to +65°C and is housed in an ABS / Polycarbonate (PC) material, ensuring durability. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. It belongs to the QT50R-AFH series and offers a sensing distance of 3.5 to 24m. With an IP67 degree of protection, it is well-suited for challenging environments. The QT50R-US-AFH operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and features a rectangular shape. It supports both Normally Open (NO) and Normally Closed (NC) operating modes and includes 1 x digital output (PNP/NPN transistor). Protection functions include reverse polarity and short-circuit protection, enhancing its operational safety and reliability.
Related documents QT50R-US-AFH Specs
