QT50UVR3FQ1-CRFV Banner Electronic Components
Part#:QT50UVR3FQ1-CRFV
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

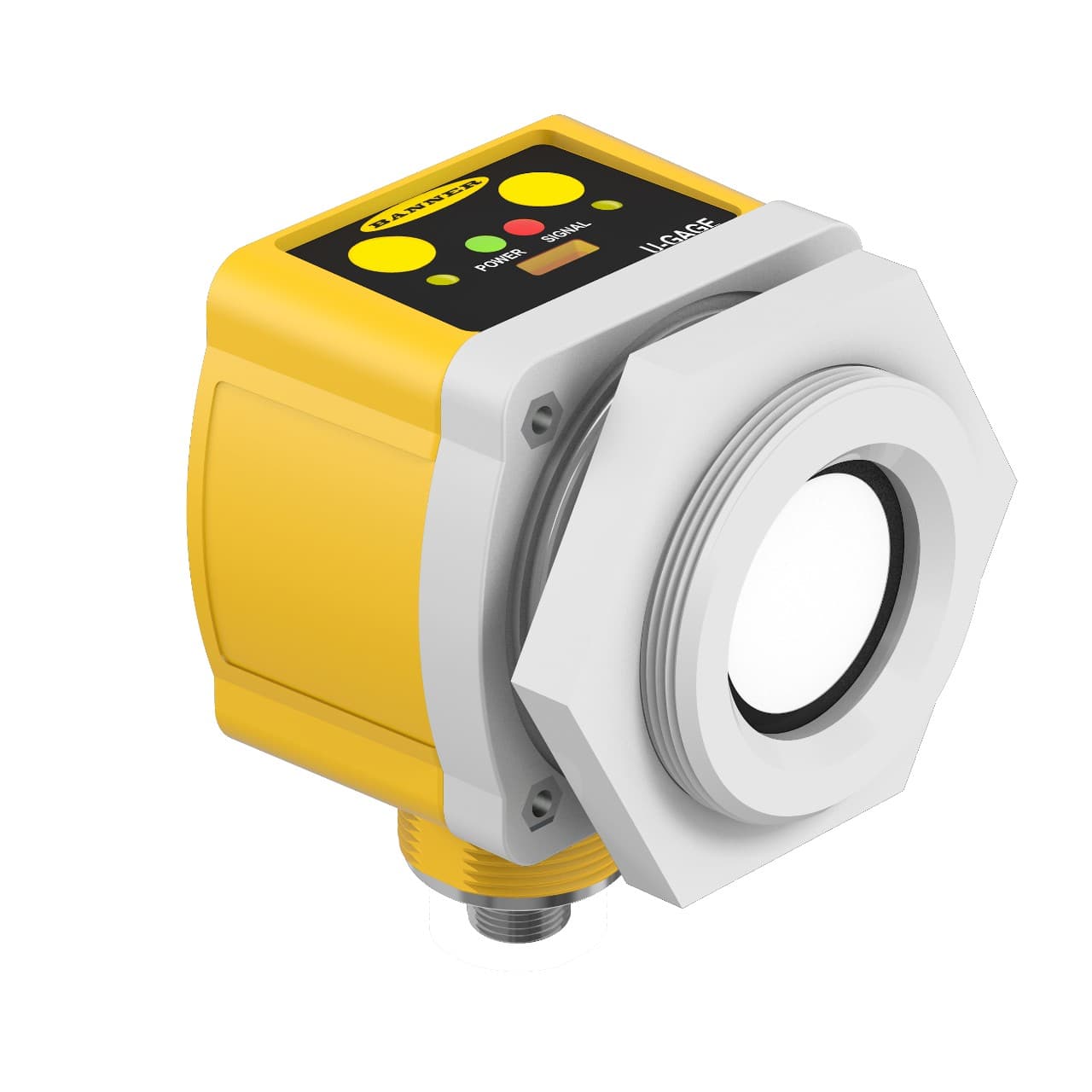

Banner Engineering QT50UVR3FQ1-CRFV is an ultrasonic distance sensor featuring a time-of-flight system for precise measurements. It is designed with an M30 threaded mount for secure installation and is equipped with a 5-pin 1/2" micro connector for connectivity. This sensor operates within an ambient air temperature range of -20 to +70°C and is powered by a supply voltage range of 85Vac-264Vac (200Vac / 220Vac / 240Vac nom.) or 48Vdc-250Vdc (120Vdc nom.), accommodating various power systems. The QT50UVR series sensor boasts a sensing distance of 20cm to 6m and operates at a 75kHz transmission frequency. It is housed in a chemical-resistant thermoplastic material, ensuring durability in harsh environments. The sensor is protected against short circuits and has an IP67 NEMA 6P degree of protection, making it suitable for use in conditions where dust and water resistance are necessary. It also features 1 x digital output (SPDT rly. contact) for signal processing.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QT50UVR3FQ1-CRFV Banner price in the box on the right side or send a quick quote.
Product Details
- Max Measurement Range >1 m - <=20 m
- Input/Output Discrete
- Adjustments Push Button (s)
- IP Rating IP67
- Barrel Diameter (mm) 56
- Feature: Pump-in/ Pump-out Yes
- 1-wire Serial Interface No
- Sensing Beam Ultrasonic
- Power Supply 85-264 V ac / 48-250 V dc
- Output Protection Protected against short circuit conditions
- Temp. Warm-up Drift (Notes 2) After 25 min, the sensing position will be stable.
- Feature: Clear Object Detection Yes
- RS-485 No
- Temperature Effect (mm/°C) Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
- Max Operating Temperature (°C) 70
- Application: Ultrasonic Yes
- Profibus No
- Primary Housing Material PBT
- Delay at Power-up (ms) 1500
- NEMA Rating NEMA 6P
- Minimum Response Time (ms) 100
- Feature: Timing (Hold/Delay) No
- SSI No
- Power AC/DC Universal
- Quick Disconnect Type M12 (Euro)
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Temperature Warm-up Drift upon Power-up < 7% of the sensing distance upon power-up.
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- RS-232 No
- Device Type Sensor
- Analog Resolution/Discrete Repeatability 1
- Max Discrete (Switched) Output (mA) 8000
- Warm-up Time (minutes) 30
- Power/Current Consumption (exclusive of load) 1.5 W max
- IO Link No
- Sensing Mode (General) Proximity
- Connection Integral QD
- Number of Pins 5
- Min Operating Temperature (°C) -20
- Minimum Window Size (mm) 20
- Common Ethernet Protocol No
- Sensing Mode (Detailed) Time of Flight
- Minimum Sensing Distance (mm) 200
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Max Op. Relative Humidity Non-Condensing (%) 100
- Ultrasonic Frequency (kHz) 75
- PROFINET No
- PC Configurable No
- Indicator LED(s)
- Storage Temperature (°C) -40 to 90
- Rep Rate (ms) 96
- Feature: Chemical Resistant Yes
- Wireless No
- Housing Style Rectangular
- Max Sensing Distance (mm) 6000
- Feature: Remote Teach Yes
- RS-422 No
- Discrete (Switched) Outputs SPDT e/m Relay
- Temp. Warm-up Drift (Notes 1) After 5 min, the apparent switchpoint is < 0.6% of the actual position.
