S18DLWXXP W/ 17 Banner Electronic Components
Part#:S18DLWXXP W/ 17
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

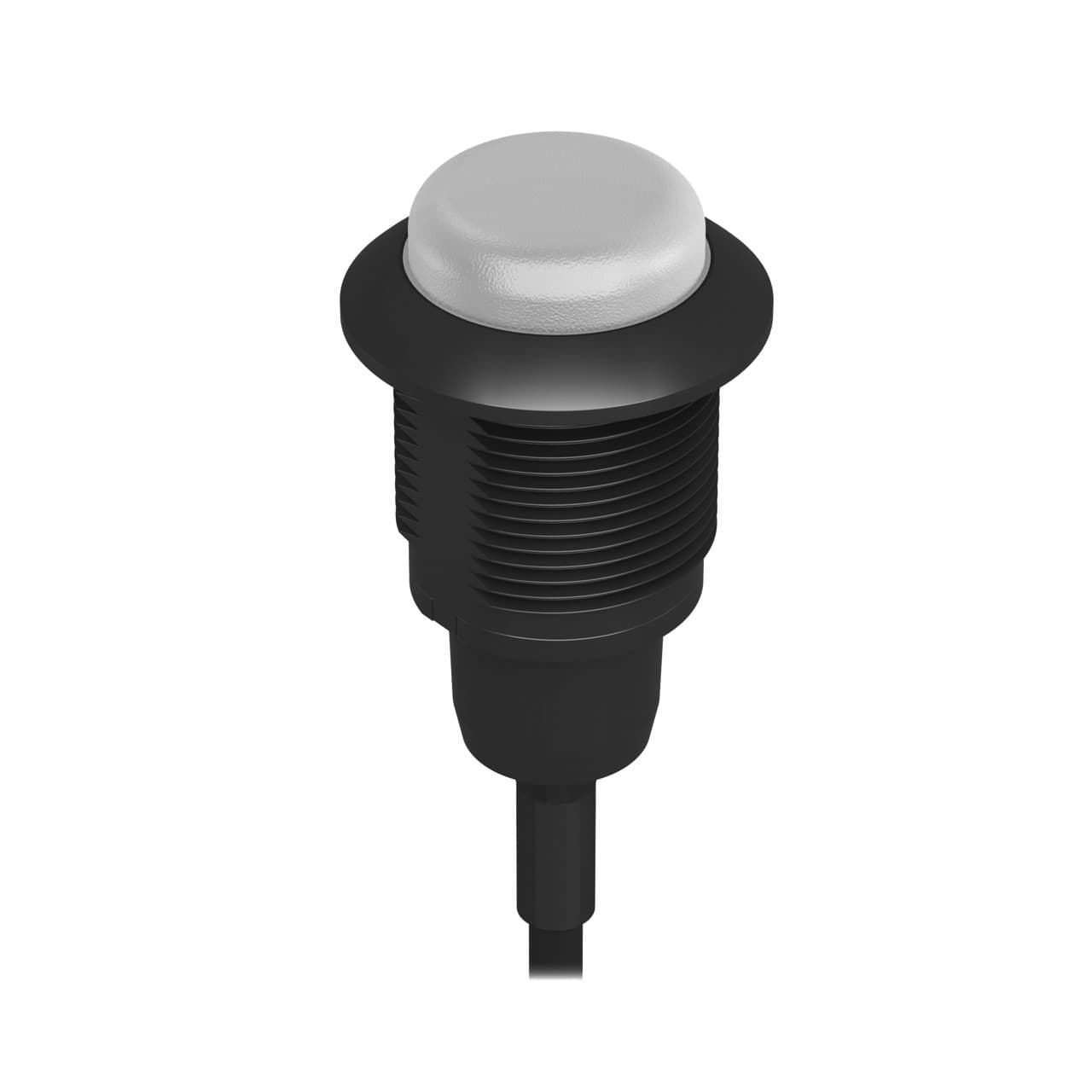

S18 Daylight Visible EZ-LIGHT - 18 mm - IP67, Single Color: White, 10-30 V dc PNP Input, 4 Wire 5 m Cable
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S18DLWXXP W/ 17 Banner price in the box on the right side or send a quick quote.
Product Details
- Product Size (mm) 18
- Color 1 - Wavelength/Color Temp/Coordinates 6000K
- Input Type PNP
- Feature: Hazardous Area No
- Mounting Thread M18 x 1.0
- Max Current Color (mA) 25
- Primary Housing Color Black
- IO Link No
- Cable Length (m) 2
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Connection Cable
- Environmental Rating IP67; IP69
- Feature: Quick Disconnect No
- Indication Yes
- Color Technology Standard LED
- Max Input Response Time (ms) 1
- Feature: Washdown Rated Yes
- Color Option 1 White
- Supply Voltage 10-30 V dc
- Multi-Color Device Single Color On
- Feature: Audible No
- Power Source DC
- Lumens Color 1 4.0
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Indication Intensity High Brightness & Daylight Visible
- Power DC
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Feature: Chemical Resistant No
- Housing Style Barrel Mount - Flat Window
- Number of Colors / Segments 1
- Number of Input Pins/Conductors 4
- Primary Window Material Polycarbonate Clear
- Pro-Editor Compatible (Discrete) No
- Wireless No
