T18RW3FF25Q3 Banner Electronic Components
Part#:T18RW3FF25Q3
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

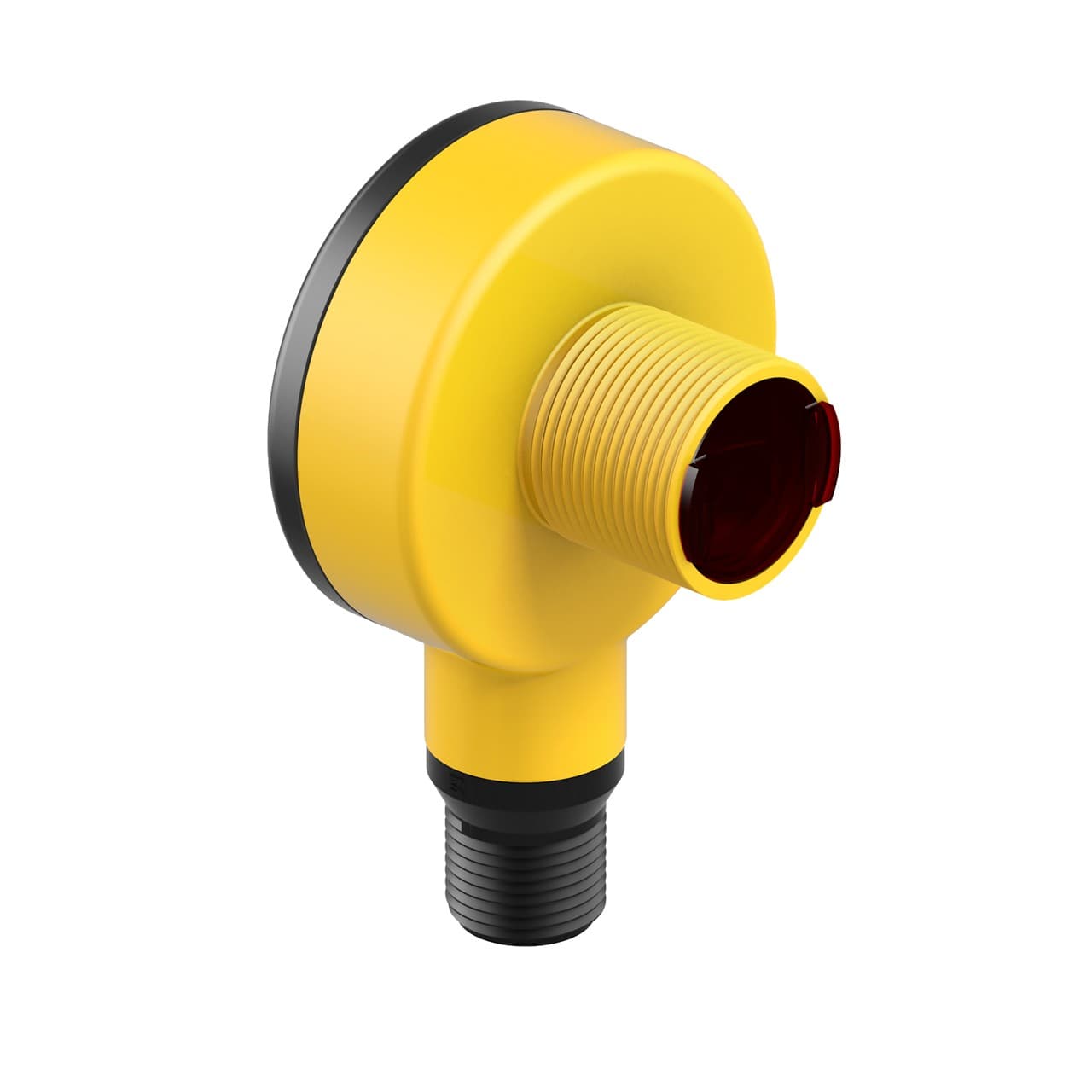

EZ-BEAM T18 Series Threaded Right-Angle Fixed-Fiel, Range: 0 - 25 mm Cutoff; Input: 20-250V ac, Output: Dark Operate, QD uses Turck cordset: WAKW4.5T-2
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18RW3FF25Q3 Banner price in the box on the right side or send a quick quote.
Product Details
- Sensing Beam Infrared LED
- Housing Style Barrel
- Lens Material Acrylic
- Outputs Solid-State AC Switch
- DeviceNet No
- Primary Housing Material Thermoplastic
- Connection Integral QD
- IP Rating IP67, IP69
- Feature: Washdown Rated Yes
- Input/Output Solid-State AC Switch
- Max Op. Temp. (°C) 70
- Repeatability (µs) 4000
- Feature: Chemical Resistant Yes
- Sensing Mode (General) Proximity
- Quick Disconnect Type M12 (Euro)
- Number of Pins 5
- Feature: Ecolab Certified Yes
- Output response time (ms) 16
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Max Sensing Distance (mm) 25
- Barrel Diameter (mm) 18
- Power AC
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6P
- Feature: Audible No
- Min Op. Temp. (°C) -40
- Special Feature: Water Detection No
- Indicator LEDs
- Feature: Encapsulated Yes
- Power Supply/Supply Voltage 20-250 V ac
- Operation Dark Operate
- Adjustments N/A
- Feature: Timing (Hold/Delay) No
- Feature: Hazardous Area No
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents T18RW3FF25Q3 Specs
