T18RW3REQI Banner Proximity Sensors
Part#:T18RW3REQI
Manufacturer:Banner
Alt. Part#:37067
Product Lifecycle:Active
Get a quick Quote!

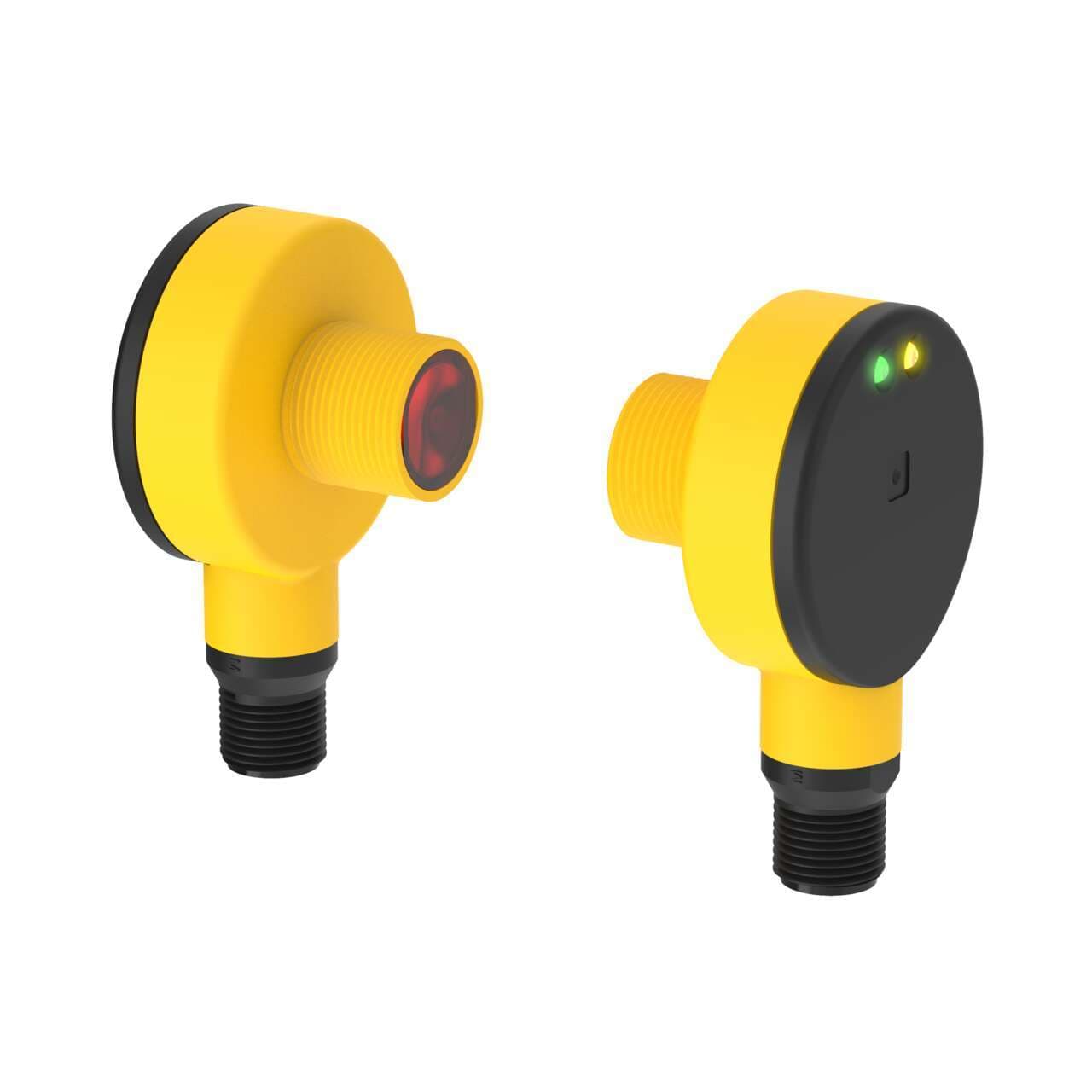

EZ-BEAM T18: Threaded R-Angle Receiver/Emitter; Range: 20 m; Input: 20-250 V ac; Output: Receiver Dark Operate; 4-pin Micro Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T18RW3REQI Banner price in the box on the right side or send a quick quote.
Product Details
- Weight110.222856 g
- Country Of OriginUS
- Power AC
- Primary Housing Material Thermoplastic
- Outputs Solid-State AC Switch
- Sensing Mode (Detailed) Emitter/Receiver Pair
- Delay at Power-up (ms) 100
- Number of Pins 4
- NEMA Rating NEMA 6P
- Max Op. Temp. (°C) 70
- Indicator LEDs
- Feature: Chemical Resistant Yes
- Barrel Diameter (mm) 18
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Adjustments N/A
- Repeatability (µs) 2000
- Sensing Beam Infrared LED
- Connection Integral QD
- Feature: Ecolab Certified Yes
- Feature: Audible No
- Input/Output Solid-State AC Switch
- IP Rating IP67, IP69
- Lens Material Polycarbonate
- Feature: Timing (Hold/Delay) No
- Opposed Mode Emitter/Receiver Pair
- Feature: Washdown Rated Yes
- Power Supply/Supply Voltage 20-250 V ac
- Special Feature: Intrinsically Safe No
- Max Sensing Distance (mm) 20000
- Quick Disconnect Type 1/2 in. (Micro)
- Housing Style Barrel
- Sensing Mode (General) Opposed
- Special Feature: Remote Teach No
- Operation Dark Operate
- Special Feature: Water Detection No
- Min Op. Temp. (°C) -40
- Output response time (ms) 16 ON/8 OFF
- DeviceNet No
- Feature: Hazardous Area No
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
T18RW3REQI Description
Banner Engineering T18RW3REQI is a photo-electric sensor from the T18 series, designed with a through-beam system or opposed mode. It features a thermoplastic housing with a polycarbonate lens and has an M18 cylindrical threaded/barrel shape. This sensor is pre-equipped with a 4-pin 1/2" micro connector for connectivity and operates within a supply voltage range of 20Vac-250Vac, with nominal voltages of 200Vac, 220Vac, and 240Vac. It offers a threaded mount for installation and can operate in ambient air temperatures ranging from -40 to +70 degrees Celsius. The T18RW3REQI is protected to IP67, IP69K, and NEMA 6P standards, ensuring its durability in various environments. It has a 40mm diameter and provides one digital output (Solid-state AC output; SPST contact type) with a sensing distance of 20m. The sensor operates with infrared light at a wavelength of 950 nm and features a response time of 16ms for turning on and 8ms for turning off, operating in a Dark-ON mode.
