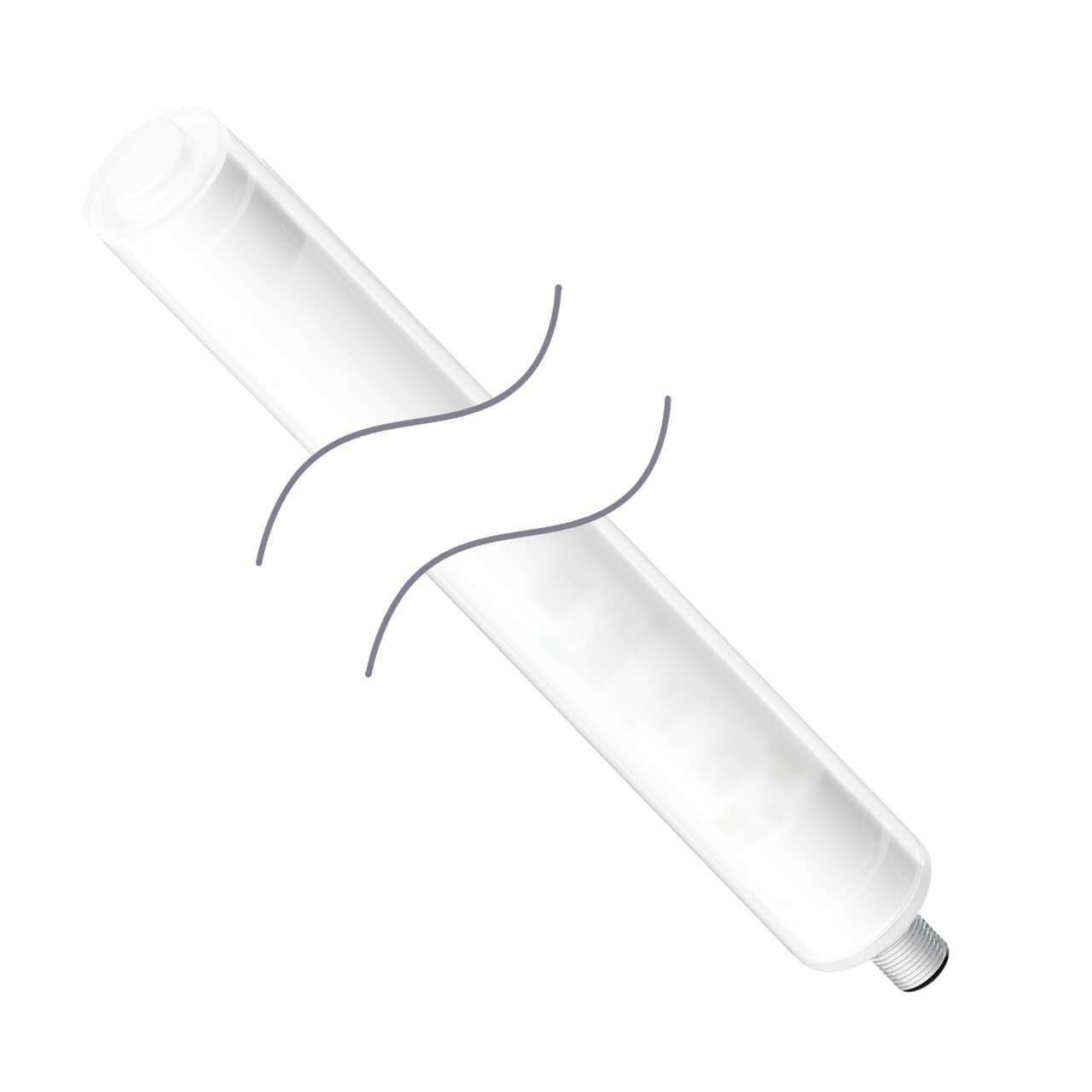

WLS27XWY-570DSQ Banner Signal Towers
Part#:WLS27XWY-570DSQ
Manufacturer:Banner
Alt. Part#:800381
Product Lifecycle:Active
Get a quick Quote!
WLS27 Dual Color Light Strip; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Colors: White (100%) Yellow (100%); 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XWY-570DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight444.52016 g
- Country Of OriginMX
- Illumination Yes
- Lumens Color 1 950
- Max Current Color (mA) 1600
- Primary Window Material Copolyester Diffused
- Primary Housing Material FDA Copolyester
- Quick Disconnect Type M12 (Euro)
- Illuminated Length (LxWxH mm) 570.0
- Feature: Audible No
- Housing Style Linear Strip
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 633.5
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Environmental Rating IP66; IP67; IP69
- Multi-Color Device Single Color On
- Wireless No
- Product Size (mm) 27
- Power DC
- Connection Integral QD
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Color Option 1 White
- Color Option 2 Yellow
- Supply Voltage 12-30 V dc
- Feature: Hazardous Area No
- Number of Colors / Segments 2
- Animation Option 2 Solid On
- Max Op. Temperature (°C) 70
- Pro-Editor Compatible (Discrete) No
- Mounting Thread No Thread
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Power Source DC
- Animation Option 1 Solid On
- Lumens Color 2 300
- Feature: Chemical Resistant Yes
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XWY-570DSQ Description
Banner Engineering WLS27XWY-570DSQ is a dual color series industrial sealed LED task light designed for a variety of applications requiring clear illumination. This task light features a diffused window with a 2-color white/yellow (W/Y) color pattern LED illumination, suitable for diverse industrial environments. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this cylindrical linear strip light are L570mm x D27mm, with a consistent diameter of 27mm across its length. The construction includes a copolyester diffused window and an FDA-grade copolyester outer housing, ensuring durability and compliance for use in sensitive environments. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The WLS27XWY-570DSQ offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it resistant to dust, water, and high-pressure washdowns. It can operate in ambient air temperatures ranging from -40°C to +70°C. This model features 2 digital inputs (12-30Vdc) for color control, consumes 1.6A of current, and provides a luminous flux of 950 lumens, ensuring bright and effective lighting for various tasks.
Related documents WLS27XWY-570DSQ Specs
1-year warranty
