562231 Festo Electric Actuators
Part#:562231
Manufacturer:Festo
Alt. Part#:EGSL-BS-75-200-10P
Product Lifecycle:Active
Get a quick Quote!

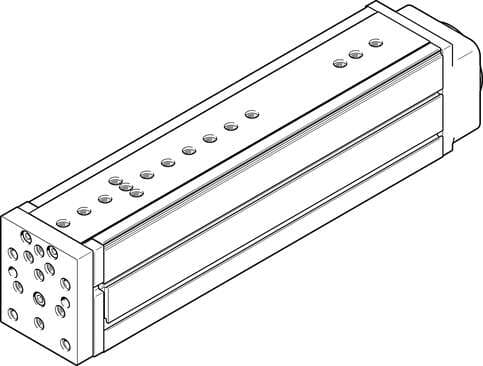

mini slide EGSL-BS-75-200-10P Working stroke: 200 mm, Size: 75, Parallel running in the z-direction: 0,08 mm, Parallelism: 0,1 mm, Reversing backlash: <: 50 µm
About the manufacturer: Festo is one of the manufacturers that offers Electric Actuators that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 562231 Festo price in the box on the right side or send a quick quote.
Product Details
- Reversing backlash ≤ 50 µm
- Type code EGSL
- Motor type Stepper motor Servo motor
- Spindle type Ball screw drive
- Corrosion resistance class (CRC) 0 - No corrosion stress
- Noise level 65 dB(A)
- Max. force Fz 714 N
- Max. torque Mz 33.8 Nm
- Feed constant 10 mm/U
- Parallelism 0.1 mm
- Size 75
- Spindle pitch 10 mm/U
- Max. acceleration 25 m/s²
- Position sensing For proximity sensor
- Ambient temperature 0 °C ... 60 °C
- Max. driving torque 3.25 Nm
- Max. torque Mx 48.5 Nm
- Max. feed force Fx 450 N
- Mass moment of inertia JO 0.9649 kgcm²
- Product weight 6520 g
- Cover material Cast aluminum Painted
- Material of yoke plate Wrought aluminum alloy Anodized
- Run. parallelism along Z-axis 0.08 mm
- Mounting position Any
- Repetition accuracy ±0.015 mm
- No-load driving torque 0.25 Nm
- Moving mass 2850 g
- Spindle nut material Roller bearing steel
- Working stroke 200 mm
- Screw diameter 20 mm
- Design Electrical mini-slide with ball screw drive
- Max. speed 0.65 m/s
- Degree of protection IP40
- Max. force Fy 714 N
- Max. radial force on actuator shaft 300 N
- Guide value for payload, horizontal 14 kg
- Mass moment of inertia JL per kg of payload 0.00253 kgcm²
- Type of mounting With internal thread With accessories
- Guide rail material Roller bearing steel
- Spindle material Roller bearing steel
- Guide Ball bearing cage guide
- Symbol 00992069
- Duty cycle 100%
- Continuous feed force 300 N
- Max. torque My 33.8 Nm
- Guide value for payload, vertical 14 kg
- Maintenance interval Life-time lubrication
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Housing material Wrought aluminum alloy Anodized
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 562231 Specs
1-year warranty
