562232 Festo Electric Actuators
Part#:562232
Manufacturer:Festo
Alt. Part#:EGSL-BS-75-300-10P
Product Lifecycle:Active
Get a quick Quote!

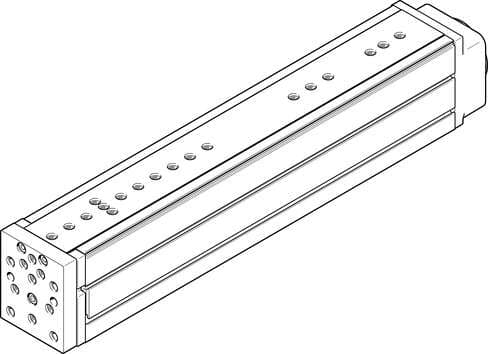

mini slide EGSL-BS-75-300-10P Working stroke: 300 mm, Size: 75, Parallel running in the z-direction: 0,12 mm, Parallelism: 0,15 mm, Reversing backlash: <: 50 µm
About the manufacturer: Festo is one of the manufacturers that offers Electric Actuators that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 562232 Festo price in the box on the right side or send a quick quote.
Product Details
- Max. force Fy 555 N
- Working stroke 300 mm
- Screw diameter 20 mm
- Run. parallelism along Z-axis 0.12 mm
- Spindle type Ball screw drive
- Repetition accuracy ±0.015 mm
- Continuous feed force 300 N
- Cover material Cast aluminum Painted
- Spindle nut material Roller bearing steel
- Size 75
- Spindle pitch 10 mm/U
- Guide Ball bearing cage guide
- Position sensing For proximity sensor
- Corrosion resistance class (CRC) 0 - No corrosion stress
- Max. driving torque 3.25 Nm
- Max. torque My 36.5 Nm
- Max. feed force Fx 450 N
- Guide value for payload, vertical 14 kg
- Guide rail material Roller bearing steel
- Reversing backlash ≤ 50 µm
- Mounting position Any
- Motor type Stepper motor Servo motor
- Max. speed 0.65 m/s
- Degree of protection IP40
- Max. force Fz 555 N
- Max. radial force on actuator shaft 300 N
- Mass moment of inertia JL per kg of payload 0.0253 kgcm²
- Maintenance interval Life-time lubrication
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material of yoke plate Wrought aluminum alloy Anodized
- Parallelism 0.15 mm
- Type code EGSL
- Design Electrical mini-slide with ball screw drive
- Max. acceleration 25 m/s²
- Noise level 65 dB(A)
- Ambient temperature 0 °C ... 60 °C
- Max. torque Mz 36.5 Nm
- Guide value for payload, horizontal 14 kg
- Mass moment of inertia JO 1.0667 kgcm²
- Moving mass 3440 g
- Type of mounting With internal thread With accessories
- Housing material Wrought aluminum alloy Anodized
- Spindle material Roller bearing steel
- Symbol 00992069
- Duty cycle 100%
- Max. torque Mx 46.4 Nm
- No-load driving torque 0.25 Nm
- Feed constant 10 mm/U
- Product weight 8050 g
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
