YGLR34C34 Hubbell Electronic Components
Part#:YGLR34C34
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

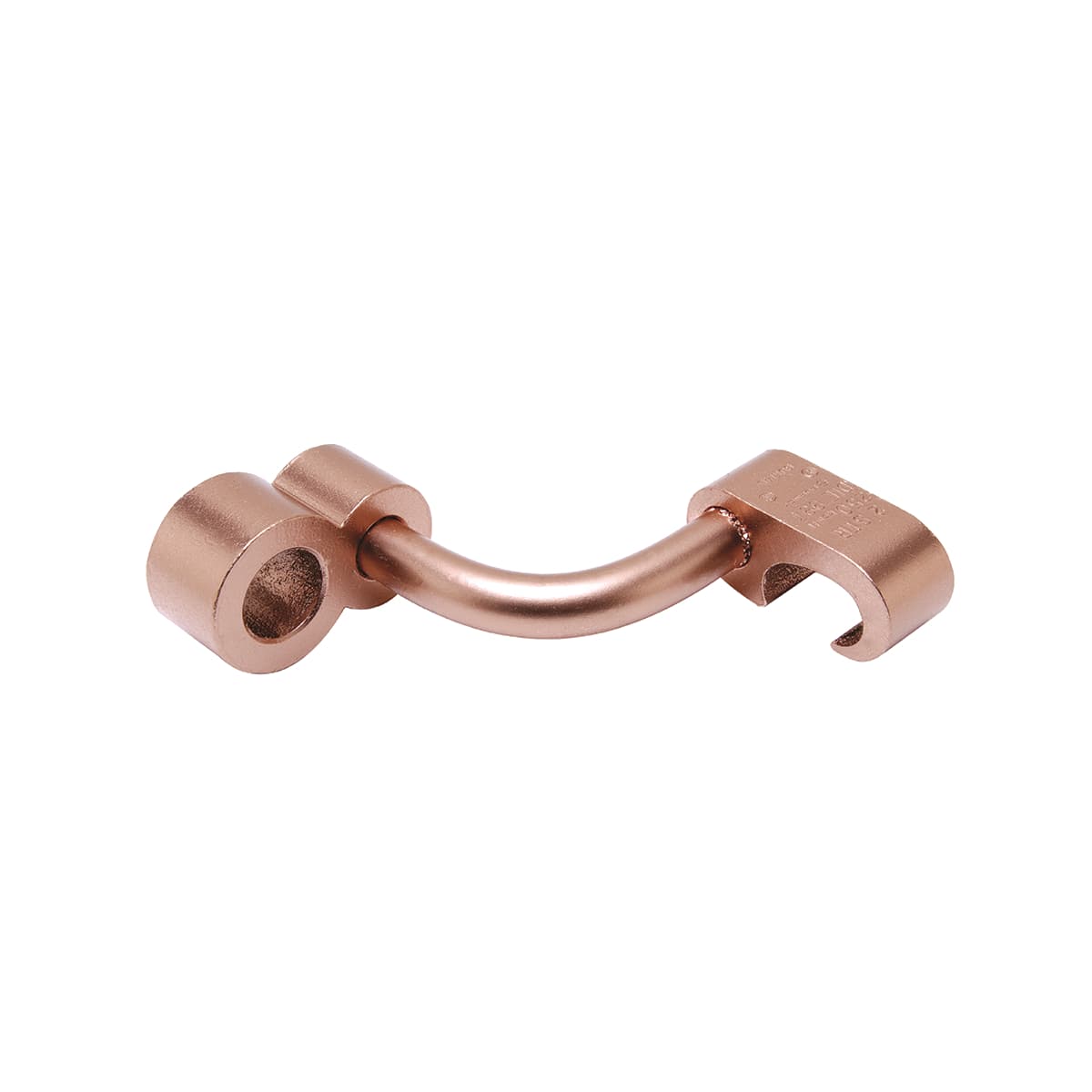

Copper Compression Connector, Ground Rod to Grid, 250 kcmil - 500 kcmil, 3/4" Ground Rod. ; Features: Ground Grid Connector For A Wide Range Of Copper Cable To Ground Rod, Provides High Torque Strength On Ground Rod, UL467 Listed, Acceptable For Direct B
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YGLR34C34 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Physical Attribute - Number of Crimps Required 2
- Die Index 1011
- Sub Brand GRIDLOK
- Dimension - B Length fraction 3/4 in
- Dimension - L Length Overall mm 67 mm
- Die Index - Element B 1011
- Plating Type Unplated
- Type Taps
- Dimension - Length Overall inch 2.63 in
- Conductor - Rod Size B Range 3/4 in
- Certification - UL Recognized No
- Minimum Pack Quantity 1
- Plated N
- Die Index - Element A 1011
- Trade Name GRIDLOK™
- Dimension - B Length inch 0.75 in
- Conductor - Rod Size B 3/4 in
- Dimension - Length BB inch 0.88 in
- Certification - UL Listed Direct Burial Yes
- EU RoHS Indicator Yes
- Precrimp Die UPRECRIMP34
- UPC 781810220856
- Dimension - D inch 0.50 in
- Conductor - Copper Str Size A 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor Type CU C Str-Size ; Rod-Size ; CU Weld C Str-Size
- UL Listed Yes
- Prefilled Oxide Inhibitor Y
- UPC 12 Digit 7818102208566
- Conductor - Copper Str Size A Range 250 kcmil-500 kcmil
- Certification - CSA Approved Yes
- Industry Standard(s) UL467 ; IEEE 837 ; IEEE 837 2014 Qualified
- Connector Type Tap
- Oxide Inhibitor Type Penetrox E
- Dimension - Ground Rod Size 3/4
- Certification - ETL No
- Standards - Industry Standards Met UL467;IEEE 837;IEEE 837 2014 Qualified
- Standards - RoHS Compliance Status CM
- Certification - cULus No
- Conductor - Rebar Tap 5;6
