YGLR34C58 Hubbell Electronic Components
Part#:YGLR34C58
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

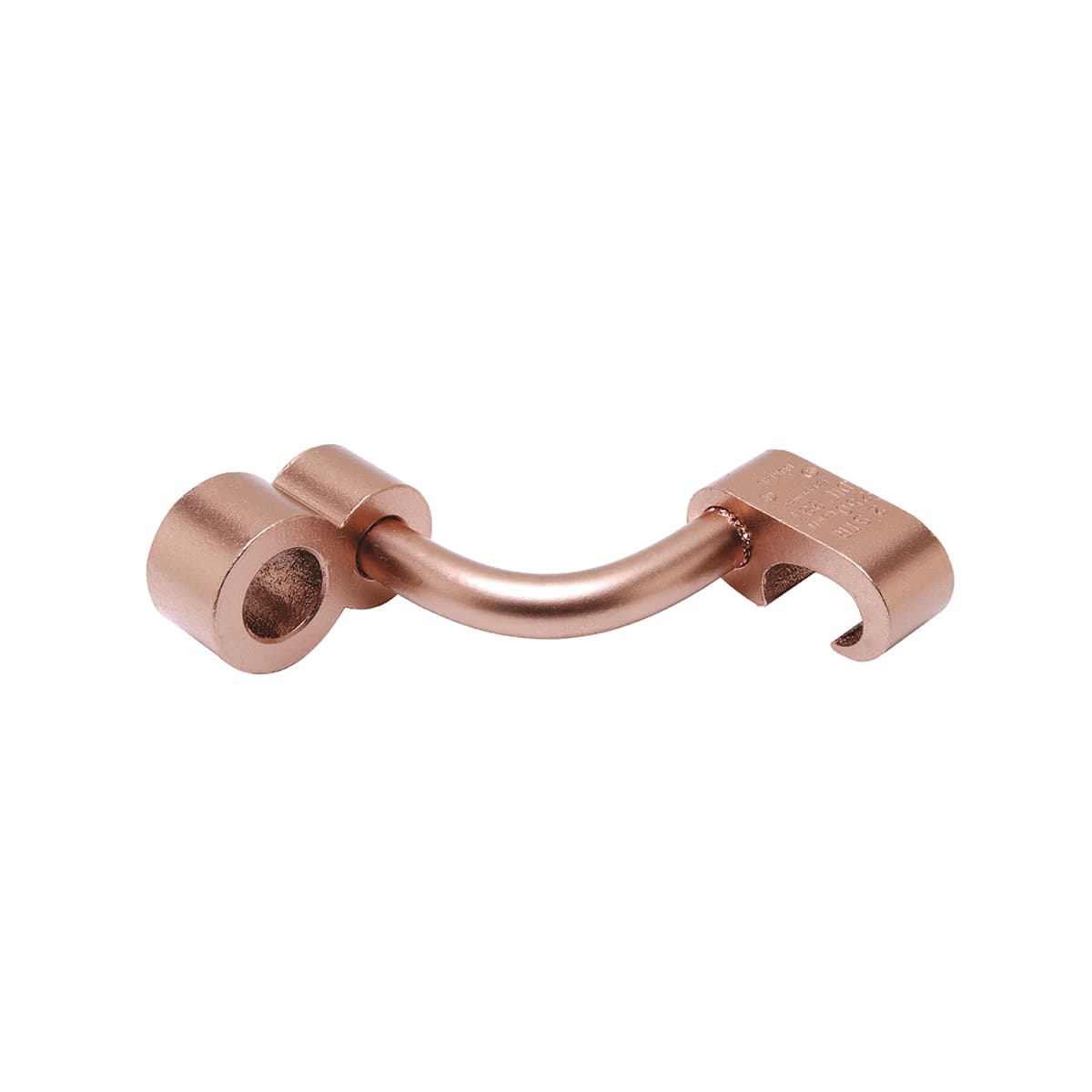

Copper Compression Connector, Ground Rod to Grid, 250 kcmil - 500 kcmil,5/8" Ground Rod. ; Features: Ground Grid Connector For A Wide Range Of Copper Cable To Ground Rod, Provides High Torque Strength On Ground Rod, UL467 Listed, Acceptable For Direct Bu
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YGLR34C58 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Oxide Inhibitor Type Penetrox E
- Die Index - Element B 1011
- Trade Name GRIDLOK™
- Physical Attribute - Number of Crimps Required 2
- Die Index 1011
- Dimension - B Length inch 0.75 in
- Dimension - Length Overall inch 2.53 in
- Connector Type Tap
- Plated N
- Precrimp Die UPRECRIMP58
- EU RoHS Indicator Yes
- Prefilled Oxide Inhibitor Y
- Dimension - Ground Rod Size 5/8
- Conductor - Copper Str Size A 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- UPC 781810220849
- Sub Brand GRIDLOK
- Plating Type Unplated
- Die Index - Element A 1011
- Dimension - D inch 0.31 in
- UPC 12 Digit 7818102208499
- Conductor - Rod Size B Range 5/8 in
- Conductor Type CU C Str-Size ; Rod-Size ; CU Weld C Str-Size
- Certification - cULus No
- Conductor - Rebar Tap 5;6
- Certification - CSA Approved Yes
- UL Listed Yes
- Type Taps
- Dimension - Length BB inch 0.88 in
- Conductor - Copper Str Size A Range 250 kcmil-500 kcmil
- Industry Standard(s) Direct Burial
- Dimension - B Length fraction 3/4 in
- Certification - ETL No
- Dimension - L Length Overall mm 64 mm
- Conductor - Rod Size B 5/8 in
- Certification - UL Listed Direct Burial Yes
- Standards - RoHS Compliance Status CM
- Standards - Industry Standards Met UL467 ; IEEE 837
- Minimum Pack Quantity 1
- Certification - UL Recognized No
