R1023147 Mersen Electronic Components
Part#:R1023147
Manufacturer:Mersen
Alt. Part#:9008567002957
Product Lifecycle:Active
Get a quick Quote!

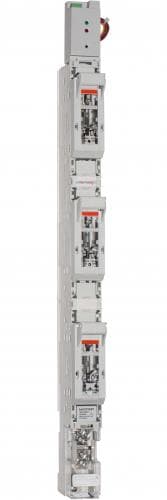

MULTIVERT 160A/185mm, 1-pole switching M8 terminal screws, for ESM
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the R1023147 Mersen price in the box on the right side or send a quick quote.
Product Details
- Fuse Size 00
- Conventional Free Air thermal Current - Solid Links 200 A
- Comments Cable termination components : 3 M8 terminal screws
- Sell Pack Width 4.92 in
- Switchability 3 x single pole
- Rated Impulse Withstand Voltage 4 kV
- Rated Duty uninterrupted duty
- Power Dissipation by Ith without Solid Links 34 W
- Short Circuit Current Rating (SCCR) 80kA@Ue = AC 500 V; Ie = 160 A
- Utilization Category AC22B @ Ue = AC 400 V; Ie = 160 A
- Rated Insulation Voltage 1000 V
- Installation Mounting Bus bar system 185 mm
- Catalogue No. M01N0E11G
- Rated voltage AC IEC 690 V
- Degree of Pollution 3
- Rated short circuit making capacity with solid links Icm 6.3 kA
- Power Dissipation by Ith without Fuse-Links 22 W
- Sell Pack Quantity 1 EACH
- Max Power dissipation of Solid Links Pn 1.2 W
- Product Length 4.72 in
- Ampere Rating 160 A
- Frequency 50...60 Hz
- Product Height 26.14 in
- ROHS Compliant Yes
- Design Details MULTIVERT® M01N0G with cabling of instrument leads
- Conventional Free Air thermal Current With Fuse-Links Ith 160 A
- Sell Pack Height 2.01 in
- Max Power dissipation of Fuse Links Pn 12 W
- Sell Pack Weight 4.96 lb
- Rated SC Withstand 4.2 kA / 1 s
- Product Width 1.97 in
- Number of Poles 3-Pole
- Product Weight 4.96 lb
- Sell Pack Length 26.5 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
