R1023193 Mersen Electronic Components
Part#:R1023193
Manufacturer:Mersen
Alt. Part#:9008567000069
Product Lifecycle:Active
Get a quick Quote!

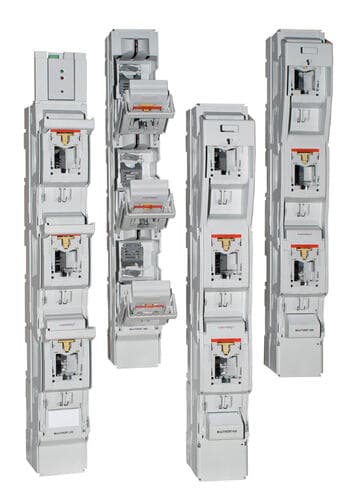

MULTIVERT 250A, 3-pole switching, mod. M10 bolt, integrated C.T. single pole
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the R1023193 Mersen price in the box on the right side or send a quick quote.
Product Details
- Frequency 50...60 Hz
- Design Details MULTIVERT® 1.150.000 with integrated C.T. 250/5A, 3,75 VA, class 1 for single pole measurement (ready fitted in pole 1)
- Rated Impulse Withstand Voltage 12 kV
- Comments Cable termination components : 3 M10 bolts
- Sell Pack Height 7.68 in
- Ampere Rating 250 A
- ROHS Compliant Yes
- Power Dissipation by Ith without Fuse-Links 35 W
- Product Height 26.97 in
- Rated voltage AC IEC 690 V
- Degree of Pollution 3
- Max Power dissipation of Fuse Links Pn 23 W
- Sell Pack Weight 10.582 lb
- Switchability 1 x triple pole, 3 x single pole
- Rated SC Withstand 8 kA / 1 s
- Max Power dissipation of Solid Links Pn 2.6 W
- Sell Pack Width 3.94 in
- Rated Duty uninterrupted duty
- Power Dissipation by Ith without Solid Links 90 W
- Sell Pack Quantity 1 EACH
- Number of Poles 3-Pole
- Rated short circuit making capacity with solid links Icm 16 kA
- Product Length 7.48 in
- Rated Insulation Voltage 1000 V
- Installation Mounting Bus bar system 185 mm
- Sell Pack Length 27.09 in
- Utilization Category AC22B @ Ue = AC 690 V; Ie = 250 A
- Short Circuit Current Rating (SCCR) 120kA@Ue = AC 400 V; Ie = 250 A / 120kA@Ue = AC 500 V; Ie = 250 A / 120kA@Ue = AC 690 V; Ie = 250 A
- Product Weight 10.582 lb
- Catalogue No. 1.150.083
- Fuse Size 1
- Conventional Free Air thermal Current - Solid Links 400 A
- Product Width 3.86 in
- Conventional Free Air thermal Current With Fuse-Links Ith 250 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents R1023193 Specs
1-year warranty
