ICS-G7528A-8GSFP-4XG-HV-HV-T Moxa Data & Networking Devices
Part#:ICS-G7528A-8GSFP-4XG-HV-HV-T
Manufacturer:Moxa
Product Lifecycle:Active
Get a quick Quote!

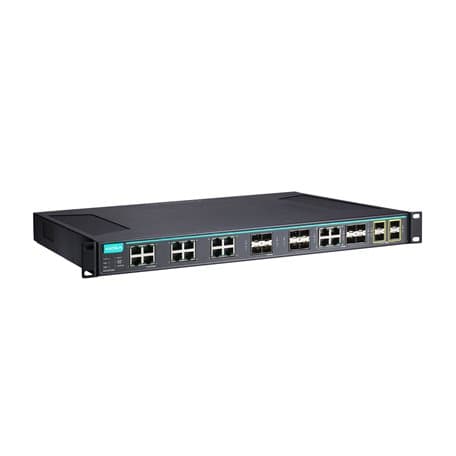

Layer 2 full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 8 100/1000BaseSFP slots, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 4 10GbE SFP+ slots, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temper
Check out the ICS-G7528A-8GSFP-4XG-HV-HV-T Moxa price in the box on the right side or send a quick quote.
Product Details
- 10/100/1000BaseT(X) Ports (RJ45 connector) 12
- DRAM 128 MB
- Console Port USB-serial console (Type B connector)
- Dimensions 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)
- Security Access control list; Broadcast storm protection; HTTPS/SSL; MAB authentication; Sticky MAC; NTP authentication; Port Lock; RADIUS; SSH; TACACS+
- MIB Bridge MIB; Ethernet-like MIB; MIB-II; P-BRIDGE MIB; Q-BRIDGE MIB; RMON MIB Groups 1, 2, 3, 9; RSTP MIB
- Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 4
- Industrial Protocols EtherNet/IP; Modbus TCP; PROFINET
- Digital Inputs +13 to +30 V for state 1; -30 to +1 V for state 0; Max. input current: 8 mA
- Operating Temperature -40 to 75°C (-40 to 167°F)
- EMI CISPR 32, FCC Part 15B Class A
- Management ARP; Back Pressure Flow Control; BOOTP; DDM; DHCP Option 66/67/82; DHCP Server/Client; Flow control; IPv4/IPv6; LLDP; Port Mirror; RARP; RMON; SCP; SMTP; SNMP Inform; SNMPv1/v2c/v3; Syslog; Telnet; TFTP
- Packet Buffer Size 12 Mbits
- Power Consumption Max. 66.41 W @ 110 VAC; Max. 67.96 W @ 220 VAC
- Safety UL 61010-2-201; EN 61010-2-201; UL 62368-1; IEC 62368-1
- Time 536,851 hrs
- Time Management NTP Server/Client; SNTP
- IGMP Groups 4096
- Input Current Max. 1.08 A @ 110 VAC; Max. 0.7 A @ 220 VAC
- Ambient Relative Humidity 5 to 95% (non-condensing)
- 10GbE SFP+ Slots 4
- Flash 16 MB
- Operating Voltage 85 to 264 VAC
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- Vibration IEC 60068-2-6
- Filter 802.1Q; BPDU Filter; BPDU Guard; GMRP; GVRP; IGMP v1/v2/v3
- VLAN ID Range VID 1 to 4094
- Overload Current Protection Supported
- Traffic Control NEMA TS2
- 100/1000BaseSFP Ports 8
- Max. No. of VLANs 256
- Storage Port USB Type A
- Alarm Contact Channels Relay output with current carrying capacity of 2 A @ 30 VDC
- Reverse Polarity Protection Supported
- Freefall IEC 60068-2-32
- Standards IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1p for Class of Service; IEEE 802.1Q for VLAN Tagging; IEEE 802.1s for Multiple Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1X for authentication; IEEE 802.3 for 10Ba
- MAC Table Size 16 K
- IP Rating IP30
- Railway EN 50121-4
- Redundancy Protocols Link Aggregation; MRP; MSTP; RSTP; Turbo Chain; Turbo Ring v1/v2; V-ON
- Jumbo Frame Size 9.6 KB
- Input Voltage 100 to 240 VAC; Redundant dual inputs
- Installation Rack mounting
- Shock IEC 60068-2-27
- Priority Queues 8
- Weight 6470 g (14.26 lb)
- EMC EN 55032/35; EN 61000-6-2/-6-4
- Warranty Period 5 years
- EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
