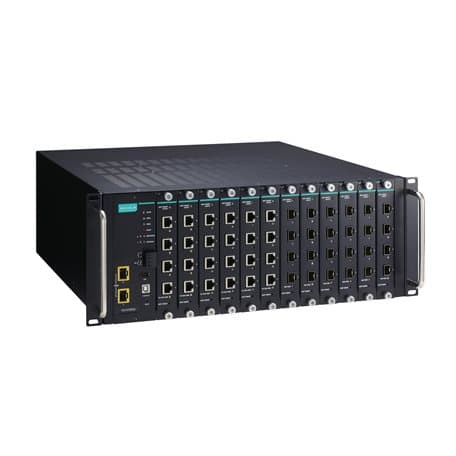

ICS-G7850A-2XG-HV-HV Moxa Data & Networking Devices
Part#:ICS-G7850A-2XG-HV-HV
Manufacturer:Moxa
Product Lifecycle:Active
Get a quick Quote!
Layer 3 full Gigabit modular managed Ethernet switch system with 2 10GbE SFP+ slots, 12 slots for 4-port Gigabit Ethernet interface modules, 2 isolated power supplies (85 to 264 VAC), for a total of up to 48G + 2 10GbE ports, 0 to 60°C operating temperatu
Check out the ICS-G7850A-2XG-HV-HV Moxa price in the box on the right side or send a quick quote.
Product Details
- Redundancy Protocols Link Aggregation; MRP; MSTP; RSTP; Turbo Chain; Turbo Ring v1/v2; V-ON
- Unicast Routing OSPF; RIPV1/V2; Static Route
- Console Port USB-serial console (Type B connector)
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Vibration IEC 60068-2-6
- Multicast Routing DVMRP; PIM-DM; PIM-SM; PIM-SSM
- MIB Bridge MIB; Ethernet-like MIB; MIB-II; P-BRIDGE MIB; Q-BRIDGE MIB; RMON MIB Groups 1, 2, 3, 9; RSTP MIB
- Packet Buffer Size 12 Mbits
- Overload Current Protection Supported
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- Warranty Period 5 years
- 10GbE SFP+ Slots 2
- Security Access control list; Broadcast storm protection; HTTPS/SSL; MAB authentication; Sticky MAC; NTP authentication; Port Lock; RADIUS; SSH; TACACS+
- Max. No. of VLANs 256
- Power Consumption (Max.) 109.68/117.8 W @ 110/220 VAC; Note: These are the power consumption ratings for the device with the maximum number of modules installed.
- Weight 12900 g (28.5 lb)
- Freefall IEC 60068-2-32
- Routing Redundancy VRRP
- MAC Table Size 16 K
- Total PoE Power Budget Installed with IM-G7000A-4PoE Module: Maximum 1,440 W @ 48 VDC
- Installation Rack mounting
- Railway EN 50121-4
- Filter 802.1Q; BPDU Filter; BPDU Guard; GMRP; GVRP; IGMP v1/v2/v3; QinQ VLAN
- Flash 16 MB
- Input Current 1.1/0.72 A @ 110/220 VAC; Note: These are the input current ratings for the device with the maximum number of modules installed.
- EMI CISPR 32, FCC Part 15B Class A
- Digital Inputs +13 to +30 V for state 1; -30 to +1 V for state 0; Max. input current: 8 mA
- Time Management NTP Server/Client; SNTP
- VLAN ID Range VID 1 to 4094
- IP Rating IP30
- EMC EN 55032/35
- Standards IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1p for Class of Service; IEEE 802.1Q for VLAN Tagging; IEEE 802.1s for Multiple Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1X for authentication; IEEE 802.3 for 10Ba
- Jumbo Frame Size 9.6 KB
- Storage Port USB Type A
- Dimensions 440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in)
- Shock IEC 60068-2-27
- Alarm Contact Channels Relay output with current carrying capacity of 2 A @ 30 VDC
- Industrial Protocols EtherNet/IP; Modbus TCP
- Operating Voltage 85 to 264 VAC
- Operating Temperature -10 to 60°C (14 to 140°F)
- Slot Combination 12 slots for 4-port interface modules (10/100/1000BaseT(X), or PoE+ 10/100/1000BaseT(X), or 100/1000BaseSFP slots) See the IM-G7000A datasheet for Gigabit Ethernet module product information.
- DRAM 128 MB
- Input Voltage 110 to 220 VAC; Redundant dual inputs
- Safety EN 61010-2-201; UL 61010-2-201
- Management ARP; Back Pressure Flow Control; BOOTP; DDM; DHCP Option 66/67/82; DHCP Server/Client; Flow control; IPv4; LLDP; Port Mirror; RARP; RMON; SCP; SMTP; SNMP Inform; SNMPv1/v2c/v3; Syslog; Telnet; TFTP
- IGMP Groups 4096
- Priority Queues 8
- Reverse Polarity Protection Supported
- EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
- Time 282,329 hrs
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents ICS-G7850A-2XG-HV-HV Specs
1-year warranty
