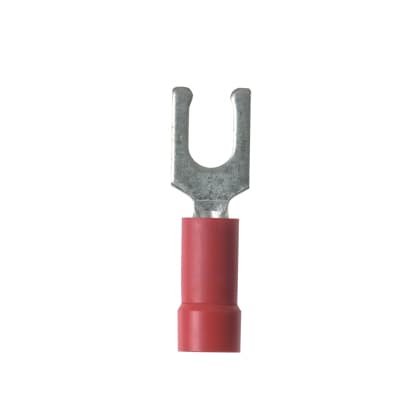

PV18-8LF-CY Panduit Electronic Components

Product Details

• Insulation Material
  Vinyl
• Insulation Type
  Vinyl
• Wire Strip Length (mm)
  7.9
• Flammability Rating
  UL 94 V-0
• Stud Hole Size (mm)
  4.1
• Note
  PV18-8LF-CY replaces PV18-8LF-C
• Minimum Metric Conductor Size (mm²)
  0.5
• Maximum Voltage (V)
  600
• Maximum Operating Temperature (°C)
  105
• Overall Width (mm)
  7.4
• Fork Type
  Locking Fork
• Maximum Metric Conductor Size (mm²)
  1
• Base Material
  Copper
• Insulation Diameter (mm)
  3.8
• Overall Length (In.)
  0.97
• Minimum Wire Size (AWG)
  #22
• Standards Met
  UL Listed UL486A-486B ; CSA Certified C22.2 No.65
• Barrel Length (mm)
  12.3
• Stud Hole Size (In.)
  4/25
• Tongue Width (In.)
  0.29
Sub Brand
Pan-Term®
Maximum Copper Conductor Size (AWG)
#18
Minimum Copper Conductor Size (AWG)
#22
Finish/Coating
Tin-Plated
Maximum Wire Insulation Diameter (In.)
0.15
Tongue Length (In.)
0.49
PV18-8LF-CY
7.4
Maximum Wire Size (AWG)
#18
Wire Strip Length (In.)
0.31
Barrel Length (In.)
0.49
Maximum Wire Insulation Diameter (mm)
3.8
Tongue Thickness (In.)
0.03
Maximum Copper Conductor Size (AWG STR)
#18
Minimum Copper Conductor Size (AWG SOL)
#22
Color Code
Red
Maximum Operating Temperature (°F)
221
Overall Width (In.)
0.29
Product Type
Loose Piece Forks
Minimum Copper Conductor Size (AWG STR)
#22
Maximum Voltage (kV)
0.6
Seam Type
Brazed
Overall Length (mm)
24.6
Tongue Width (mm)
7.4
Maximum Copper Conductor Size (AWG SOL)
#18
Stud Size
#8
Barrel Type
Funnel
Insulation Diameter (In.)
0.15
Tongue Length (mm)
12.3
Tongue Thickness (mm)
0.8
Packaging Type
Bottle
For Use With
CT-100, CT-1550, CT-1551
Part Features
Locks in place for secure connection Fork design provides for fast and easy installation, without the need to remove fastener Insulation support helps to prevent wire damage in bending applications Internal barrel serrations assure good wire contac

Related documents PV18-8LF-CY Specs
