PV18-8R-CY Panduit Electronic Components
Part#:PV18-8R-CY
Manufacturer:Panduit
Product Lifecycle:Active
In-stock parts: 61
Jan 5, 2026

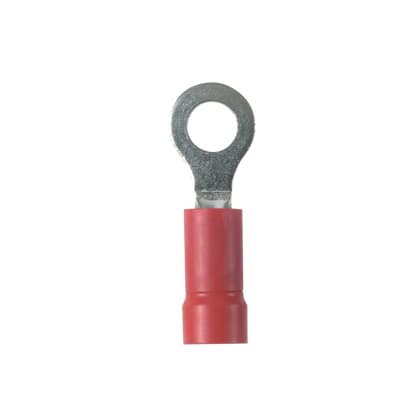

Panduit PV18-8R-CY Vinyl Insulated Ring
About the manufacturer: Panduit is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Panduit, a top provider of infrastructure products and services for data networks and electrical power applications, assists in developing connectivity solutions that can significantly enhance your business success by improving the quality of your infrastructure.
Check out the PV18-8R-CY Panduit price in the box on the right side or send a quick quote.
Product Details
- Maximum Voltage (V) 600
- Maximum Copper Conductor Size (AWG STR) #16
- Base Material Copper
- Maximum Wire Insulation Diameter (mm) 3.8
- Tongue Thickness (In.) 0.03
- Minimum Copper Conductor Size (AWG SOL) #22
- Maximum Voltage (kV) 0.6
- Seam Type Brazed
- Product Type Loose Piece Ring Terminal
- Maximum Copper Conductor Size (AWG SOL) #16
- Standards Met UL 486A/B, and CSA 22.2 No.65
- Maximum Operating Temperature (°F) 221
- Tongue Width (mm) 7.9
- Maximum Metric Conductor Size (mm²) 1.5
- Color Code Red
- Overall Width (In.) 0.31
- Packaging Type Bottle
- Minimum Copper Conductor Size (AWG STR) #22
- Finish/Coating Tin-Plated
- Overall Length (mm) 23.1
- Tongue Thickness (mm) 0.8
- Insulation Material Vinyl
- Wire Strip Length (mm) 7.9
- Barrel Type Funnel
- Overall Length (In.) 0.91
- Part Features • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength
- Note PV18-8R-CY replaces PV18-8R-C
- Minimum Metric Conductor Size (mm²) 0.5
- Flammability Rating UL94V-0
- Sub Brand Pan-Term®
- Stud Size #8
- Wire Strip Length (In.) 5/16
- Maximum Operating Temperature (°C) 105
- Tongue Width (In.) 0.31
- Maximum Wire Insulation Diameter (In.) 0.15
- Overall Width (mm) 7.9
- For Use With CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
