AZM201Z-CC-T-1P2PW Schmersal Safety Switches
Part#:AZM201Z-CC-T-1P2PW
Manufacturer:Schmersal
Alt. Part#:103013912
Product Lifecycle:Active
Get a quick Quote!

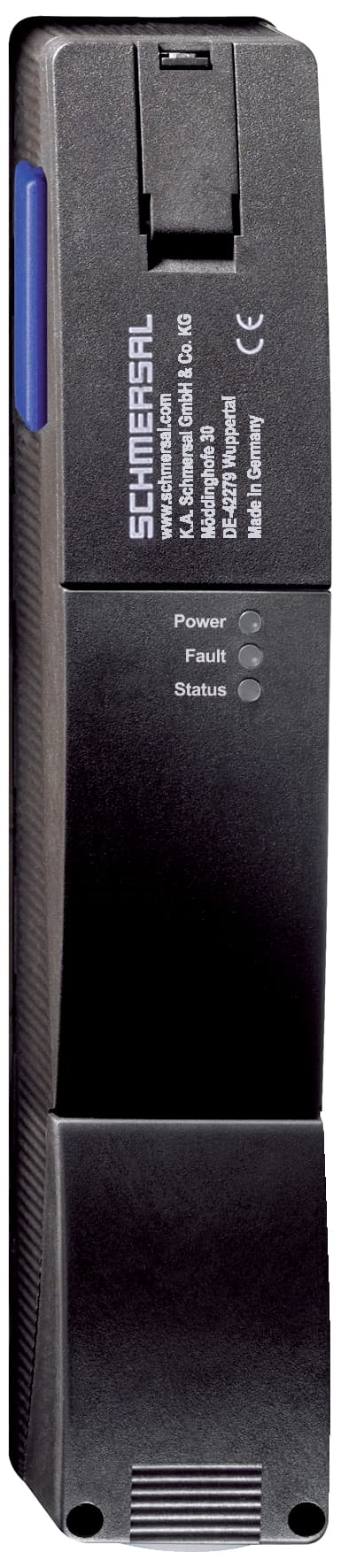

AZM201Z-CC-T-1P2PW Schmersal - Solenoid interlocks; Power to unlock; Guard locking monitored; Thermoplastic enclosure; Max. length of the sensor chain 200 m; Self-monitoring series-wiring; Coding in accordance to ISO 14119 by using RFID-Technology; 3 LEDs to show operating conditions;
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM201Z-CC-T-1P2PW Schmersal price in the box on the right side or send a quick quote.
Product Details
- Response time safety outputs in case of switch-off by actuator, maximum 100 ms
- Active principle RFID
- Short-circuit recognition Yes
- Integral System Diagnostics, status Yes
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Ambient temperature, minimum -25 °C
- Rated impulse withstand voltage Uimp 0.8 kV
- Switching frequency, approx. 1 Hz
- Voltage drop Ud, maximum 4 V
- Response time safety outputs in case of switch-off by safety inputs, maximum 0.5 ms
- Mechanical life, minimum 1,000,000 Operations
- Wire cross-section, minimum 23 AWG
- Relative humidity, minimum 30 %
- Restistance to shock 30 g / 11 ms
- Switching thresholds −3 V … 5 V (Low), 15 V … 30 V (High)
- Voltage, Utilisation category DC13 24 VDC
- Degree of pollution to VDE 0100 3
- general information Universal coding
- Duration of risk, maximum 200 ms
- Series-wiring Yes
- Latching force 30 N
- Wire cross-section, maximum 15 AWG
- Storage and transport temperature, minimum -25 °C
- Rated operating current (safety outputs) 250 mA
- Operating current 50 mA
- Standards IEC 60947-5-1, EN ISO 13849-1, IEC 61508
- Time to readiness, maximum 4,000 ms
- Power to unlock Yes
- Actuating speed, maximum 0.2 m/s
- Width of sensor 40 mm
- Note (Relative humidity) non-condensing
- Operating voltage, minimum 20.4 VDC
- Classification ZVEI CB24I, Sink C1, C2
- Current, Utilisation category DC13 0.05 A
- Degree of protection IP66 to EN 60529, IP67 to EN 60529
- Coding level according to ISO 14119 Low
- Gross weight 566.1 g
- Enclosure material Glass-fibre, reinforced thermoplastic
- Cable section, minimum 0.25 mm²
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz, amplitude 0.35 mm
- Current consumption with solenoid ON, peak 700 mA / 100 ms
- Guard locking monitored Yes
- Safety functions Yes
- Number of safety contacts 2
- Cable section, maximum 1.5 mm²
- Storage and transport temperature, maximum +85 °C
- Rated insulation voltage Ui 32 VDC
- Current consumption with solenoid ON, average 200 mA
- Short circuit detection Yes
- Clamping force, maximum Fmax 2,600 N
- Relative humidity, maximum 95 %
- No-load supply current I0 50 mA
- Current leakage Ir 0.5 mA
- Manual release Yes
- Clamping force in accordance with ISO14119 Fzh 2,000 N
- Length of sensor 50 mm
- Height of sensor 220 mm
- Protection rating III
- Operating voltage, maximum 26.4 VDC
- Terminal Connector Spring pulley connection
- Ambient temperature, maximum +60 °C
- Overvoltage category III
- Classification ZVEI CB24I, Source C2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
AZM201Z-CC-T-1P2PW Description
AZM201Z-CC-T-1P2PW Schmersal - Solenoid interlocks; Power to unlock; Guard locking monitored; Thermoplastic enclosure; Max. length of the sensor chain 200 m; Self-monitoring series-wiring; Coding in accordance to ISO 14119 by using RFID-Technology; 3 LEDs to show operating conditions;
Related documents AZM201Z-CC-T-1P2PW Specs
