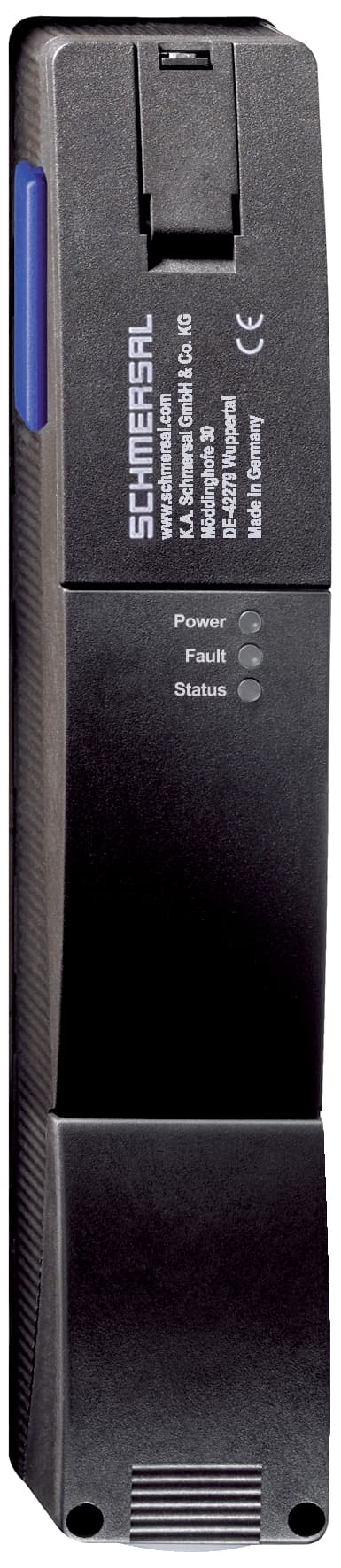

AZM201Z-I1-SK-T-1P2PW Schmersal Safety Switches
Part#:AZM201Z-I1-SK-T-1P2PW
Manufacturer:Schmersal
Alt. Part#:103013483
Product Lifecycle:Active
Get a quick Quote!
AZM201Z-I1-SK-T-1P2PW Schmersal - Solenoid interlocks; Individual coding with RFID technology; Power to unlock; Guard locking monitored; Thermoplastic enclosure; Max. length of the sensor chain 200 m; Self-monitoring series-wiring; Coding in accordance to ISO 14119 by using RFID-Technolog
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM201Z-I1-SK-T-1P2PW Schmersal price in the box on the right side or send a quick quote.
Product Details
- Current, Utilisation category DC13 0.05 A
- Coding level according to ISO 14119 High
- Short circuit detection Yes
- Series-wiring Yes
- Wire cross-section, maximum 15 AWG
- Ambient temperature, minimum -25 °C
- Restistance to shock 30 g / 11 ms
- Operating voltage, minimum 20.4 VDC
- general information Individual coding
- Gross weight 588 g
- Safety functions Yes
- Wire cross-section, minimum 23 AWG
- Storage and transport temperature, minimum -25 °C
- No-load supply current I0 50 mA
- Switching thresholds −3 V … 5 V (Low), 15 V … 30 V (High)
- Rated operating current (safety outputs) 250 mA
- Time to readiness, maximum 4,000 ms
- Guard locking monitored Yes
- Latching force 30 N
- Number of safety contacts 2
- Relative humidity, minimum 30 %
- Rated impulse withstand voltage Uimp 0.8 kV
- Current leakage Ir 0.5 mA
- Classification ZVEI CB24I, Source C2
- Active principle RFID
- Integral System Diagnostics, status Yes
- Terminal Connector Screw connection
- Cable section, maximum 1.5 mm²
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz, amplitude 0.35 mm
- Current consumption with solenoid ON, average 200 mA
- Enclosure material Glass-fibre, reinforced thermoplastic
- Duration of risk, maximum 200 ms
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Degree of protection IP66 to EN 60529, IP67 to EN 60529
- Rated insulation voltage Ui 32 VDC
- Operating current 50 mA
- Response time safety outputs in case of switch-off by actuator, maximum 100 ms
- Standards IEC 60947-5-1, EN ISO 13849-1, IEC 61508
- Clamping force in accordance with ISO14119 Fzh 2,000 N
- Length of sensor 50 mm
- Note (Relative humidity) non-condensing
- Overvoltage category III
- Classification ZVEI CB24I, Sink C1, C2
- Power to unlock Yes
- Clamping force, maximum Fmax 2,600 N
- Width of sensor 40 mm
- Ambient temperature, maximum +60 °C
- Degree of pollution to VDE 0100 3
- Operating voltage, maximum 26.4 VDC
- Voltage, Utilisation category DC13 24 VDC
- Manual release Yes
- Short-circuit recognition Yes
- Actuating speed, maximum 0.2 m/s
- Height of sensor 220 mm
- Relative humidity, maximum 95 %
- Current consumption with solenoid ON, peak 700 mA / 100 ms
- Response time safety outputs in case of switch-off by safety inputs, maximum 0.5 ms
- Mechanical life, minimum 1,000,000 Operations
- Cable section, minimum 0.25 mm²
- Storage and transport temperature, maximum +85 °C
- Protection rating III
- Switching frequency, approx. 1 Hz
- Voltage drop Ud, maximum 4 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
AZM201Z-I1-SK-T-1P2PW Description
AZM201Z-I1-SK-T-1P2PW Schmersal - Solenoid interlocks; Individual coding with RFID technology; Power to unlock; Guard locking monitored; Thermoplastic enclosure; Max. length of the sensor chain 200 m; Self-monitoring series-wiring; Coding in accordance to ISO 14119 by using RFID-Technolog
Related documents AZM201Z-I1-SK-T-1P2PW Specs
