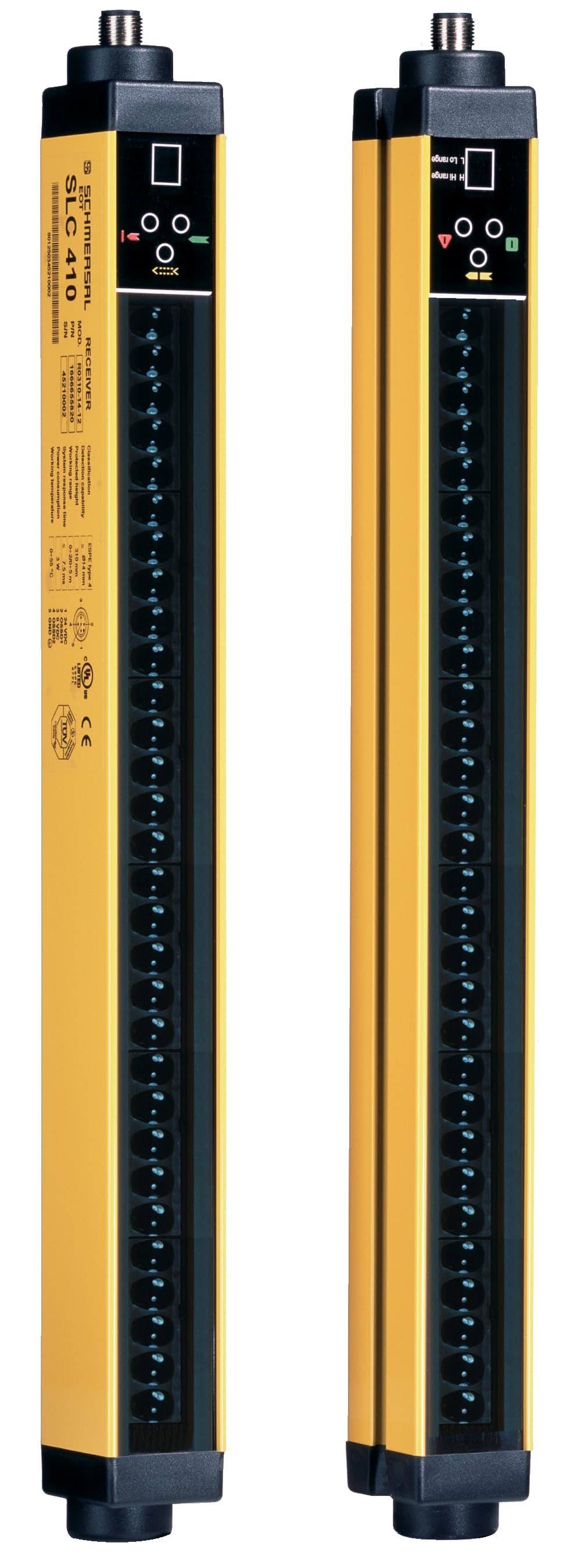

SLC 210-E/R0460-90-RF Schmersal Safety Light Curtains
Part#:SLC 210-E/R0460-90-RF
Manufacturer:Schmersal
Alt. Part#:101185660
Product Lifecycle:Discontinued
Get a quick Quote!
Safety light grids and curtains (Archive); Safety light curtains (archive); NOTICE: Not available! (Replacement: SLC 220); Control Category 2
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SLC 210-E/R0460-90-RF Schmersal price in the box on the right side or send a quick quote.
Product Details
- Integral System Diagnostics, status Yes
- Height of the protection field 460 mm
- Ambient temperature, maximum +55 °C
- Output current, (fail-safe output), maximum 0.5 A
- Standards IEC/EN 61496-1/-2
- Number of fail-safe digital outputs 2
- Range, protection field, maximum 18,000 mm
- Protection rating III
- Versions p-type
- Reaction time, maximum 6 ms
- Terminal, Connector, Transmitter Connector plug M12, 5-pole
- Voltage type DC (direct current)
- Integral System Diagnostics Yes
- Range, protection field, minimum 0 mm
- Width of sensor 45 mm
- Electrical power consumption of the receiver 3 W
- Enclosure material Aluminium
- Wave length of the sensor 950 nm
- Height of sensor 561 mm
- Switching voltage OSSD, HIGH signal 24 V
- Restart interlock (manual reset) Yes
- Length of the connectable cable, maximum 100 m
- Storage and transport temperature, maximum +70 °C
- Degree of protection IP65 to EN 60529
- Gross weight 3,500 g
- Number of beams 7
- Terminal connector, Recipient Connector plug M12, 8-pole
- Ambient temperature, minimum +0 °C
- Beam coding available Yes
- Terminal Connector Connector
- Length of sensor 35 mm
- Storage and transport temperature, minimum -20 °C
- Electrical power consumption of the transmitter 2 W
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SLC 210-E/R0460-90-RF Specs
