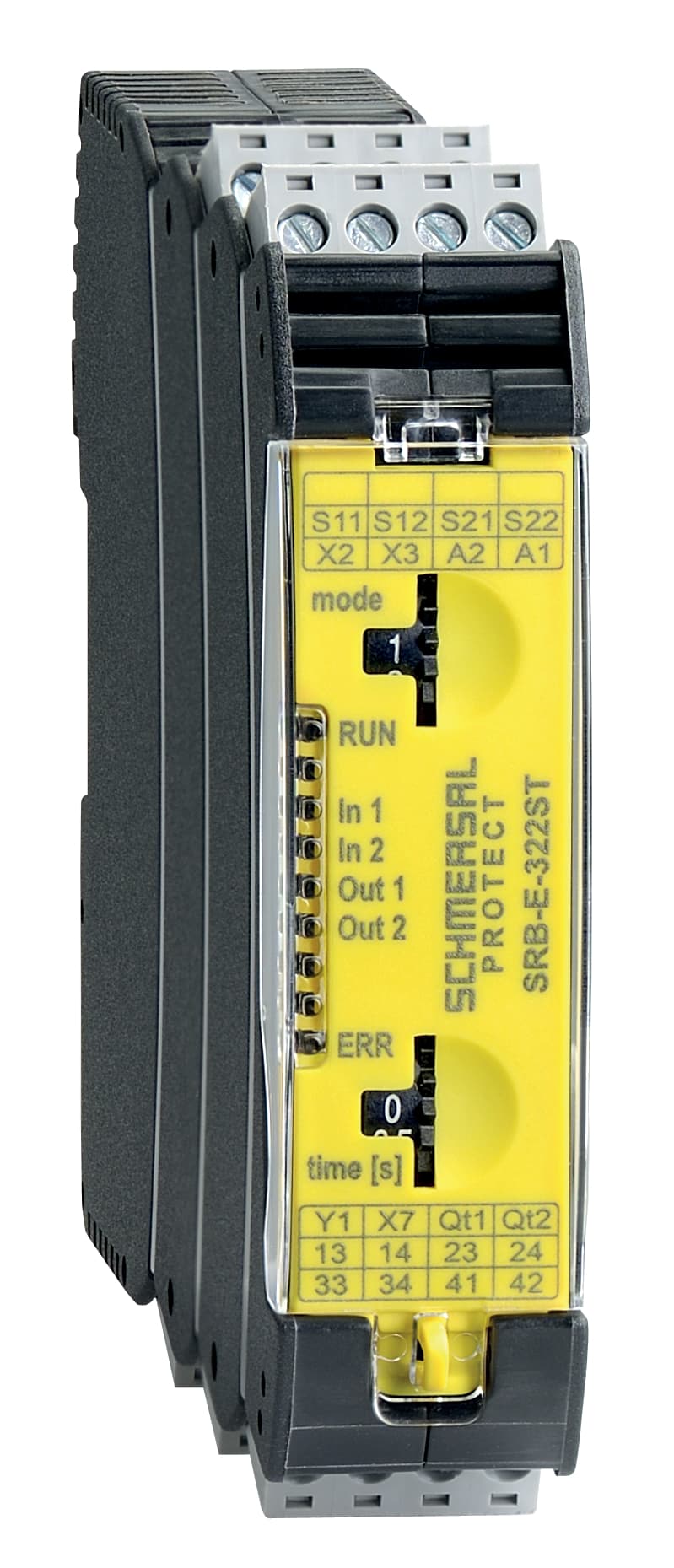

SRB-E-322ST Schmersal Safety Controllers
Part#:SRB-E-322ST
Manufacturer:Schmersal
Alt. Part#:103008184
Product Lifecycle:Active
Get a quick Quote!
SRB-E-322ST Schmersal - Safety-monitoring modules; Stop category 1 (multifunctional); STOP 0 / 1 Function; 1 oder 2-channel control; 3 safety contacts STOP 0; 2 Safety outputs STOP 1; Drop-out delay 0 … 30
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Controllers that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB-E-322ST Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the contacts, electrical Ag-Ni, self-cleaning, positive drive
- Feedback circuit Yes
- Earth connection detection Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Number of signalling outputs 1
- Depth 115 mm
- Degree of protection of the enclosure IP40
- Rated impulse withstand voltage, relay output Uimp 4 kV
- Restistance to shock 30 g / 11 ms
- Electrical power consumption 3 W
- Note (Contact resistance) in new state
- Current, Utilisation category DC13 2 A
- Current, Utilisation category DC12 0.1 A
- Switching capacity, maximum 1 A
- Number of auxiliary contacts 1
- Terminal designations IEC/EN 60947-1
- Degree of protection of the mounting space IP54
- Overvoltage category III
- Drop-out delay in case of power failure, typically 10 ms
- Voltage, Utilisation category DC13 24 VDC
- Wire breakage detection Yes
- Automatic reset function Yes
- Number of LEDs 6
- Terminal Connector Screw connection, plug-in, rigid or flexible
- Degree of protection of clips or terminals IP20
- Rated operating voltage 24 VDC -20%/+20%, residual ripple max. 10%
- Current leakage Ir 1 mA
- Switching capacity, minimum 10 VDC
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Gross weight 180 g
- Integral System Diagnostics, error code Yes
- Cable section, minimum 0.25 mm²
- Storage and transport temperature, minimum -40 °C
- Rated AC voltage for controls at DC minimum 19.2 VDC
- Voltage drop Ud, maximum 0.5 V
- Conduction resistance, maximum 40 Ω
- EMC rating EMC-Directive
- Stop-Category 0, 1
- Reset edge detection Yes
- Number of Safety contacts, STOP 0 3
- Height 98 mm
- Storage and transport temperature, maximum +85 °C
- Contact resistance, maximum 0.1 Ω
- Voltage, Utilisation category DC12 24 VDC
- Short-circuit recognition Yes
- Number of openers 2
- Number of shutters 1
- Tightening torque of Clips 0.5 Nm
- Ambient temperature, minimum -25 °C
- Degree of pollution to IEC/EN 60664-1 2
- Pull-in delay at RESET, typically 150 ms
- Voltage, Utilisation category, DC13 24 VDC
- Removable Terminals Yes
- Integral System Diagnostics, status Yes
- Mechanical life, minimum 10,000,000 Operations
- Width 22.5 mm
- Resistance to vibrations to EN 60068-2-6 10 ... 55 Hz, Amplitude 0.35 mm
- Pull-in delay at automatic start, maximum, typically 150 ms
- Voltage, Utilisation category, AC15 230 VAC
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Start input Yes
- Number of fail-safe outputs, Stop 1 2
- Cable section, maximum 2.5 mm²
- Ambient temperature, maximum +60 °C
- Rated control voltage at DC, maximum 28.8 VDC
- Switching frequency, maximum 0.3 Hz
- Current, Utilisation category, DC13 4 A
- Rated impulse withstand voltage, semiconductor output Uimp 0.8 kV
- Drop-out delay in case of emergency, typically 10 ms
- Current, Utilisation category, AC15 4 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SRB-E-322ST Description
SRB-E-322ST Schmersal - Safety-monitoring modules; Stop category 1 (multifunctional); STOP 0 / 1 Function; 1 oder 2-channel control; 3 safety contacts STOP 0; 2 Safety outputs STOP 1; Drop-out delay 0 … 30
