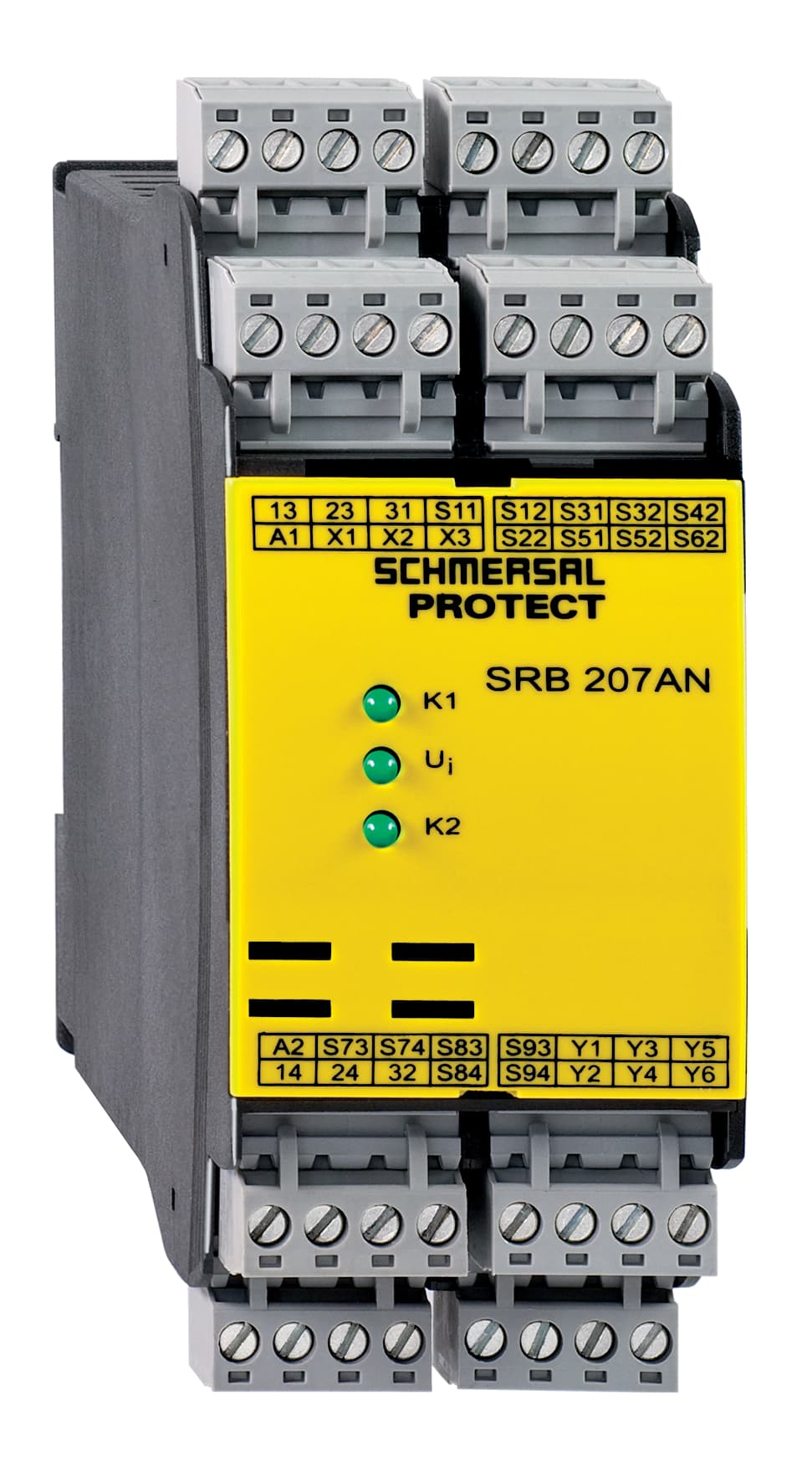

SRB207AN 230VAC Schmersal Electronic Components
Part#:SRB207AN 230VAC
Manufacturer:Schmersal
Alt. Part#:101176472
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 0; Suitable for the signal processing of outputs with contact sensors; 2 safety contacts, STOP 0; 6 Signalling outputs; Multi-evaluation of up to 6 safety guards; Suitable for the signal processing of outputs with
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB207AN 230VAC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Short-circuit recognition Yes
- Reset edge detection Yes
- Number of auxiliary contacts 1, 7
- Cable section, minimum 0.25 mm²
- Width 45 mm
- Degree of pollution to IEC/EN 60664-1 2
- Gross weight 400 g
- Climatic stress EN 60068-2-78
- Number of Snap-in contacts, minimum 1
- Cable section, maximum 2.5 mm²
- Degree of protection of clips or terminals IP20
- EMC rating EMC-Directive
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Start input Yes
- Number of LEDs 3
- Degree of protection of the enclosure IP40
- Storage and transport temperature, maximum +85 °C
- Overvoltage category III
- Material of the contacts, electrical AgSn0. self-cleaning, positive drive
- Automatic reset function Yes
- Terminal Connector Screw connection, rigid or flexible
- Tightening torque of Clips 0.6 Nm
- Ambient temperature, minimum -25 °C
- Restistance to shock 30 g / 11 ms
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Electronic Fuse Yes
- Mechanical life, minimum 10,000,000 Operations
- Terminal designations IEC/EN 60947-1
- Ambient temperature, maximum +45 °C
- Frequency range 50 Hz, 60 Hz
- Rated control voltage at DC, maximum 28.8 VDC
- Voltage, Utilisation category AC15 230 VAC
- Stop-Category 0
- Earth connection detection Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Degree of protection of the mounting space IP54
- Rated impulse withstand voltage Uimp 4 kV
- Rated AC voltage for controls, 60 Hz, minimum 48 VAC
- Pull-in delay at RESET, typically 20 ms
- Wire breakage detection Yes
- Removable Terminals Yes
- Number of signalling outputs 6
- Number of Snap-in contacts, maximum 6
- Height 100 mm
- Storage and transport temperature, minimum -40 °C
- Rated operating voltage 48 ... 240 VAC
- Feedback circuit Yes
- Integral System Diagnostics, status Yes
- Number of safety contacts 2
- Depth 121 mm
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated AC voltage for controls, 50 Hz, minimum 48 VAC
- Contact resistance, maximum 0.1 Ω
- Voltage, Utilisation category DC13 24 VDC
- Rated control voltage at AC 50 Hz, maximum 240 VAC
- Pull-in delay at automatic start, maximum, typically 100 ms
- Current, Utilisation category AC-15 6 A
- Switching capacity, maximum 2 A
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Switching frequency, maximum 3 Hz
- Conduction resistance, maximum 40 Ω
- Note (Contact resistance) in new state
- Rated control voltage at AC 60 Hz, maximum 240 VAC
- Drop-out delay in case of emergency, typically 20 ms
- Current, Utilisation category DC13 6 A
- Electrical power consumption 6.8 W
- Drop-out delay in case of power failure, typically 80 ms
- Voltage, Utilisation category DC12 24 VDC
- Switching capacity, minimum 10 mA
- Current, Utilisation category DC12 0.1 A
