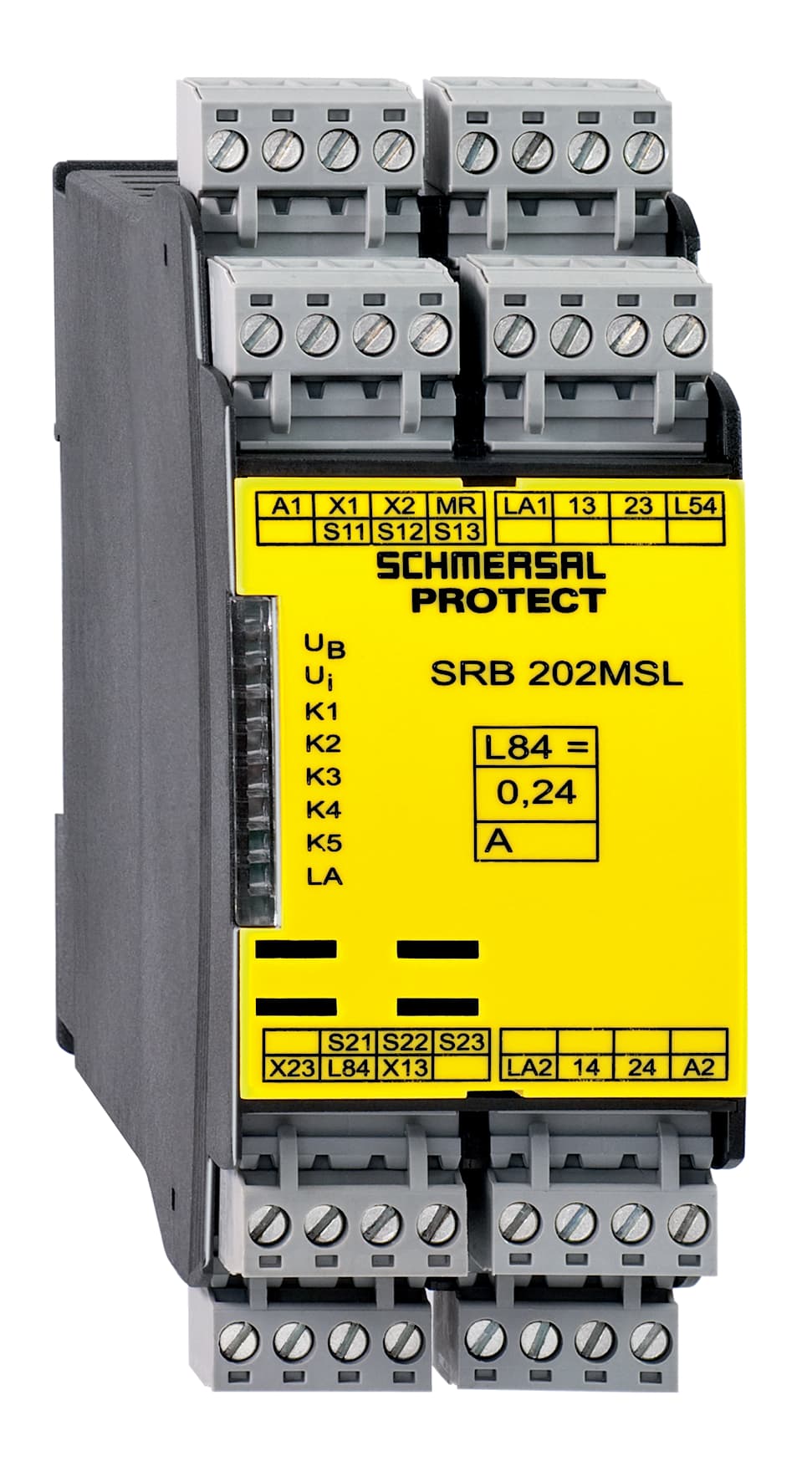

SRB202MSL Schmersal Electronic Components
Part#:SRB202MSL
Manufacturer:Schmersal
Alt. Part#:101181998
Product Lifecycle:Active
Get a quick Quote!
Muting monitoring; Muting signalling device monitoring; 2 safety contacts, STOP 0; 2 Signalling outputs
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB202MSL Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the contacts, electrical AgSn0, Ag-Ni, self-cleaning, positive drive
- Reset after disconnection of supply voltage Yes
- Number of openers 2
- Degree of protection of the enclosure IP40
- Overvoltage category III
- Conduction resistance, maximum 40 Ω
- Electronic Fuse Yes
- Automatic reset function Yes
- Mechanical life, minimum 10,000,000 Operations
- Width 45 mm
- Storage and transport temperature, maximum +85 °C
- Rated control voltage at DC, maximum 28.8 VDC
- Stop-Category 0
- Wire breakage detection Yes
- Number of safety contacts 2
- Tightening torque of Clips 0.6 Nm
- Restistance to shock 30 g / 11 ms
- Rated operating voltage 24 VDC -15%/+20%, residual ripple max. 10%
- Note (Contact resistance) in new state
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Number of signalling outputs 2
- Height 100 mm
- Storage and transport temperature, minimum -40 °C
- Drop-out delay in case of power failure, typically 60 ms
- Utilisation category DC-13 2 A
- Contact resistance, maximum 0.1 Ω
- Climatic stress EN 60068-2-78
- Earth connection detection Yes
- Feedback circuit Yes
- Terminal designations IEC/EN 60947-1
- Degree of protection of the mounting space IP54
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Frequency range 50 Hz, 60 Hz
- Drop-out delay in case of emergency stop, maximum 20 ms
- Short-circuit recognition Yes
- Number of LEDs 8
- Removable Terminals Yes
- Depth 121 mm
- Ambient temperature, maximum +45 °C
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Pull-in delay at automatic start, maximum, typically 200 ms
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Integral System Diagnostics, status Yes
- Cable section, maximum 2.5 mm²
- Mounting Snaps onto standard DIN rail to EN 60715
- Ambient temperature, minimum -25 °C
- Degree of pollution to IEC/EN 60664-1 2
- Drop-out delay in case of emergency, typically 17 ms
- Gross weight 400 g
- Number of auxiliary contacts 2
- Terminal Connector Screw connection, rigid or flexible
- Cable section, minimum 0.25 mm²
- Degree of protection of clips or terminals IP20
- Rated impulse withstand voltage Uimp 4 kV
- Electrical power consumption 5.6 W
- EMC rating EMC-Directive
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB202MSL Specs
1-year warranty
