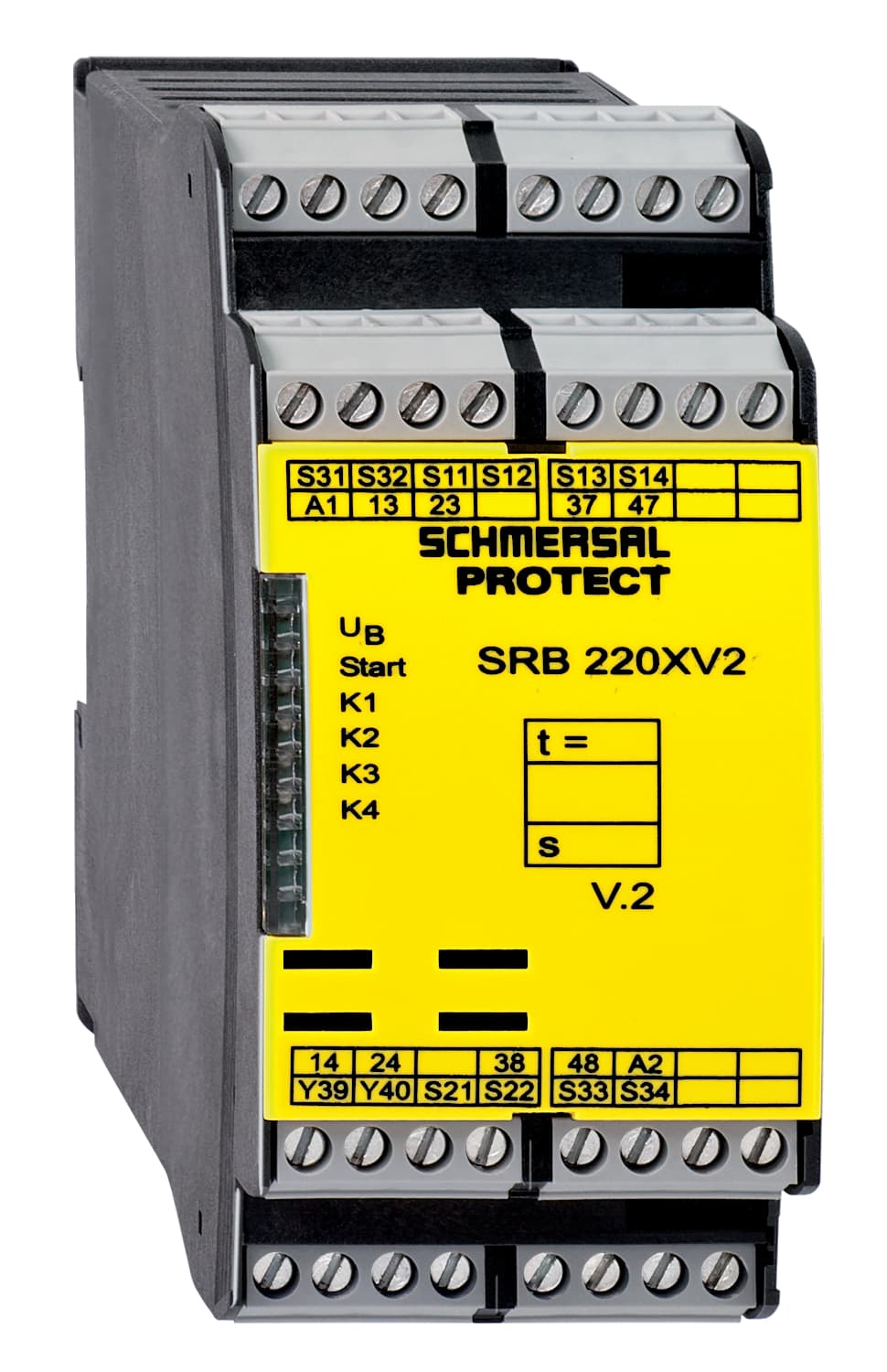

SRB220XV2 / V.2 Schmersal Electronic Components
Part#:SRB220XV2 / V.2
Manufacturer:Schmersal
Alt. Part#:101195578
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 1; 2 safety contacts, STOP 0; 2 safety contacts, STOP 1; Suitable for the signal processing of outputs with contact sensors; Suitable for signal processing of outputs connected to potentials (AOPDs), e.g. safety li
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB220XV2 / V.2 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Stop-Category 0, 1
- Integral System Diagnostics, status Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Degree of protection of the enclosure IP40
- Overvoltage category III
- Rated control voltage at DC, maximum 28.8 VDC
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Number of openers 2
- Electronic Fuse Yes
- Terminal designations IEC/EN 60947-1
- Short-circuit recognition Yes
- Earth connection detection Yes
- Number of Safety contacts, STOP 1 2
- Height 100 mm
- Rated impulse withstand voltage Uimp 4 kV
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Reset edge detection Yes
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of clips or terminals IP20
- Degree of pollution to VDE 0110 2
- Voltage, Utilisation category, DC13 24 VDC
- Voltage, Utilisation category DC12 24 VDC
- Wire breakage detection Yes
- Automatic reset function Yes
- Mechanical life, minimum 10,000,000 Operations
- Width 45 mm
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Note (Contact resistance) in new state
- Gross weight 420 g
- Number of LEDs 5
- Cable section, minimum 0.25 mm²
- Storage and transport temperature, minimum -40 °C
- Depth 121 mm
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -15% / +20%, residual ripple max. 10 %
- Voltage, Utilisation category, AC15 230 VAC
- Current, Utilisation category DC12 0.1 A
- Degree of protection of the mounting space IP54
- Restistance to shock 30 g / 11 ms
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Pull-in delay at automatic start, maximum, typically 250 ms
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- Drop-out delay in case of emergency, typically 30 ms
- Climatic stress EN 60068-2-78
- Start input Yes
- Number of safety contacts 4
- Cable section, maximum 2.5 mm²
- Ambient temperature, minimum -25 °C
- Storage and transport temperature, maximum +85 °C
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Contact resistance, maximum 0.1 Ω
- Current, Utilisation category, DC13 2 A
- Switching capacity, maximum 6 A
- Material of the contacts, electrical AgSn0, Ag-Ni, self-cleaning, positive drive
- Feedback circuit Yes
- Number of Safety contacts, STOP 0 3
- Tightening torque of Clips 0.6 Nm
- Ambient temperature, maximum +60 °C
- Frequency range 50 Hz, 60 Hz
- Switching capacity, minimum 10 mA
- Drop-out delay in case of power failure, typically 80 ms
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Pull-in delay at RESET, typically 20 ms
- Conduction resistance, maximum 40 Ω
- EMC rating EMC-Directive
- Electrical power consumption 5.4 VA
- Current, Utilisation category, AC15 3 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB220XV2 / V.2 Specs
