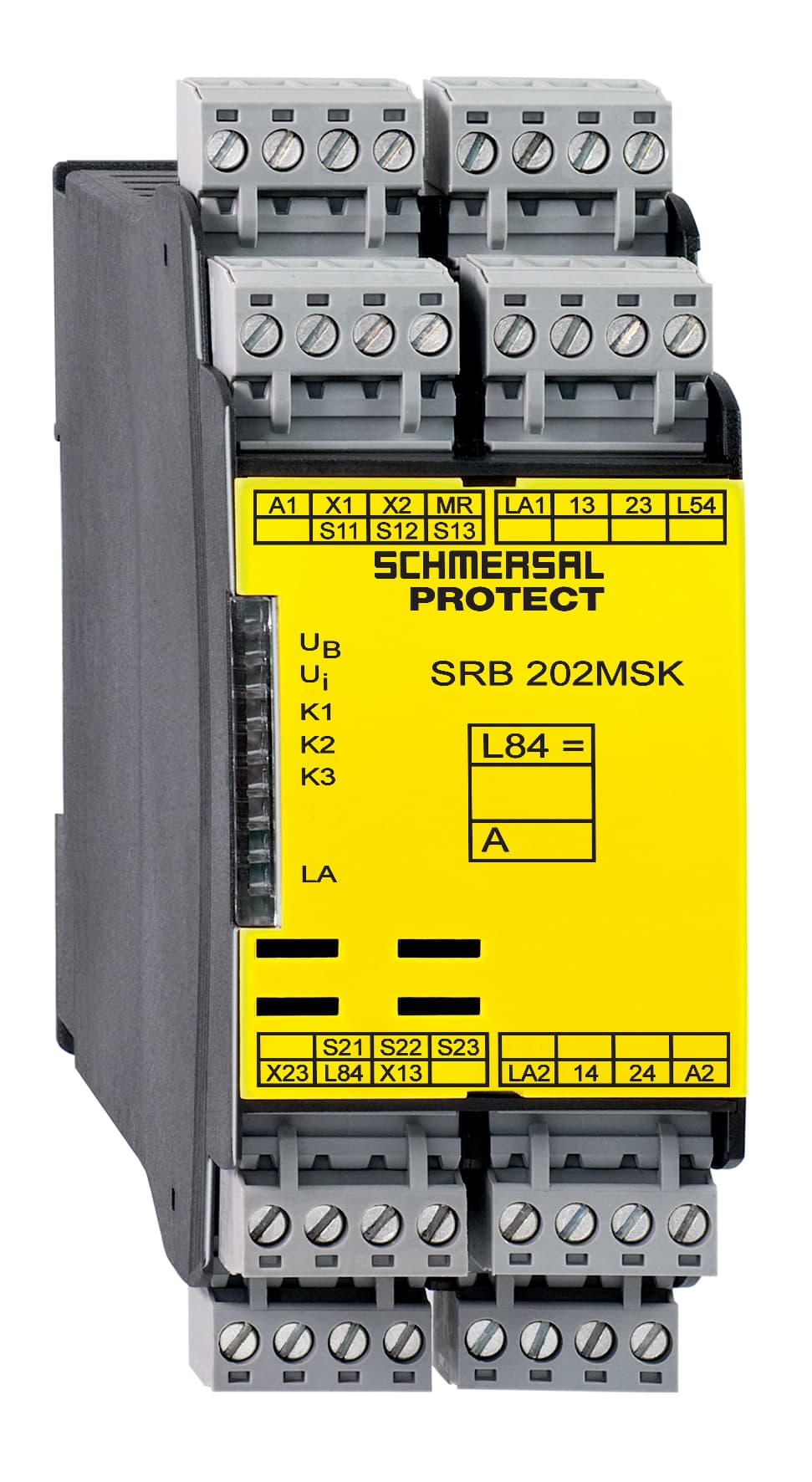

SRB202MSK Schmersal Electronic Components
Part#:SRB202MSK
Manufacturer:Schmersal
Alt. Part#:101191928
Product Lifecycle:Active
Get a quick Quote!
Muting monitoring; Muting signalling device monitoring; 2 safety contacts, STOP 0; 2 Signalling outputs
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB202MSK Schmersal price in the box on the right side or send a quick quote.
Product Details
- Integral System Diagnostics, status Yes
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of the enclosure IP40
- Restistance to shock 30 g / 11 ms
- Note (Contact resistance) in new state
- Stop-Category 0
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Number of safety contacts 2
- Cable section, maximum 2.5 mm²
- Width 45 mm
- Ambient temperature, maximum +45 °C
- Rated control voltage at DC, maximum 28.8 VDC
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Drop-out delay in case of emergency stop, maximum 20 ms
- Conduction resistance, maximum 40 Ω
- Earth connection detection Yes
- Material of the contacts, electrical AgSn0, Ag-Ni, self-cleaning, positive drive
- Wire breakage detection Yes
- Number of signalling outputs 2
- Number of LEDs 8
- Terminal designations IEC/EN 60947-1
- Depth 121 mm
- Degree of protection of clips or terminals IP20
- Gross weight 330 g
- Feedback circuit Yes
- Mechanical life, minimum 10,000,000 Operations
- Height 100 mm
- Storage and transport temperature, maximum +85 °C
- Rated operating voltage 24 VDC -15%/+20%, residual ripple max. 10%
- Electrical power consumption 3.1 W
- Utilisation category DC-13 2 A
- EMC rating EMC-Directive
- Climatic stress EN 60068-2-78
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Number of auxiliary contacts 2
- Mounting Snaps onto standard DIN rail to EN 60715
- Storage and transport temperature, minimum -40 °C
- Removable Terminals Yes
- Number of inputs for NC 2
- Tightening torque of Clips 0.6 Nm
- Ambient temperature, minimum -25 °C
- Overvoltage category III
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Automatic reset function Yes
- Electronic Fuse Yes
- Cable section, minimum 0.25 mm²
- Degree of protection of the mounting space IP54
- Rated impulse withstand voltage Uimp 4 kV
- Degree of pollution to IEC/EN 60664-1 2
- Pull-in delay at automatic start, maximum, typically 200 ms
- Contact resistance, maximum 0.1 Ω
- Drop-out delay in case of power failure, typically 60 ms
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB202MSK Specs
