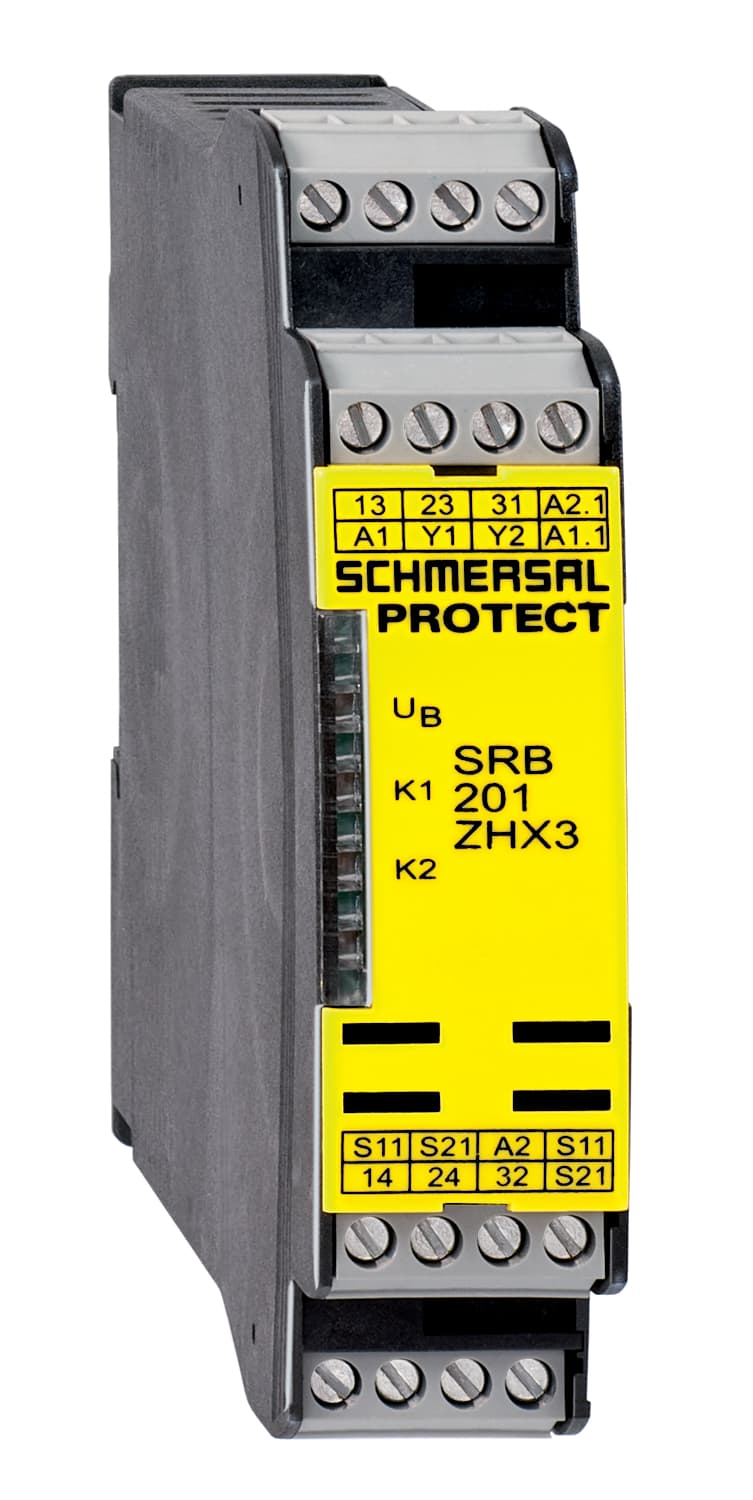

SRB201ZHX3 24VDC Schmersal Electronic Components
Part#:SRB201ZHX3 24VDC
Manufacturer:Schmersal
Alt. Part#:101182968
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Two-hand operator inputs; Monitoring two-hand control panels to EN ISO 13851; 2 safety contacts, STOP 0; 1 Signalling output
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB201ZHX3 24VDC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 220 g
- Material of the contacts, electrical AgSn0. self-cleaning, positive drive
- Mechanical life, minimum 10,000,000 Operations
- Degree of protection of the mounting space IP54
- Storage and transport temperature, maximum +85 °C
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -15% / +20%, residual ripple max. 10 %
- Rated control voltage at DC, maximum 28.8 VDC
- Pull-in delay at RESET, typically 20 ms
- Feedback circuit Yes
- Number of auxiliary contacts 1
- Mounting Snaps onto standard DIN rail to EN 60715
- Ambient temperature, minimum -25 °C
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Note (Contact resistance) in new state
- Pull-in delay at automatic start, maximum, typically 100 ms
- Conduction resistance, maximum 40 Ω
- Short-circuit recognition Yes
- Climatic stress EN 60068-2-78
- Number of openers 2
- Height 100 mm
- Width 22.5 mm
- Restistance to shock 30 g / 11 ms
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Voltage, Utilisation category DC13 24 VDC
- Electronic Fuse Yes
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Cable section, minimum 0.25 mm²
- Degree of protection of the enclosure IP40
- Frequency range 50 Hz, 60 Hz
- Drop-out delay in case of emergency, typically 20 ms
- Switching capacity, maximum 2 A
- Wire breakage detection Yes
- Number of LEDs 3
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of clips or terminals IP20
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Contact resistance, maximum 0.1 Ω
- Current, Utilisation category DC13 6 A
- Stop-Category 0
- Integral System Diagnostics, status Yes
- Terminal designations IEC/EN 60947-1
- Ambient temperature, maximum +60 °C
- Degree of pollution to IEC/EN 60664-1 2
- Electrical power consumption 1.5 W
- Voltage, Utilisation category AC15 230 VAC
- Automatic reset function Yes
- Number of safety contacts 2
- Depth 121 mm
- Storage and transport temperature, minimum -40 °C
- Overvoltage category III
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Current, Utilisation category AC-15 6 A
- EMC rating EMC-Directive
- Cable section, maximum 2.5 mm²
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- Drop-out delay in case of power failure, typically 80 ms
- Tightening torque of Clips 0.6 Nm
- Earth connection detection Yes
- Rated impulse withstand voltage Uimp 4 kV
- Switching capacity, minimum 10 mA
- Number of shutters 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB201ZHX3 24VDC Specs
1-year warranty
