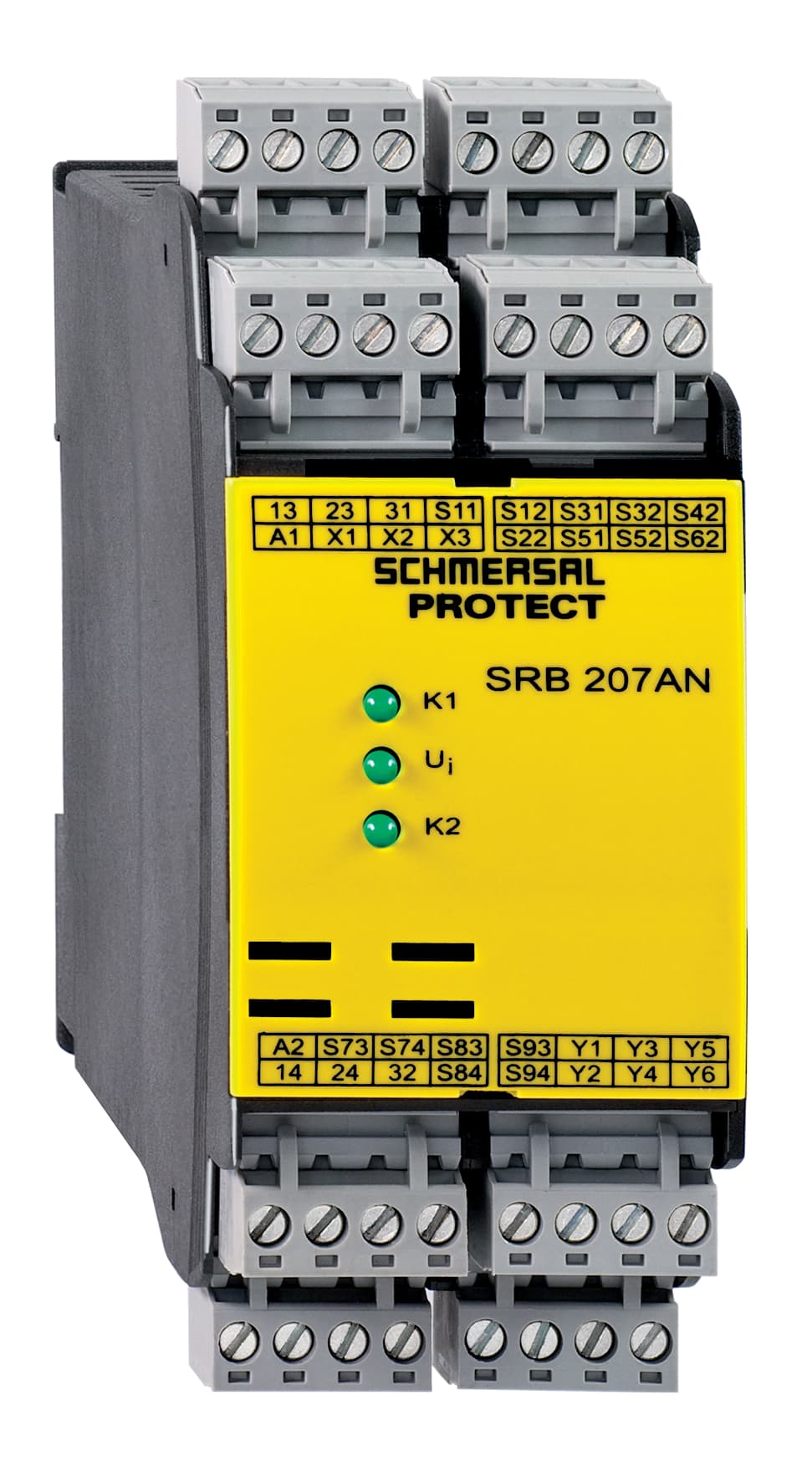

SRB207AN 24V Schmersal Electronic Components
Part#:SRB207AN 24V
Manufacturer:Schmersal
Alt. Part#:101170117
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 0; Suitable for the signal processing of outputs with contact sensors; 2 safety contacts, STOP 0; 6 Signalling outputs; Multi-evaluation of up to 6 safety guards; Suitable for the signal processing of outputs with
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB207AN 24V Schmersal price in the box on the right side or send a quick quote.
Product Details
- Electronic Fuse Yes
- Automatic reset function Yes
- Terminal Connector Screw connection, rigid or flexible
- Depth 121 mm
- Ambient temperature, maximum +45 °C
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Stop-Category 0
- Removable Terminals Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Degree of protection of the enclosure IP40
- Storage and transport temperature, maximum +85 °C
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Earth connection detection Yes
- Height 100 mm
- Cable section, minimum 0.25 mm²
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Wire breakage detection Yes
- Integral System Diagnostics, status Yes
- Mechanical life, minimum 10,000,000 Operations
- Tightening torque of Clips 0.6 Nm
- Degree of protection of clips or terminals IP20
- Frequency range 50 Hz, 60 Hz
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Reset edge detection Yes
- Number of LEDs 3
- Terminal designations IEC/EN 60947-1
- Degree of protection of the mounting space IP54
- Degree of pollution to IEC/EN 60664-1 2
- Electrical power consumption 3 W
- Voltage, Utilisation category DC13 24 VDC
- Gross weight 480 g
- Number of auxiliary contacts 1, 7
- Cable section, maximum 2.5 mm²
- Number of signalling outputs 6
- Ambient temperature, minimum -25 °C
- Overvoltage category III
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Climatic stress EN 60068-2-78
- Feedback circuit Yes
- Number of safety contacts 2
- Width 45 mm
- Storage and transport temperature, minimum -40 °C
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Note (Contact resistance) in new state
- Short-circuit recognition Yes
- Start input Yes
- Number of Snap-in contacts, minimum 1
- Restistance to shock 30 g / 11 ms
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -15%/+20%, residual ripple max. 10%
- Drop-out delay in case of power failure, typically 80 ms
- Material of the contacts, electrical AgSn0. self-cleaning, positive drive
- Number of Snap-in contacts, maximum 6
- Rated impulse withstand voltage Uimp 4 kV
- Contact resistance, maximum 0.1 Ω
- Pull-in delay at RESET, typically 20 ms
- Switching capacity, maximum 2 A
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- Drop-out delay in case of emergency, typically 20 ms
- Current, Utilisation category DC13 6 A
- Conduction resistance, maximum 40 Ω
- Rated control voltage at DC, maximum 28.8 VDC
- Current, Utilisation category AC-15 6 A
- Current, Utilisation category DC12 0.1 A
- Voltage, Utilisation category AC15 230 VAC
- Pull-in delay at automatic start, maximum, typically 100 ms
- Switching capacity, minimum 10 mA
- EMC rating EMC-Directive
- Voltage, Utilisation category DC12 24 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB207AN 24V Specs
1-year warranty
