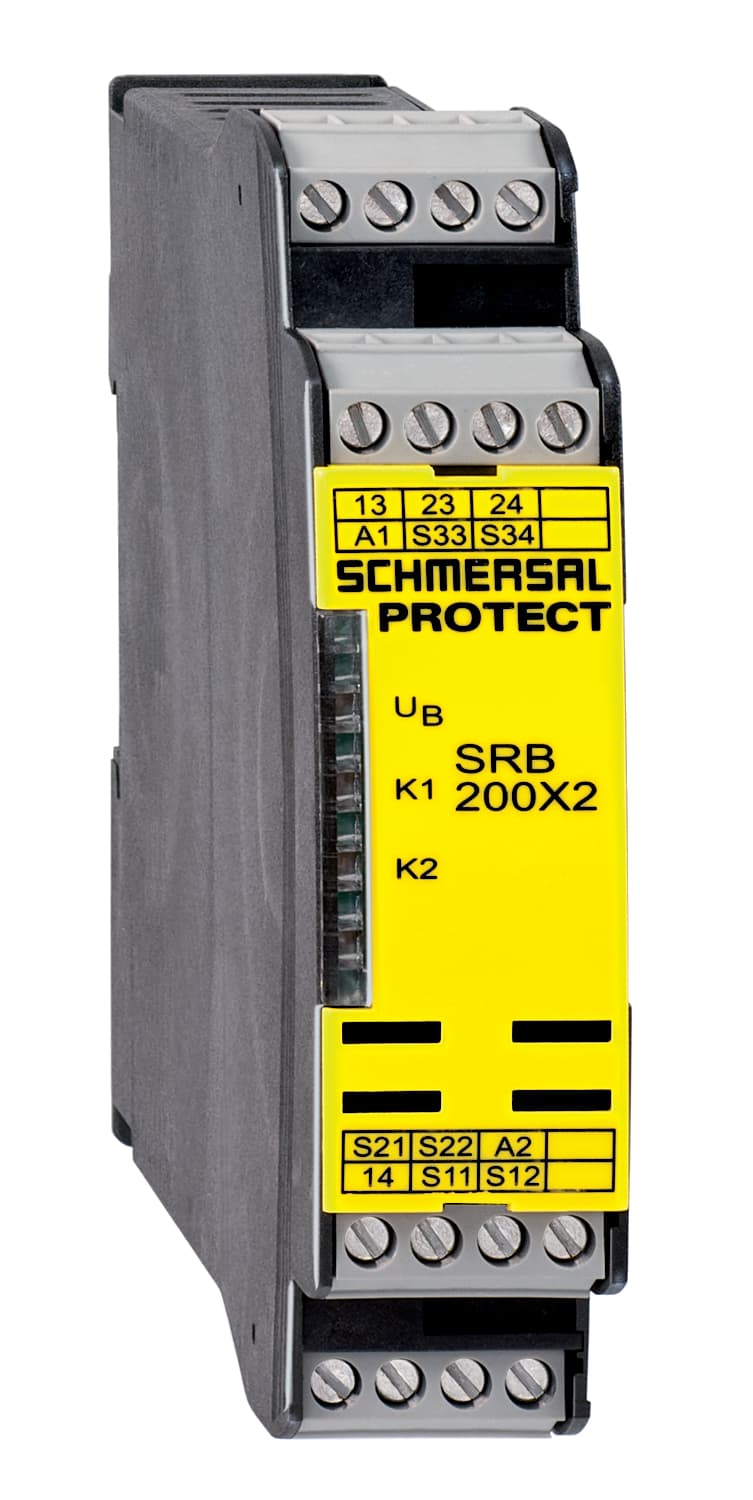

SRB200X2 Schmersal Electronic Components
Part#:SRB200X2
Manufacturer:Schmersal
Alt. Part#:101181911
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 0; 2 safety contacts, STOP 0; Suitable for the signal processing of outputs with contact sensors
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB200X2 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Stop-Category 0
- Number of LEDs 3
- Tightening torque of Clips 0.6 Nm
- Rated impulse withstand voltage Uimp 4 kV
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- ON delay at automatic start Adjustable
- Switching capacity, minimum 10 VDC
- Material of the contacts, electrical AgSn0. self-cleaning, positive drive
- Short-circuit recognition Yes
- Mechanical life, minimum 10,000,000 Operations
- Depth 121 mm
- Ambient temperature, maximum +60 °C
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Note (Contact resistance) in new state
- Voltage, Utilisation category AC15 250 VAC
- Wire breakage detection Yes
- Number of openers 2
- Number of safety contacts 2
- Cable section, maximum 2.5 mm²
- Storage and transport temperature, minimum -40 °C
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -15%/+20%, residual ripple max. 10%
- Contact resistance, maximum 0.1 Ω
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Mounting Snaps onto standard DIN rail to EN 60715
- Height 100 mm
- Overvoltage category III
- Rated control voltage at DC, maximum 28.8 VDC
- Electrical power consumption 3 VA
- Pull-in delay at RESET, typically 20 ms
- Switching capacity, maximum 250 VAC
- Electronic Fuse Yes
- Start input Yes
- Terminal Connector Screw connection, rigid or flexible
- Width 22.5 mm
- Storage and transport temperature, maximum +85 °C
- Degree of pollution to IEC/EN 60664-1 2
- Current, Utilisation category AC-15 6 A
- Conduction resistance, maximum 40 Ω
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Earth connection detection Yes
- Cable section, minimum 0.25 mm²
- Degree of protection of the mounting space IP54
- Restistance to shock 30 g / 11 ms
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Drop-out delay in case of power failure, typically 80 ms
- Voltage, Utilisation category DC13 24 VDC
- EMC rating EMC-Directive
- Climatic stress EN 60068-2-78
- Reset edge detection Yes
- Terminal designations IEC/EN 60947-1
- Ambient temperature, minimum -25 °C
- Resistance to vibrations to EN 60068-2-6 10 ... 55 Hz, Amplitude 0.35 mm
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Drop-out delay in case of emergency, typically 20 ms
- Current, Utilisation category DC13 6 A
- Gross weight 230 g
- Feedback circuit Yes
- Integral System Diagnostics, status Yes
- Degree of protection of the enclosure IP40
- Degree of protection of clips or terminals IP20
- Frequency range 50 Hz, 60 Hz
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Pull-in delay at automatic start, maximum, typically 100 ms
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB200X2 Specs
1-year warranty
