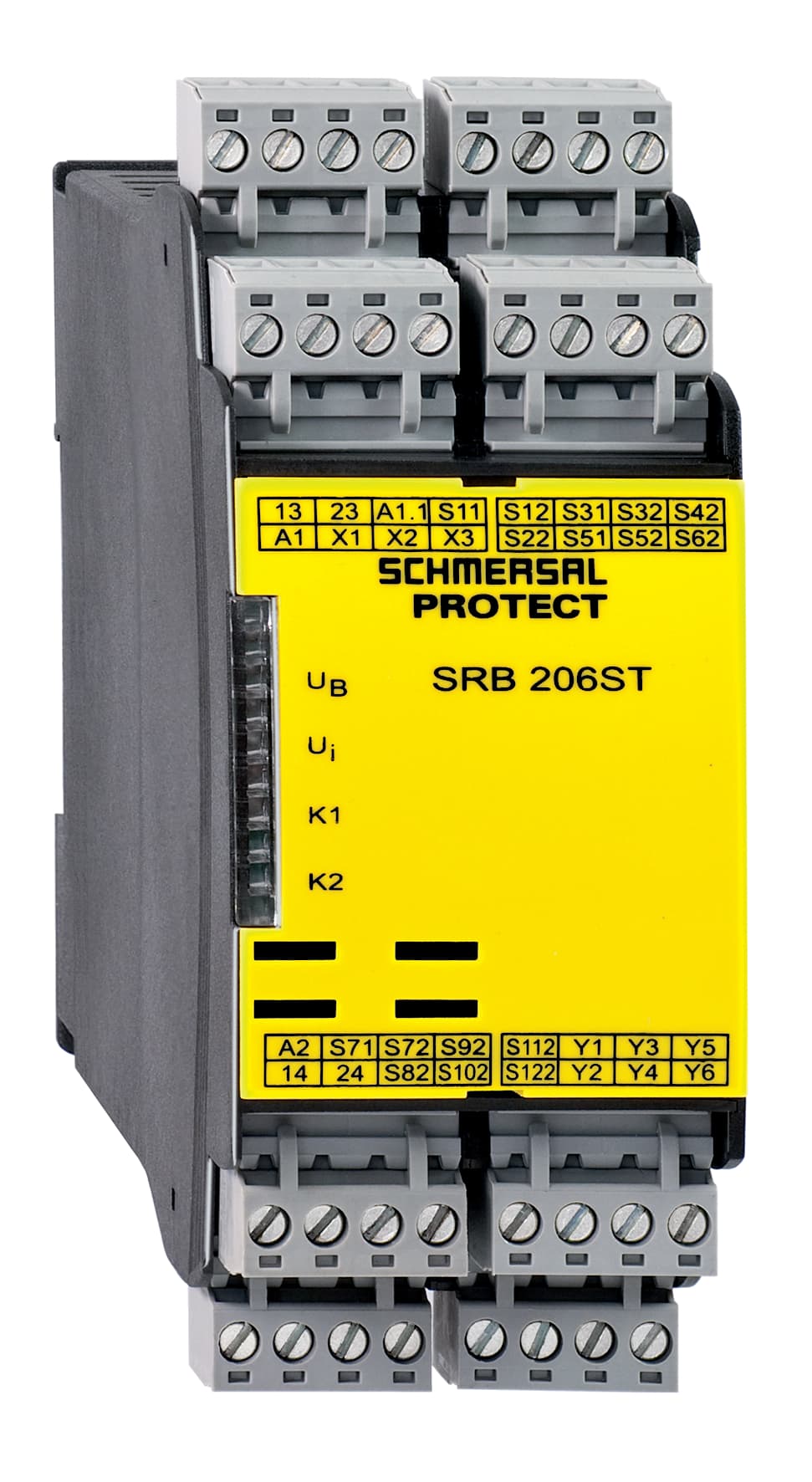

SRB206ST-230V Schmersal Electronic Components
Part#:SRB206ST-230V
Manufacturer:Schmersal
Alt. Part#:101174014
Product Lifecycle:Active
Get a quick Quote!
Guard door monitors and Safety control modules for Emergency Stop applications (Archive); 2 safety contacts, STOP 0; 6 Signalling outputs; Multi-evaluation of up to 6 safety guards; Suitable for the signal processing of outputs with contact sensors
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB206ST-230V Schmersal price in the box on the right side or send a quick quote.
Product Details
- Feedback circuit Yes
- Automatic reset function Yes
- Climatic stress EN 60068-2-78
- Number of LEDs 4
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Number of safety contacts 2
- Number of auxiliary contacts 6
- Number of signalling outputs 6
- Terminal Connector Screw connection, rigid or flexible
- Terminal designations IEC/EN 60947-1
- Number of openers 12
- Height 100 mm
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Integral System Diagnostics, status Yes
- Stop-Category 0
- Start input Yes
- Earth connection detection Yes
- Material of the contacts, electrical AgCdO, self-cleaning, positive drive
- Electronic Fuse Yes
- Gross weight 320 g
- Removable Terminals Yes
- Wire breakage detection Yes
- Reset edge detection Yes
- Mechanical life, minimum 10,000,000 Operations
- Mounting Snaps onto standard DIN rail to EN 60715
- Depth 121 mm
- Storage and transport temperature, maximum +85 °C
- Rated AC voltage for controls, 60 Hz, minimum 48 VAC
- Electrical power consumption 6.8 W
- Degree of protection of the mounting space IP54
- Storage and transport temperature, minimum -40 °C
- Degree of pollution to VDE 0110 2
- Degree of protection of the enclosure IP40
- Restistance to shock 30 g / 11 ms
- Note (Contact resistance) in new state
- Utilisation category AC-15 230 VAC
- Degree of protection of clips or terminals IP20
- Overvoltage category III
- Rated control voltage at AC 60 Hz, maximum 240 VAC
- EMC rating EMC-Directive
- Width 45 mm
- Rated impulse withstand voltage Uimp 4 kV
- Rated AC voltage for controls, 50 Hz, minimum 48 VAC
- Contact resistance, maximum 0.1 Ω
- Ambient temperature, minimum -25 °C
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated control voltage at AC 50 Hz, maximum 240 VAC
- Ambient temperature, maximum +45 °C
- Operating current 275 mA
- Drop-out delay in case of emergency stop, maximum 30 ms
- Rated operating voltage 48 ... 240 VAC
- Utilisation category DC-13 6 A
- Pull-in delay at RESET, typically 50 ms
- Frequency range 50 Hz, 60 Hz
- Conduction resistance, maximum 40 Ω
- Tightening torque of Clips 0.6 Nm
- Cable section, maximum 2.5 mm²
- Cable section, minimum 0.25 mm²
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB206ST-230V Specs
