M9F43225 Schneider Electric Industrial Automation Components
Part#:M9F43225
Manufacturer:Schneider Electric
Product Lifecycle:Active
In-stock parts: 119
Jan 7, 2026

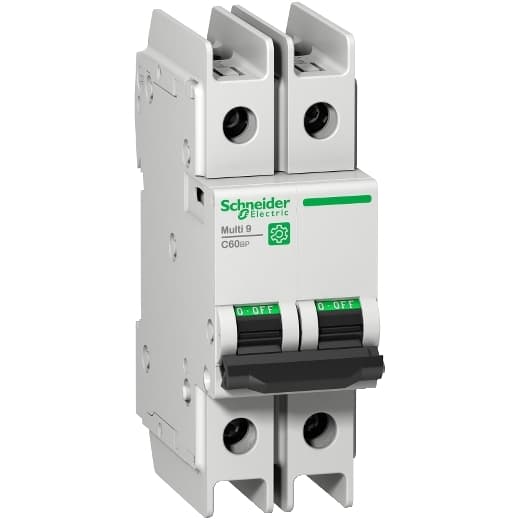

Schneider Electric M9F43225 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed with a 2 Pole configuration and a rated current of 25A. It features a rated insulation voltage (Ui) of 500 V, a DC rated voltage of 60Vdc, and an AC rated voltage of 240 V phase-to-neutral and 415 V phase-to-phase. The M9F43225 has a rated impulse voltage (Uimp) of 6 kV and offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. Both poles are protected, and it operates with a D tripping curve.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F43225 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Width 1.42 in (36 mm)
- Mounting Support DIN rail
- Line Rated Current 25 A 77 °F (25 °C) EN/IEC 60947-2
- Product Or Component Type Miniature circuit-breaker
- Curve Code D
- Contact Position Indicator Yes
- Electrical Durability 10000 cycles
- Product Name Multi 9 C60
- Mounting Mode Clip-on
- Device Short Name C60BP
- Suitability For Isolation Yes EN/IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- 9 Mm Pitches 4
- Range Multi 9
- Trip Unit Technology Thermal-magnetic
- Color Gray
- Device Application Distribution
- Control Type Toggle
- Height 4.06 in (103 mm)
- Poles Description 2P
- Local Signalling ON/OFF indication
- Provision For Padlocking Padlockable
- Number Of Protected Poles 2
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Mechanical Durability 20000 cycles
- Depth 2.83 in (72 mm)
- Earth-Leakage Protection Without
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- Network Type AC DC
- Magnetic Tripping Limit 12 x In +/- 20 % AC 17 x In +/- 20 % DC
- Breaking Capacity 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- Product Certifications IEC CCC CSA UL
- Standards EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
- [Ics] Rated Service Breaking Capacity 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
