M9F43230 Schneider Electric Industrial Automation Components
Part#:M9F43230
Manufacturer:Schneider Electric
Product Lifecycle:Active
In-stock parts: 22
Jan 7, 2026

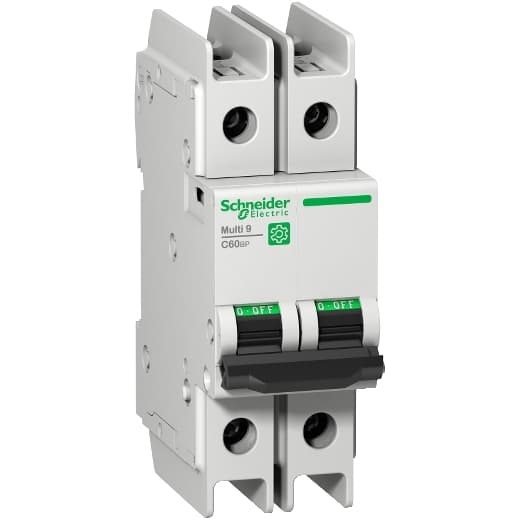

Schneider Electric M9F43230 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed with a 2-pole configuration and a rated current of 30A. It features a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC rated voltage of 240V phase-to-neutral and 415V phase-to-phase. The M9F43230 has a rated impulse voltage (Uimp) of 6kV and offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. Both poles are protected, and it is equipped with a D tripping curve. This MCB is compliant with UL489 standards.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F43230 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Network Type DC AC
- Poles Description 2P
- Line Rated Current 30 A 77 °F (25 °C) EN/IEC 60947-2
- Trip Unit Technology Thermal-magnetic
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Product Name Multi 9 C60
- Mounting Support DIN rail
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Device Short Name C60BP
- 9 Mm Pitches 4
- Product Or Component Type Miniature circuit-breaker
- Contact Position Indicator Yes
- Color Gray
- Earth-Leakage Protection Without
- Device Application Distribution
- Suitability For Isolation Yes EN/IEC 60947-2
- Local Signalling ON/OFF indication
- Depth 2.83 in (72 mm)
- Number Of Protected Poles 2
- Curve Code D
- Control Type Toggle
- Mechanical Durability 20000 cycles
- Range Multi 9
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Tightening Torque 30.98 lbf.in (3.5 N.m) top or bottom
- Width 1.42 in (36 mm)
- Provision For Padlocking Padlockable
- Mounting Mode Clip-on
- Electrical Durability 10000 cycles
- Height 4.06 in (103 mm)
- Magnetic Tripping Limit 12 x In +/- 20 % AC 17 x In +/- 20 % DC
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.05 in² (1…35 mm²) AWG 18...AWG 2) - rigid Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 3) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²
- Standards EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
- Product Certifications IEC CCC CSA UL
- [Ics] Rated Service Breaking Capacity 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
- Breaking Capacity 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k
