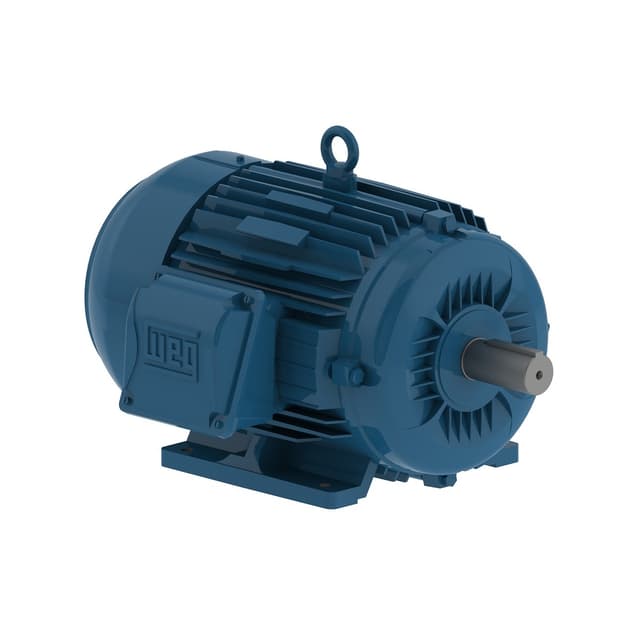

00109ET3H182T-W22 WEG AC Motors
Part#:00109ET3H182T-W22
Manufacturer:WEG
Alt. Part#:7909158033010
Product Lifecycle:Active
Get a quick Quote!

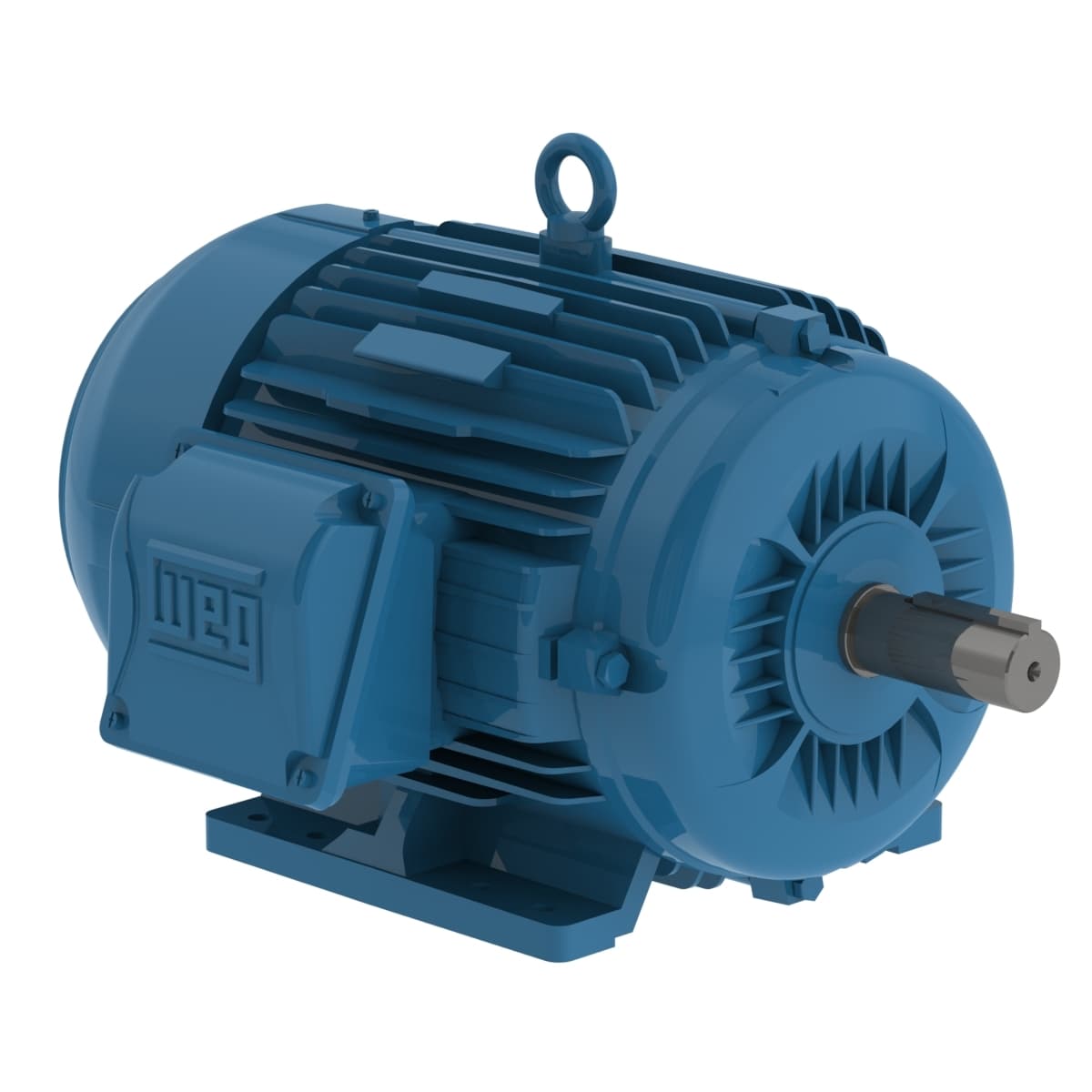

W22 NEMA Premium Efficiency 1 HP 8P 182/4T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00109ET3H182T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed880 rpm
- Number of Poles8 Pole
- Voltage575 V
- Flange TypeWithout
- Output 1 HP (0.75 kW)
- Rated speed 880 rpm
- Temperature rise 80 K
- Standard NEMA MG-1
- Frame 182/4T
- Insulation Class F
- Degree of Protection IP55
- Frequency 60 Hz
- Design B
- Mounting F-1
- Rated torque 5.97 ft.lb
- LRC 6.3x(Code N)
- Service factor 1.25
- Slip 2.22 %
- No load current 1.60 A
- Rotation¹ Both (CW and CCW)
- Flange Without
- Rated current 1.85 A
- Locked rotor time 39s (cold) 22s (hot)
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Output rating 1 HP
- Number of Poles 8
- Breakdown torque 350 %
- Approx. weight³ 80.9 lb
- Enclosure IC411 - TEFC
- Rated voltage 575 V
- Locked rotor torque 300 %
- Duty Cycle Cont.(S1)
- Noise level² 50.0 dB(A)
- Terminal box¹ Left position
- L. R. Amperes 11.6 A
- Moment of inertia (J) 0.3991 sq.ft.lb
- Voltage 575 V
- Starting Method Direct On Line
- Synchronous speed 900 rpm
- Number of poles 8
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00109ET3H182T-W22 Specs
1-year warranty
