00109ST3QIE182T-W22 WEG AC Motors
Part#:00109ST3QIE182T-W22
Manufacturer:WEG
Alt. Part#:7909265635503
Product Lifecycle:Active
Get a quick Quote!

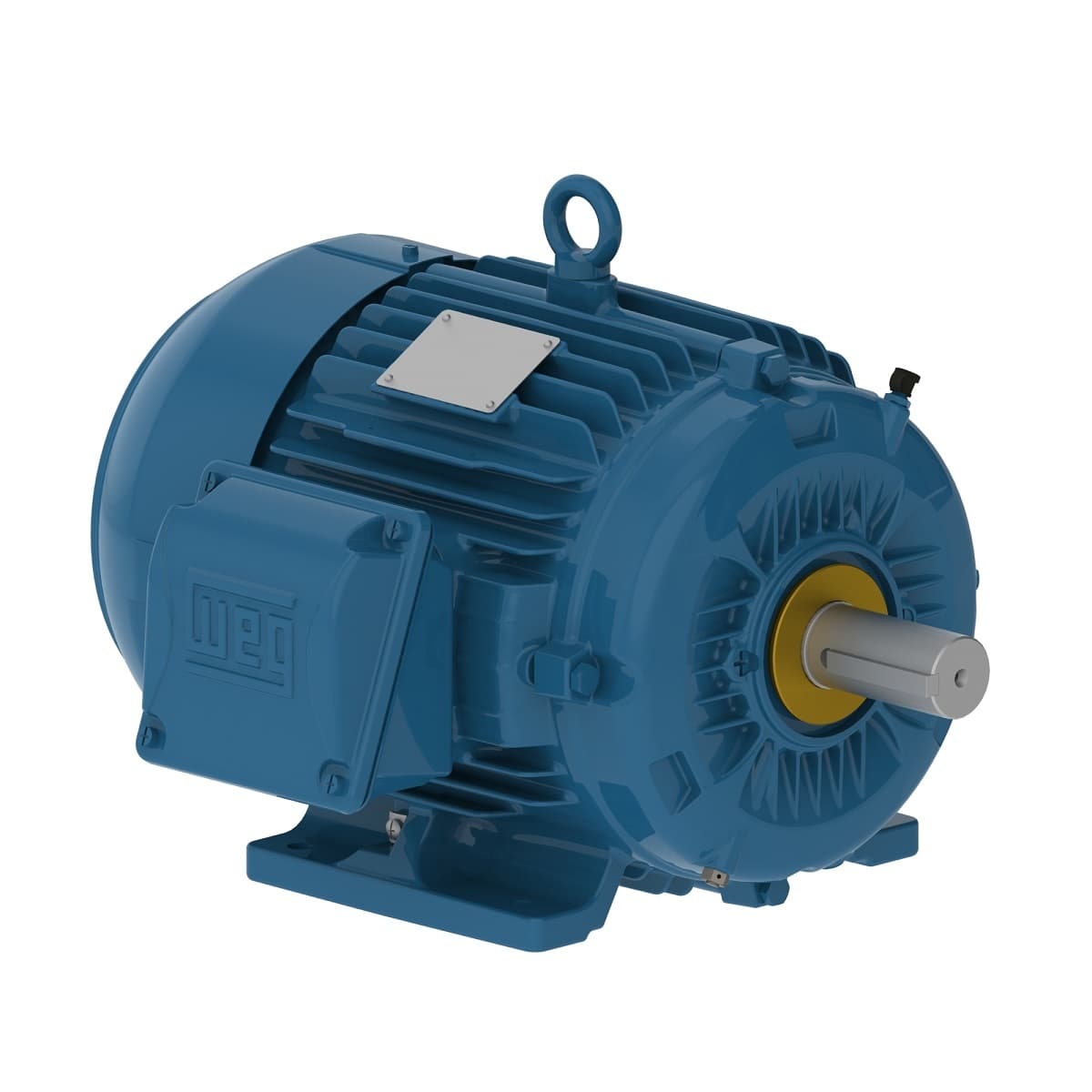

W22 IEEE 841 NEMA Premium Efficiency 1 HP 8P 182/4T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00109ST3QIE182T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed875 rpm
- Number of Poles8 Pole
- Voltage460 V
- Flange TypeWithout
- Moment of inertia (J) 0.3991 sq.ft.lb
- Degree of Protection IP56
- Output rating 1 HP
- Breakdown torque 350 %
- Service factor 1.25
- Mounting F-1
- Rated voltage 460 V
- Frequency 60 Hz
- Starting Method Direct On Line
- Noise level² 50.0 dB(A)
- L. R. Amperes 13.8 A
- Locked rotor time 39s (cold) 22s (hot)
- Temperature rise 80 K
- Flange Without
- Output 1 HP (0.75 kW)
- Locked rotor torque 300 %
- Altitude 1000 m.a.s.l.
- Approx. weight³ 95.0 lb
- Rated speed 875 rpm
- Rated torque 6.00 ft.lb
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Frame 182/4T
- LRC 6.0x(Code M)
- Insulation Class F
- Standard NEMA MG-1
- Number of Poles 8
- Duty Cycle Cont.(S1)
- Synchronous speed 900 rpm
- Slip 2.78 %
- Design B
- Ambient temperature -20°C to +40°C
- Number of poles 8
- Rated current 2.30 A
- No load current 1.70 A
- Enclosure IC411 - TEFC
- Voltage 460 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00109ST3QIE182T-W22 Specs
