00152ET3E182T-S WEG AC Motors
Part#:00152ET3E182T-S
Manufacturer:WEG
Alt. Part#:7909158532377
Product Lifecycle:Active
Get a quick Quote!

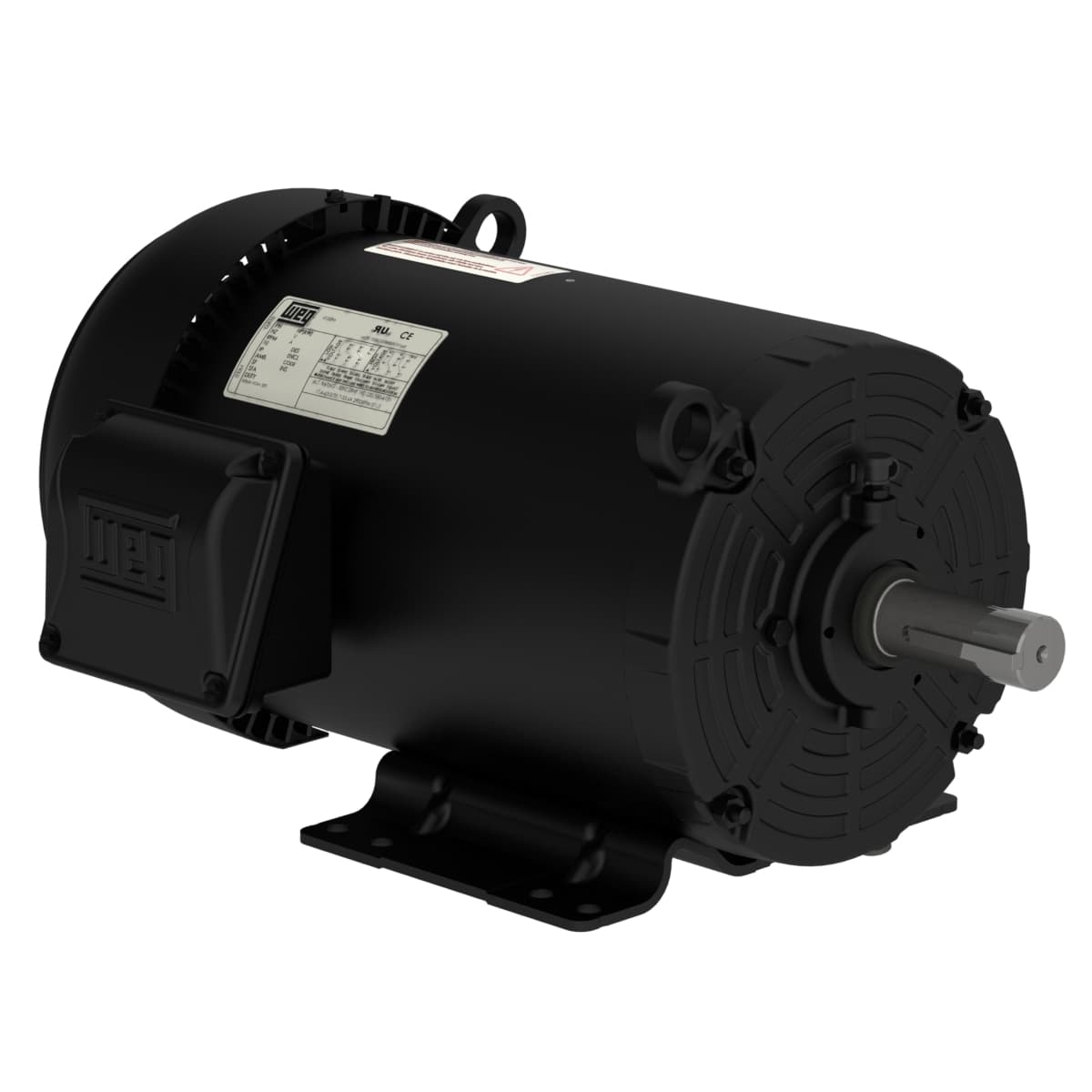

Rolled Steel NEMA Premium Efficiency 1.5 HP 6P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00152ET3E182T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed1170 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeWithout
- Output 1.5 HP (1.1 kW)
- Moment of inertia (J) 0.2800 sq.ft.lb
- Starting Method Direct On Line
- Terminal box¹ Left position
- Rated current 4.44/2.22 A
- Design B
- Noise level² 52.0 dB(A)
- Slip 2.50 %
- Temperature rise 80 K
- Standard NEMA MG-1
- Number of Poles 6
- Breakdown torque 340 %
- Service factor 1.15
- Enclosure IC411 - TEFC
- Frame 182/4T
- Locked rotor time 99s (cold) 55s (hot)
- Degree of Protection IP55
- Output rating 1.5 HP
- LRC 6.9x(Code K)
- Locked rotor torque 240 %
- Duty Cycle Cont.(S1)
- Number of poles 6
- Rated torque 6.73 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 230/460//190-220/380-415 V
- No load current 2.73/1.36 A
- Insulation Class F
- Mounting F-1
- Synchronous speed 1200 rpm
- Rated speed 1170 rpm
- L. R. Amperes 30.6/15.3 A
- Rotation¹ Both (CW and CCW)
- Flange Without
- Frequency 60 Hz
- Rated voltage 230/460 V
- Altitude 1000 m.a.s.l.
- Approx. weight³ 68.6 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00152ET3E182T-S Specs
