00158EG3EL145T-W22 WEG AC Motors
Part#:00158EG3EL145T-W22
Manufacturer:WEG
Alt. Part#:7891327886162
Product Lifecycle:Active
Get a quick Quote!

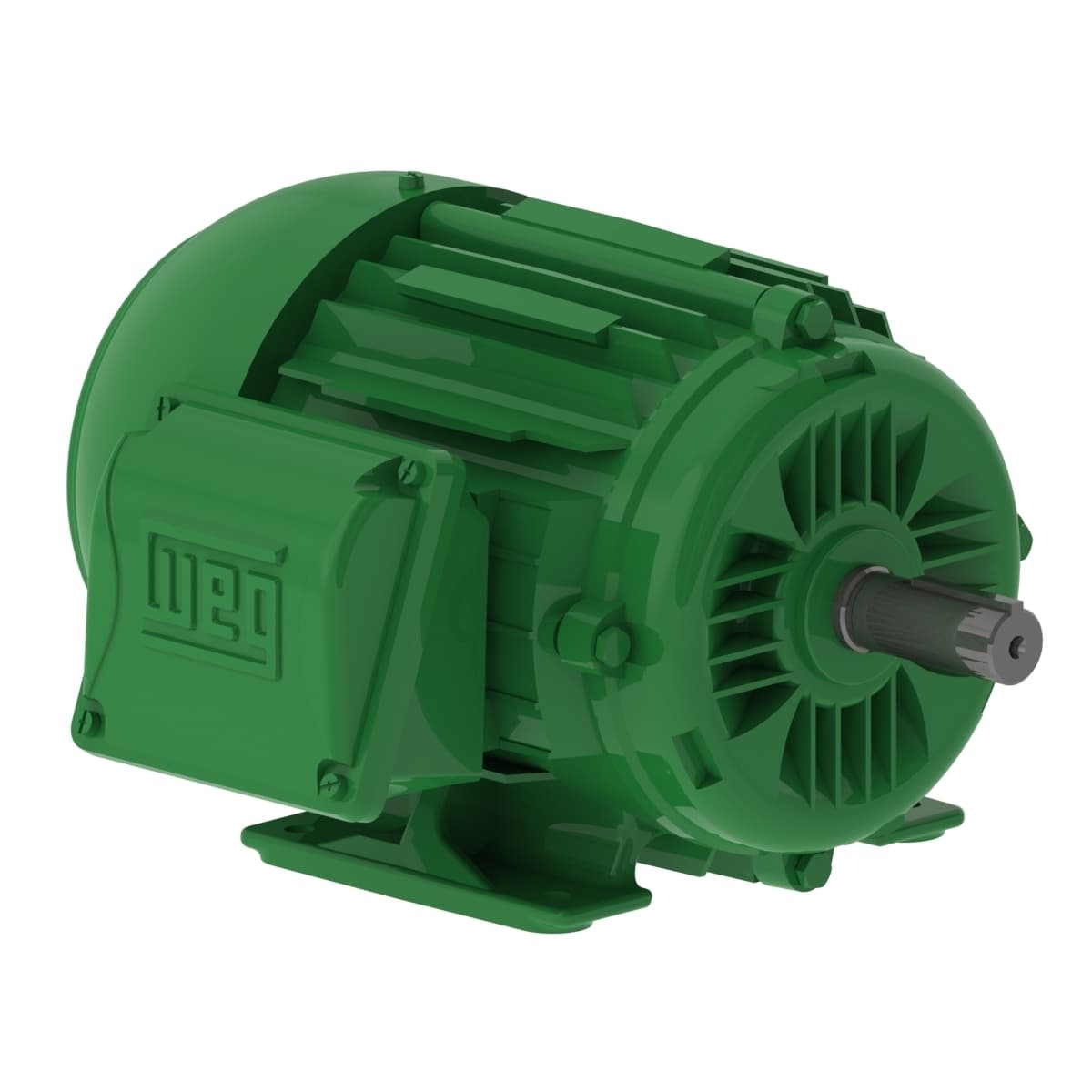

W22 Super Premium Efficiency 1.5 HP 4P L143/5T 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00158EG3EL145T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed1760 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Number of Poles 4
- Duty Cycle Cont.(S1)
- Approx. weight³ 58.7 lb
- Service factor 1.25
- Locked rotor time 36s (cold) 20s (hot)
- Temperature rise 80 K
- Voltage 208-230/460//380 V
- Rated voltage 230/460 V
- LRC 8.8x(Code L)
- Noise level² 51.0 dB(A)
- Rated speed 1760 rpm
- Locked rotor torque 280 %
- Frequency 60 Hz
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Rated current 3.86/1.93 A
- Rated torque 4.48 ft.lb
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- L. R. Amperes 34.0/17.0 A
- Moment of inertia (J) 0.1815 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output 1.5 HP (1.1 kW)
- No load current 2.20/1.10 A
- Enclosure IC411 - TEFC
- Frame L143/5T
- Breakdown torque 340 %
- Design A
- Synchronous speed 1800 rpm
- Slip 2.22 %
- Starting Method Direct On Line
- Mounting F-1
- Degree of Protection IP55
- Flange Without
- Terminal box¹ Left position
- Output rating 1.5 HP
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00158EG3EL145T-W22 Specs
